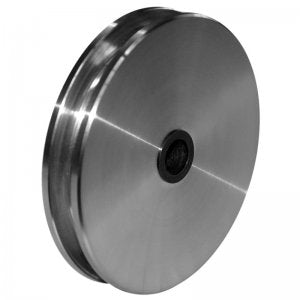

Stainless Steel Sheaves with Plastic Bushing (Model No. 1300)
Pulley / Sheave made of grade 1.4305 stainless steel, with maintenance-free plastic bushing (E10 tolerance bore).
Range of pulley capacity from 100kg up to 1500kg
Range of pulley diameter from 50mm up to 200mm
Please note, these products have a lead-time of around 3 to 4 weeks from order date if not in stock in our UK warehouse. Please email your enquiry to sales@rigginguk.co.uk.
Spec
SKU
|
|
182-1300-50 |
182-1300-75 |
182-1300-100
|
182-1300-125 |
182-1300-150 |
182-1300-200 |
Sheave External Ø
|
mm
|
50
|
75 |
100 |
125 |
150 |
200 |
Groove Base Ø
|
mm
|
38 |
59 |
80 |
100 |
120 |
166 |
Groove Radius
|
mm
|
2.7 |
3.7 |
4.8 |
6 |
7 |
8 |
Groove Depth
|
mm
|
6 |
8 |
10 |
12 |
15 |
17 |
Rim Width
|
mm
|
12 |
18 |
22 |
22 |
27 |
28 |
Bore for Bolt
|
mm
|
10 |
12 |
16 |
16 |
20 |
30 |
Hub Length
|
mm
|
14 |
20 |
24 |
24 |
30 |
32 |
Hub Ø |
mm |
18 |
20 |
24 |
24 |
28 |
42 |
Rope Ø max.
|
mm |
5 |
7 |
9 |
11 |
13 |
15 |
Load Capacity (in kg).
|
kg
|
100 |
200 |
300 |
500 |
750 |
1500 |
Weight (in kg) approx.
|
kg
|
0.2 |
0.65 |
1.4 |
2.1 |
3.75 |
6.9 |
All dimensions in mm.
