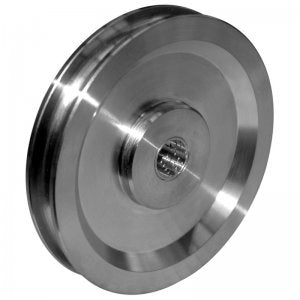

Stainless Steel Sheaves with Self Lubricating Bushing (Model No. 1302)
Stainless pulleys made of grade 1.4301 stainless steel, turned groove, with self-lubricating bushing.
Range of pulley capacity from 100kg up to 750kg
Range of pulley diameter from 50mm up to 150mm
Please note, these products have a lead-time of around 3 weeks from order date if not in stock in our UK warehouse

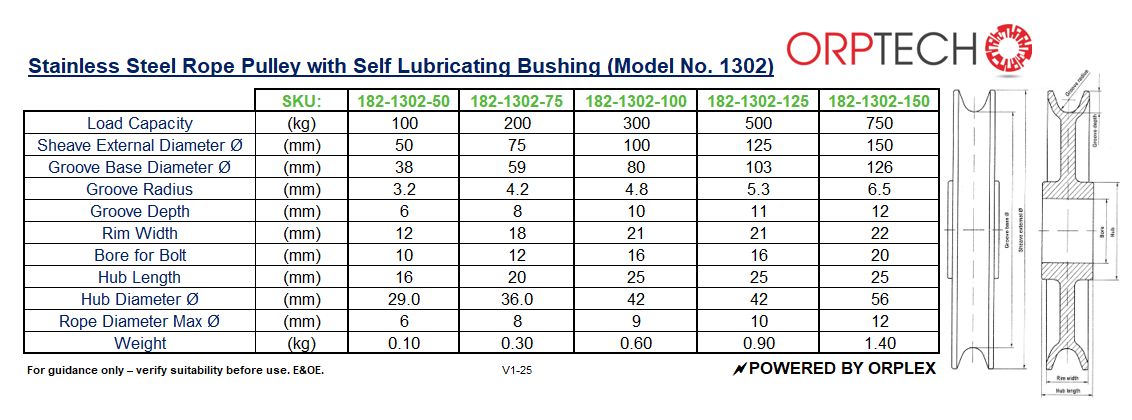

Spec
SKU
|
|
182-1302-50 |
182-1302-75 |
182-1302-100
|
182-1302-125 |
182-1302-150 |
Sheave External Ø
|
mm
|
50
|
75 |
100 |
125 |
150 |
Groove Base Ø
|
mm
|
38 |
59 |
80 |
103 |
126 |
Groove Radius
|
mm
|
3.2
|
4.2
|
4.8
|
5.3 |
6.5 |
Groove Depth
|
mm
|
6 |
8 |
10 |
11 |
12 |
Rim Width
|
mm
|
12 |
18 |
21 |
21 |
22 |
Bore for Bolt
|
mm
|
10 |
12 |
16 |
16 |
20 |
Hub Length
|
mm
|
16 |
20 |
25 |
25 |
25
|
Hub Ø |
mm |
29
|
36 |
42
|
42 |
56
|
Rope Ø max.
|
mm |
6 |
8 |
9 |
10 |
12 |
Load Capacity (in kg).
|
kg
|
100 |
200 |
300 |
500 |
750 |
Weight (in kg) approx.
|
kg
|
0.1 |
0.3
|
0.6
|
0.9
|
1.4
|
