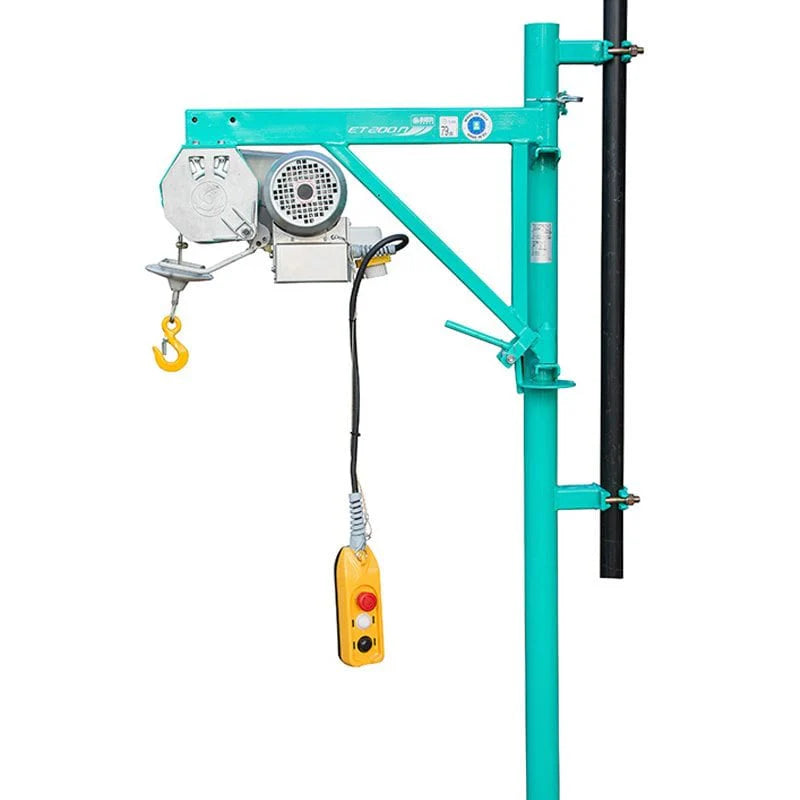

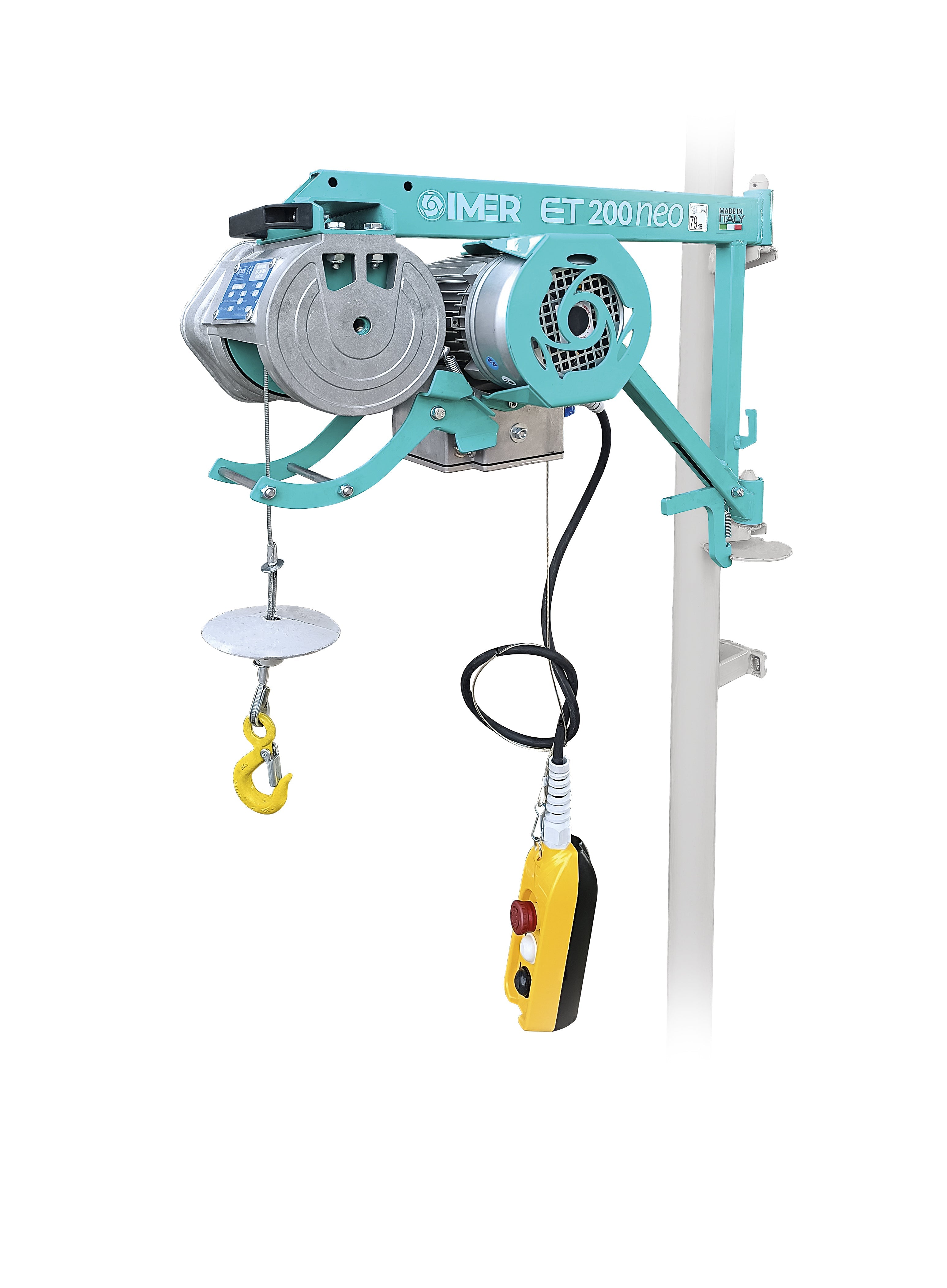

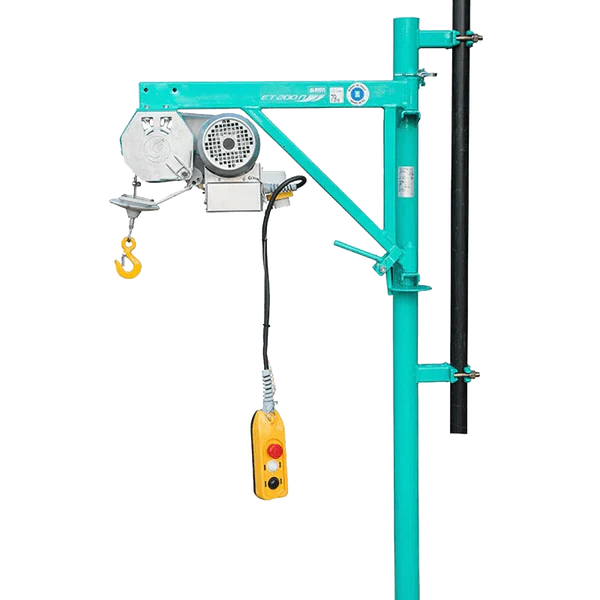

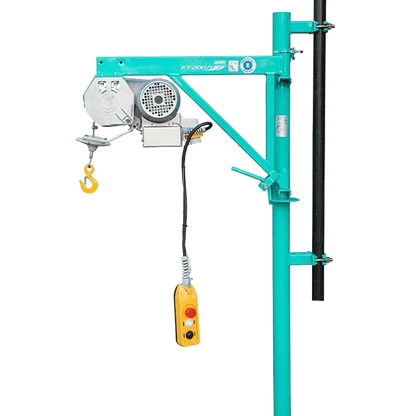

IMER ET200 Scaffold Hoist Complete Kit 200kg - 110v - 30m High Capacity
IMER Scaffold Hoists are the perfect, high-end equipment for any scaffolding job! IMER Scaffold Hoists are often used by large and small contractors alike.
This pivoting 200kg electric hoist with a lifting height of 30m is ideal for the small builder or larger contractor to lift material from the ground or lower material to the ground safely.
It has a top limit lever and micro switch to stop the hoist when it is at the top of its lift safely. The hook has a spring loaded safety catch to keep the load carrier within the hook.
The ET200 IMER Scaffold Hoist - 200Kgs is supplied with a top mounting bracket and the Scaffold connection pole from Imer is an industry favourite due to its 200 kg capacity, lifting height of 30m, and fast lifting speed of 19m/min. The hoist is a 110-volt power supply and is supplied with a waterproof 1.5m pendant and plug. These quality-made hoists are fitted with upper-limit safety devices to protect from over lifting of goods.
110v (SKU 294-1-7) or 230v (SKU 294-1-6) versions available.
3 Point Fixing Scaffold Attachment included (our SKU 294-1-5).
Available as Scaffold Hoist ONLY (without 3 Point Fixing Attachment) (our SKU 294-1-4)
Please note, lead-time can vary for this item so please email sales@rigginguk.co.uk to confirm availability before ordering.
Spec
(For Scaffold Hoist ONLY)
SKU |
|
294-1-7 |
Max Capacity |
kg |
200 |
Av. Full Load Lifting Speed |
m/min |
19 |
Max. Working Height |
m |
30 |
Steel Rope Dia. |
mm |
5 |
Rope Length |
m |
31 |
Electric Power Supply |
V /Hz |
110 / 50 ph
|
Motor Power Rate |
kW |
0.75 |
Motor Speed |
rpm |
1380 |
Running Current 230v (110v) |
A |
7.2 (14) |
Weight |
kg |
42 |
Dimensions w/l/h |
mm |
330/770/520 |
Packing Dimensions w/l/h |
mm |
350/820/500 |
