IMER TR225 Scaffold Hoist Complete Kit 200kg- 110v

IMER TR225 Scaffold Hoist Complete Kit 200kg- 110v

SKU: 294-1-15

Read More
Regular price £1,911.60
Regular price RRP Sale price TODAY'S PRICE £1,911.60

In stock

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

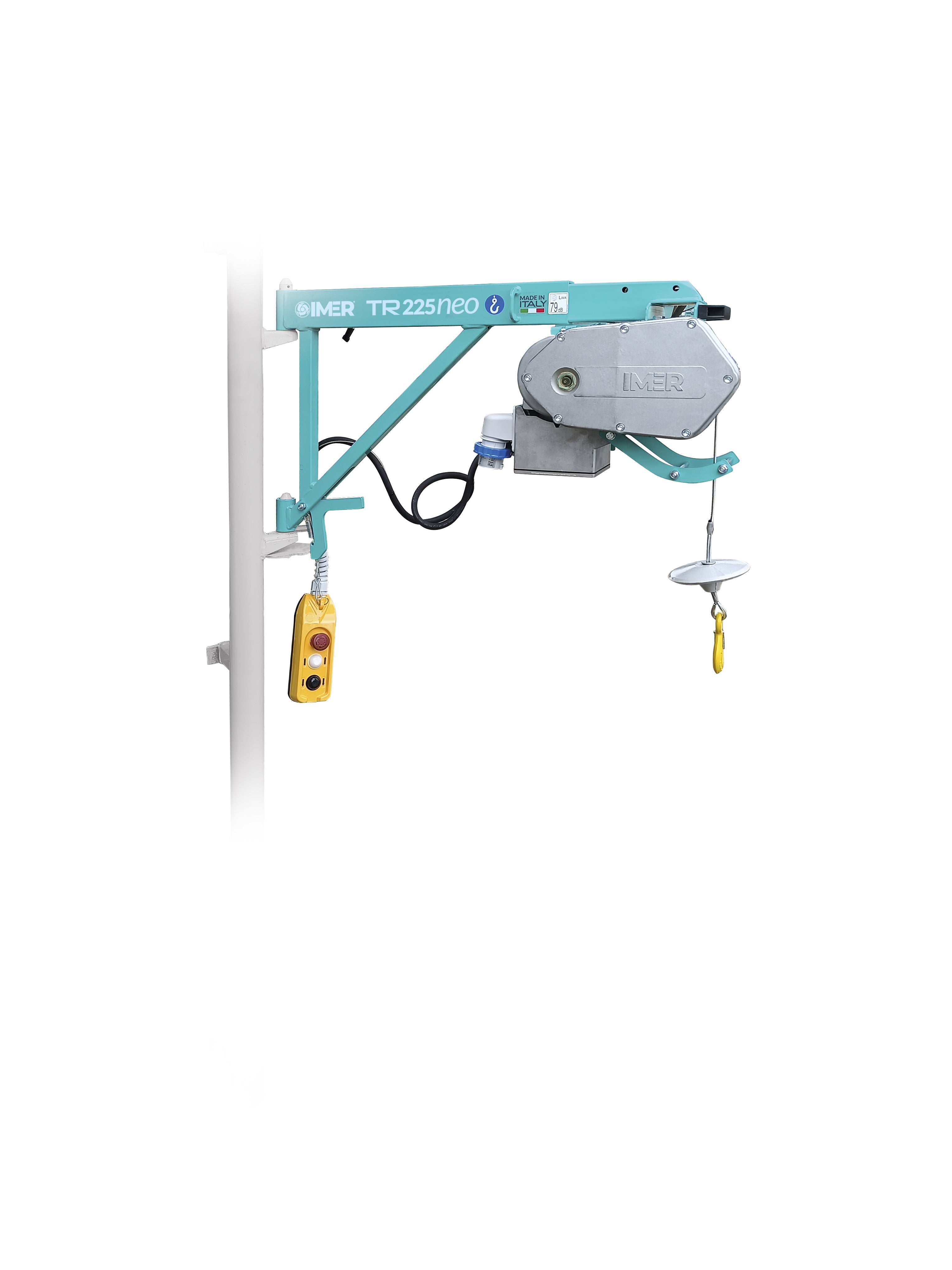

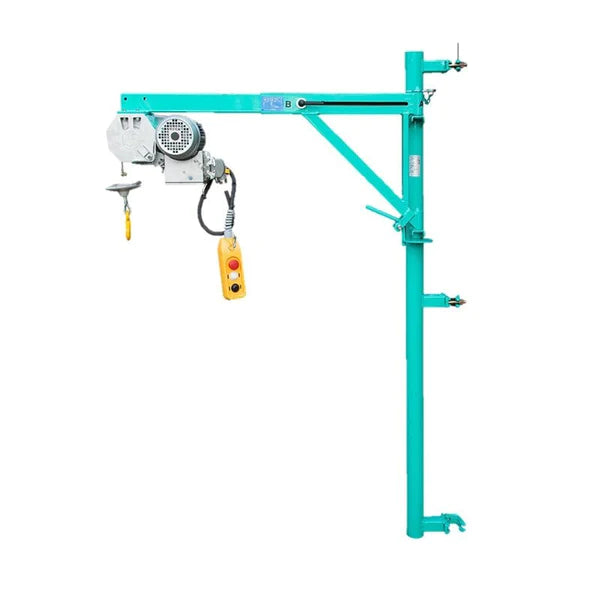

IMER TR225 Scaffold Hoist Complete Kit with Extendable Bracket 200kg - 110v - 30m High Capacity

The TR225N heavy duty IMER Scaffold Hoist is designed for use in industrial or construction applications and is the perfect choice by many of the leading rental companies.

Fitted with front loading drum – this reduces the risk of bunching when used on scaffolding that is not perfectly straight.

This Scaffold Hoist has a lifting capacity of 200kg and a lifting height of 30m.

• Work positioning lever
• IP67 plug
• 31m Wire Rope
• Motor Speed 1360/1380rpm
• Trolley available for use with a gantry
• Upper limit safety device
• Self-braking motor
• Telescopic Frame can be extended from 720mm to 1120mm
• Includes TR225N Pendant (294-1-13)

110v (294-1-15) and 230v (294-1-16) versions available.

Available to buy as Hoist ONLY (without Scaffold Attachment and Pendant): 110v (294-1-11) and 230v (294-1-12).

Spec

Spec for Scaffold Hoist ONLY.

SKU 294-1-15
Max Capacity kg 200
Av. Full Load Lifting Speed m/min 19
Max. Working Height m 30
Steel Rope Dia. mm 5
Rope Length m 31
Electric Power Supply V /Hz 110 / 50 Sph
Motor Power Rate kW 0.75
Motor Speed rpm 1380
Running Current 230v (110v) A 7.2 (14)
Weight kg 46
Dimensions w/l/h mm 330/770/520
Packing Dimensions w/l/h mm 350/820/500
