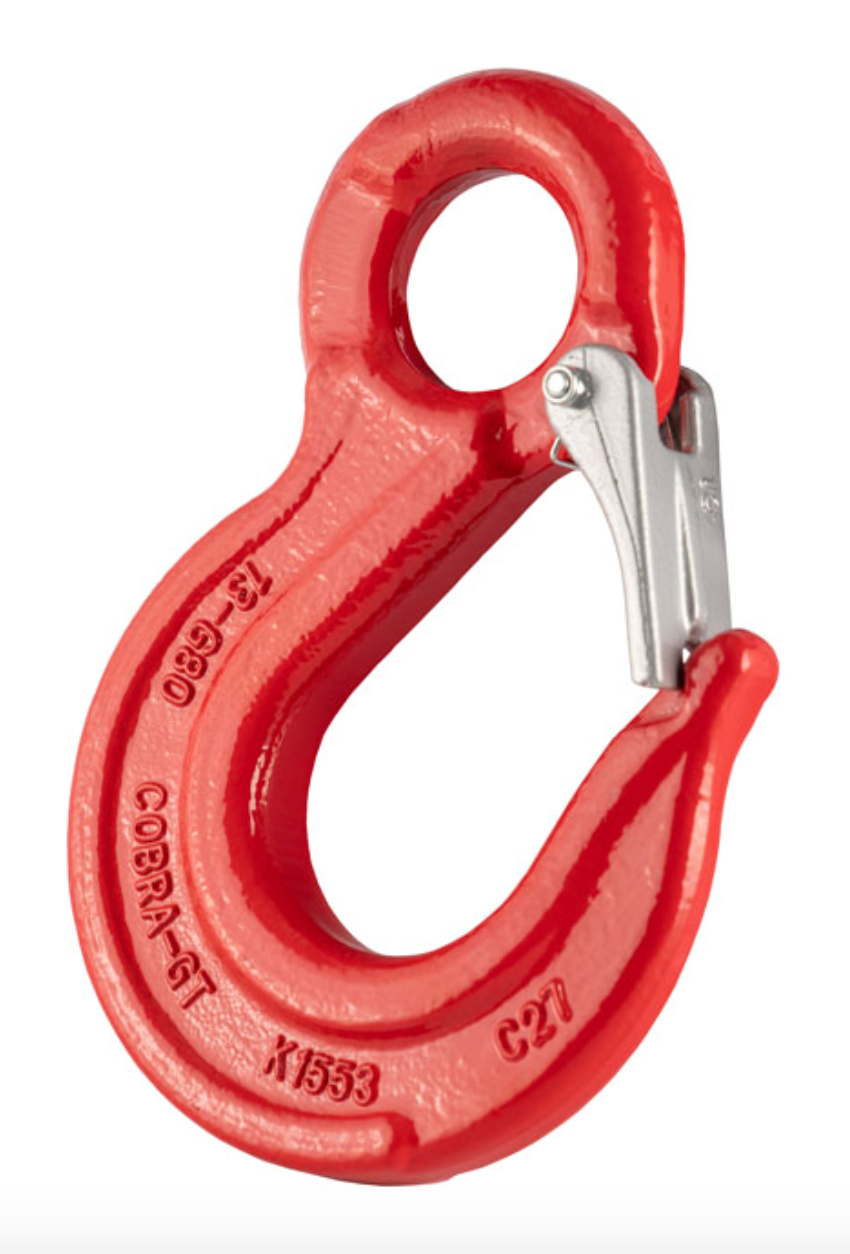

GT Cobra Grade 80 Eye Sling Hook c/w Safety Catch
- Grade 80 alloy steel, quenched and tempered.
- Red painted finish.
- Meets the W.L.L. performance requirements of BS EN 1677-2.
- Marked with material grade, manufacturers ID, size, product ID mark and traceability code.
- Certification available DoC

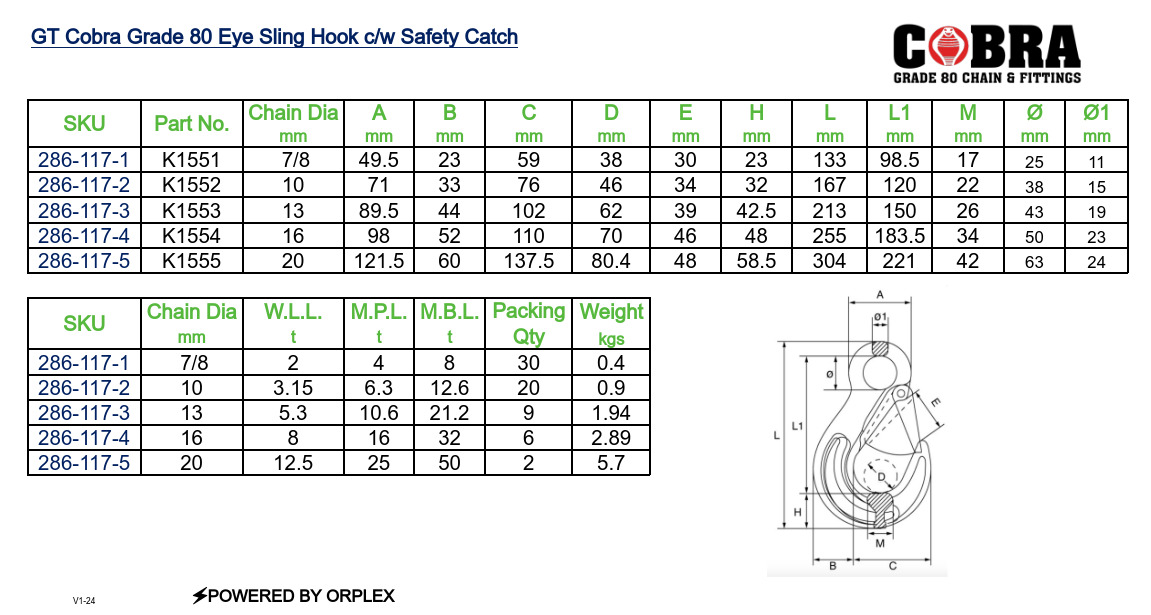

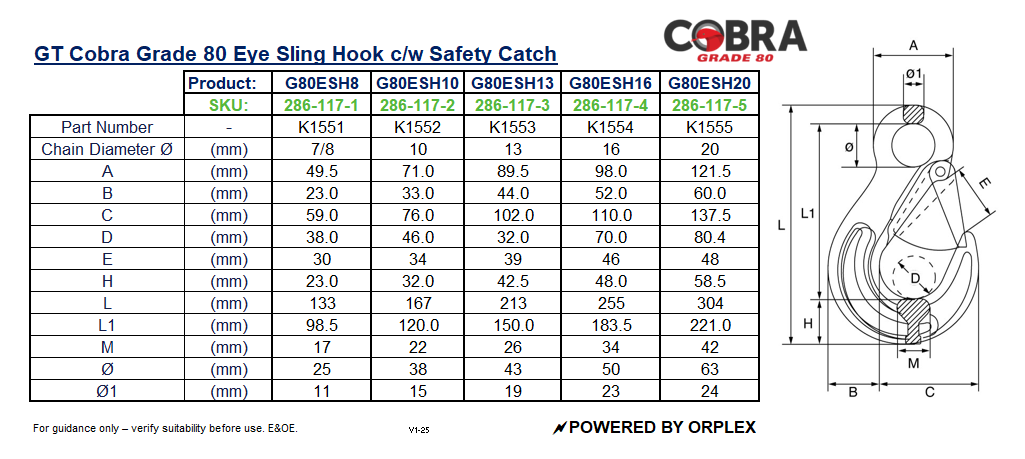

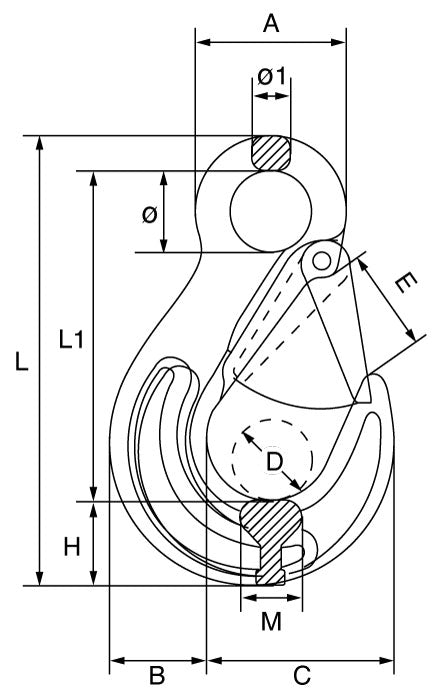

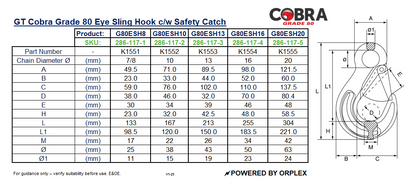

SKU
|
Part No |
Chain Dia |
A |
B |
C |
D |
E |
H |
L |
L1 |
M |
Ø |
Ø1 |
|
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
286-117-1
|
K1551 |
7/8 |
49.5 |
23 |
59 |
38 |
30 |
23 |
133 |
98.5 |
17 |
25 |
11 |
286-117-2
|
K1552 |
10 |
71 |
33 |
76 |
46 |
34 |
32 |
167 |
120 |
22 |
38 |
15 |
286-117-3
|
K1553 |
13 |
89.5 |
44 |
102 |
62 |
39 |
42.5 |
213 |
150 |
26 |
43 |
19 |
286-117-4
|
K1554 |
16 |
98 |
52 |
110 |
70 |
46 |
48 |
255 |
183.5 |
34 |
50 |
23 |
286-117-5
|
K1555 |
20 |
121.5 |
60 |
137.5 |
80.4 |
48 |
58.5 |
304 |
221 |
42 |
63 |
24 |

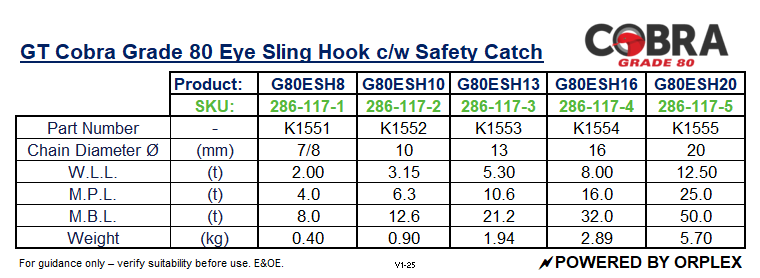

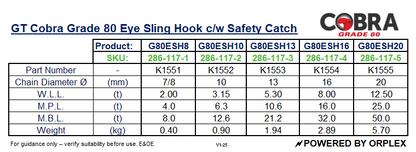

Technical Data
SKU |
Part No. |
Chain Dia |
W.L.L. |
M.P.L. |
M.B.L. |
Packing Qty |
Weight |
|
|
mm |
t |
t |
t |
|
kgs |
286-117-1 |
K1551 |
7/8 |
2 |
4 |
8 |
30 |
0.4 |
286-117-2 |
K1552 |
10 |
3.15 |
6.3 |
12.6 |
20 |
0.9 |
286-117-3 |
K1553 |
13 |
5.3 |
10.6 |
21.2 |
9 |
1.94 |
286-117-4 |
K1554 |
16 |
8 |
16 |
32 |
6 |
2.89 |
286-117-5 |
K1555 |
20 |
12.5 |
25 |
50 |
2 |
5.7 |
