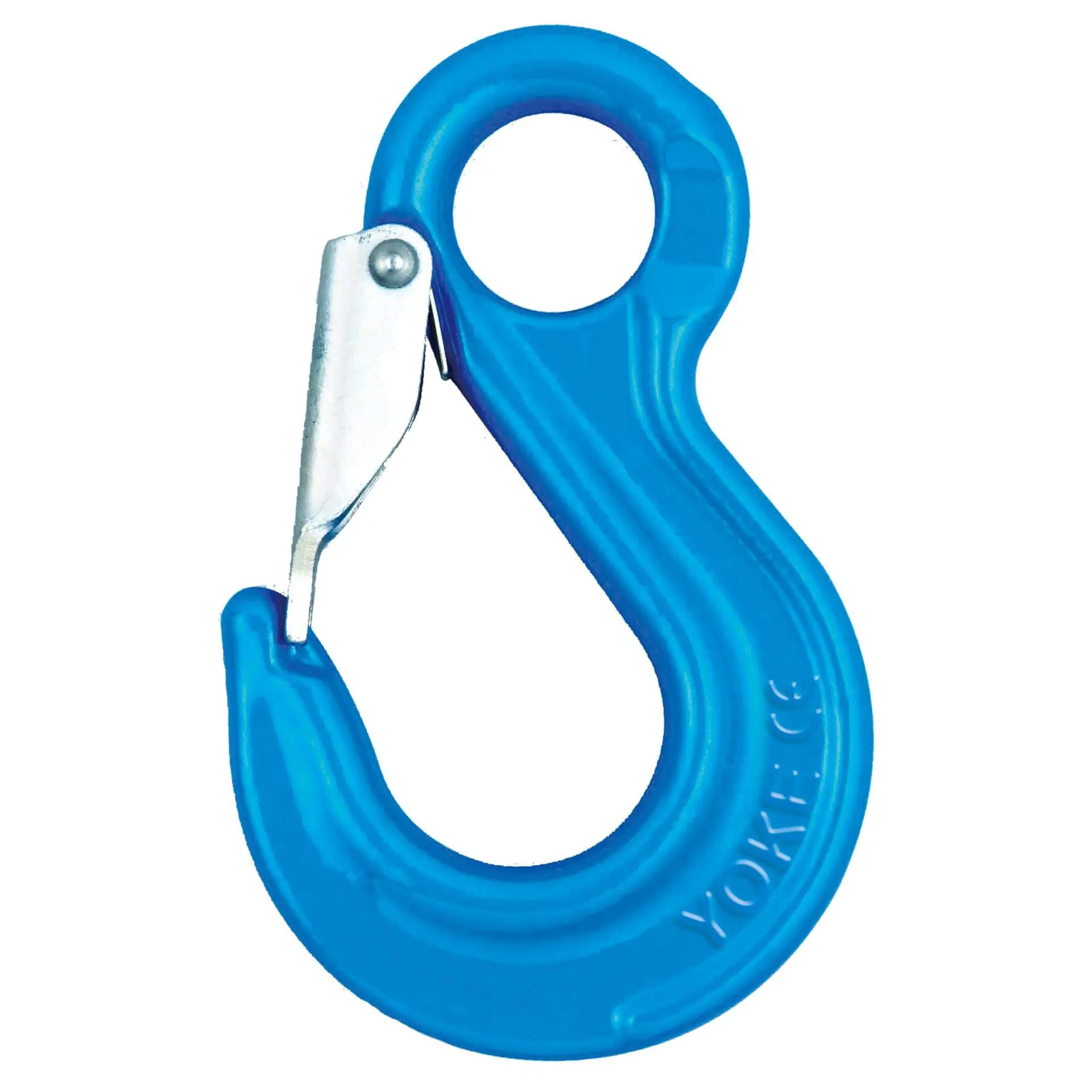

YOKE Grade 100 Eye Sling Latch Hook
- Quenched and Tempered Alloy Steel
- At least 25% greater WLL than traditional G80 products
- Manufactured in accordance with EN 1677- 2 and ASME B30.26, ASME B30.10, PAS1061
- Certified by DGUV GS-OA-15-05
- Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
- Design Factor 4:1
- Fatigue rated to 20,000 cycles at 1.5 times the WLL
- Tempering temperature minimum 400°C
- Magnaflux crack detection is performed 100% on each batch

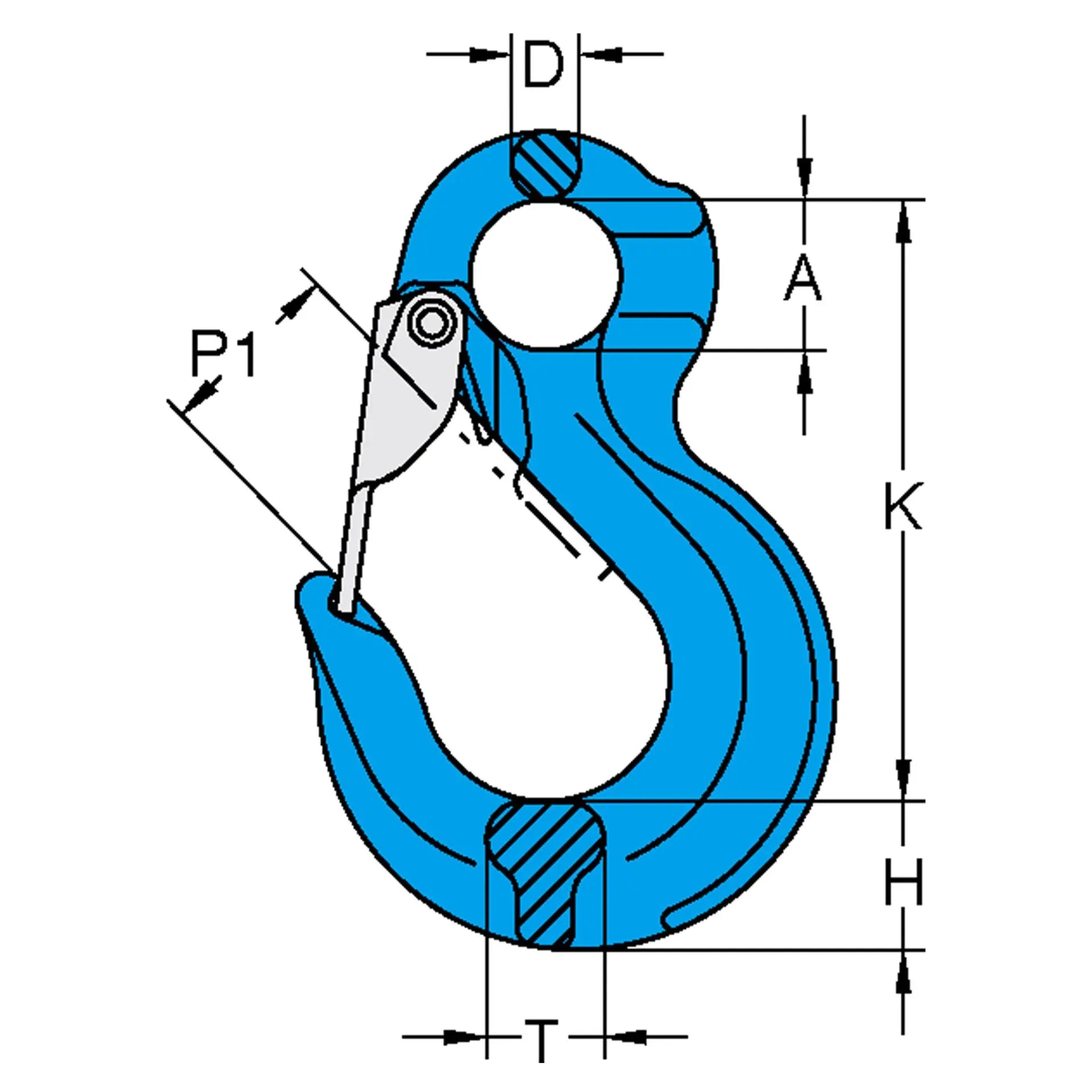

Spec
SKU |
Capacity (t) |
For Grade 100 Chain (mm) |
Weight (kg) |
276-63-1 |
2.5 |
7, 8 |
0.5 |
276-63-2 |
4 |
10 |
1 |
276-63-3 |
6.7 |
13 |
1.8 |
276-63-4 |
10 |
16 |
3.4 |
276-63-5 |
16 |
20 |
7.3 |
276-63-6 |
19 |
22 |
9.3 |
276-63-7 |
26.5 |
26 |
13.5 |
276-63-8 |
40 |
32 |
22 |
