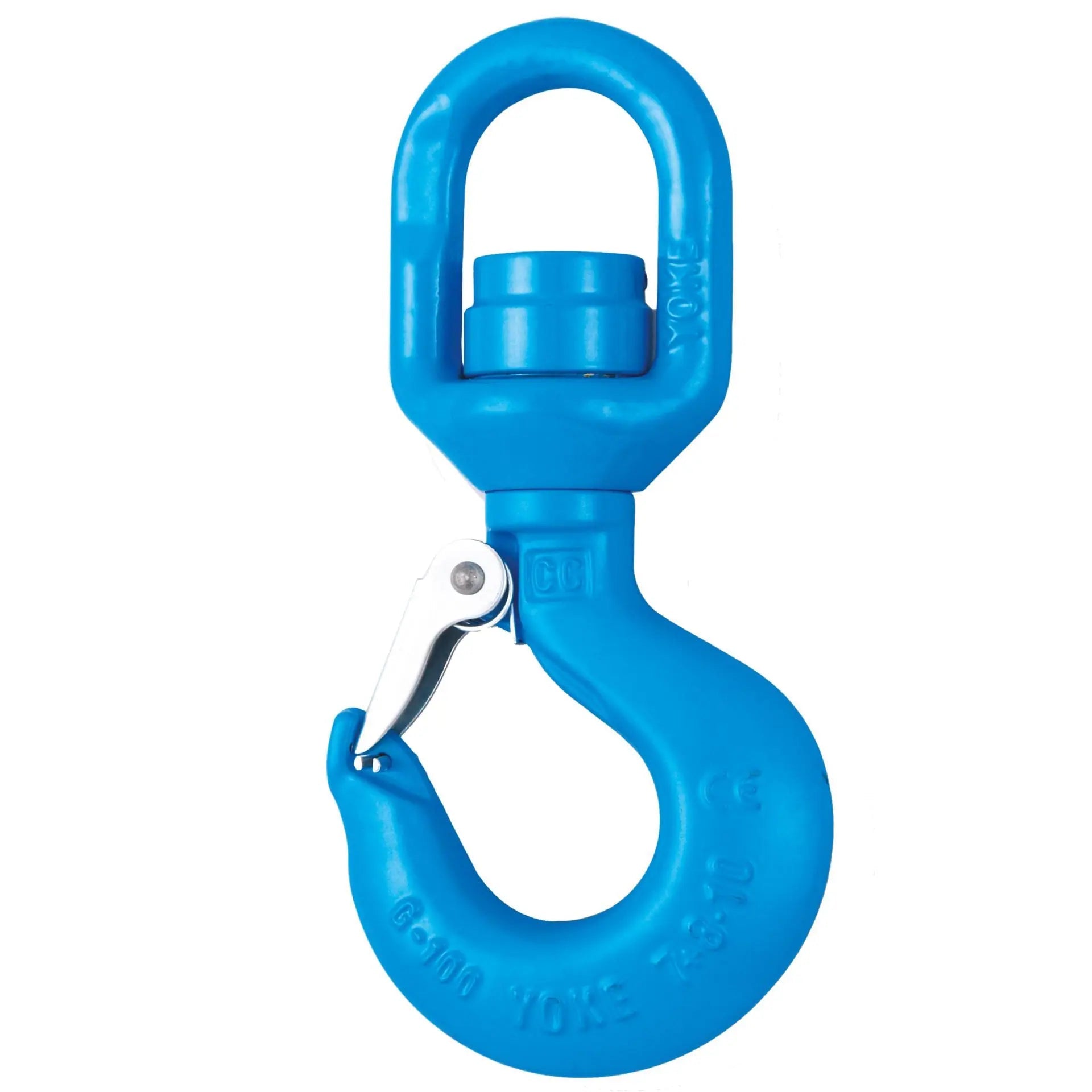

YOKE X-157N Grade 100 Swivel Bearing Hoist Hook
- Quenched and Tempered Alloy Steel
- At least 25% greater WLL than traditional G80 products
- Manufactured in accordance with EN 1677- 2 and ASME B30.26
- Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
- Design Factor 4:1
- Fatigue rated to 20,000 cycles at 1.5 times the WLL
- Tempering temperature minimum 400°C
- Magnaflux crack detection is performed 100% on each batch
- Built with ball bearing and enables full swivel feature under load
Spec
SKU |
Capacity (t) |
For Grade 100 Chain (mm) |
Weight (kg) |
276-67-1 |
2.5 |
7, 8 |
1 |
276-67-2 |
4 |
10 |
1.6 |
276-67-3 |
6.7 |
13 |
3.3 |
276-67-4 |
10 |
16 |
5.6 |
