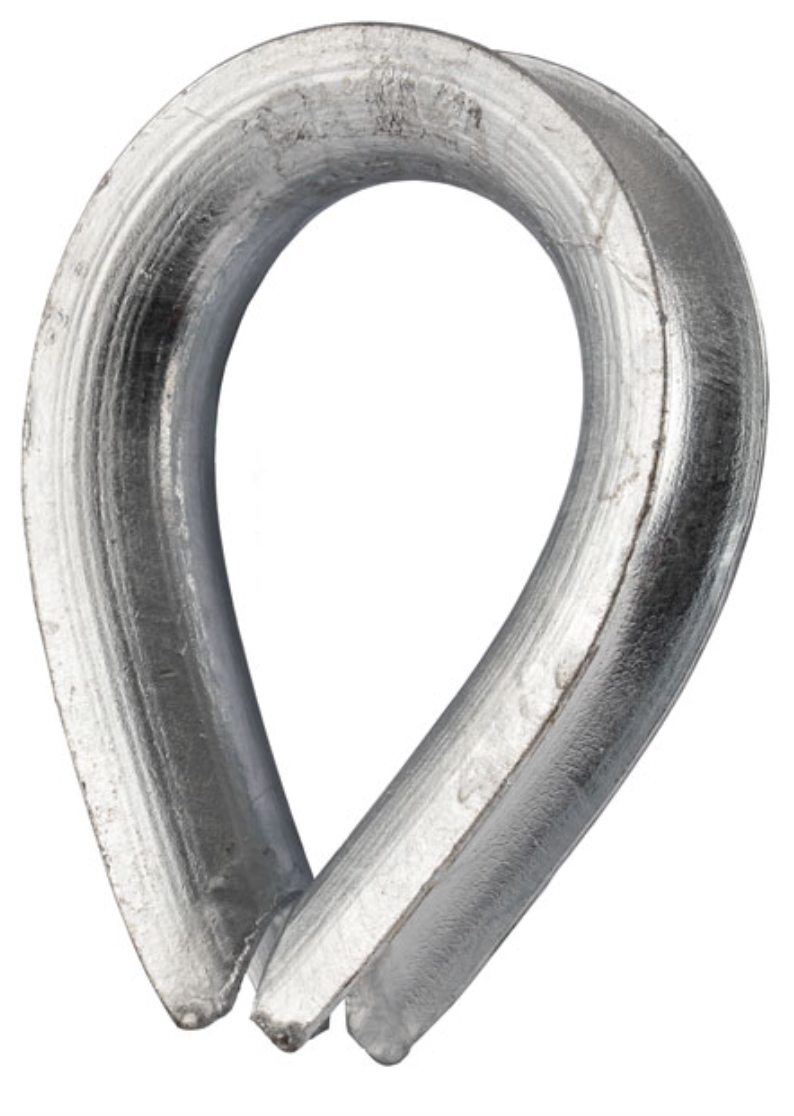

Wire Rope Thimble - BS Style to BS EN 13411-1
- Mild steel.
- Hot dipped galvanised finish.
- Meets the performance requirements of BS EN 13411-1.*
- Meets the performance requirements of the withdrawn standard BS 464.*
- For use with wire ropes.
- Certification available
Spec
SKU
|

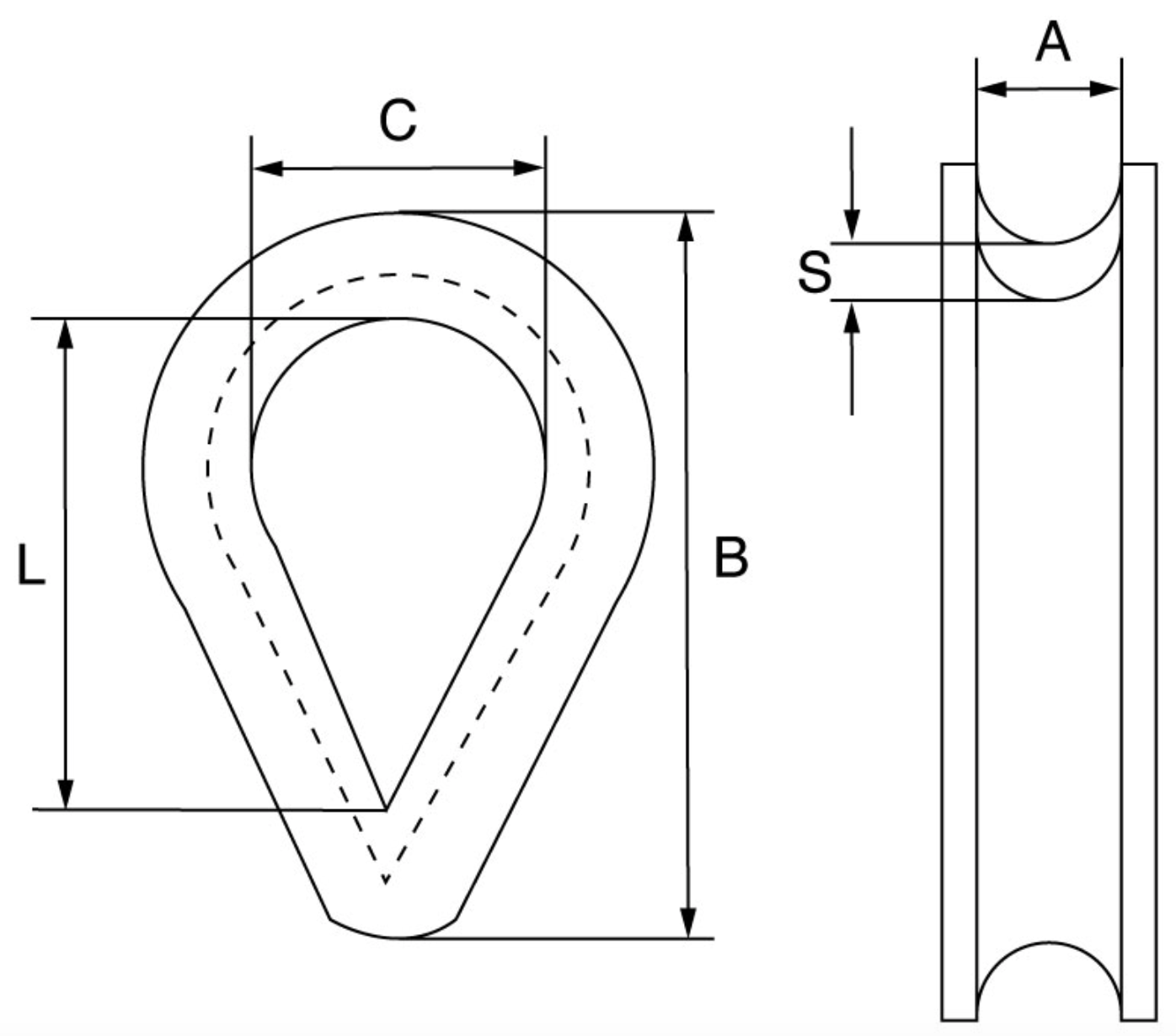

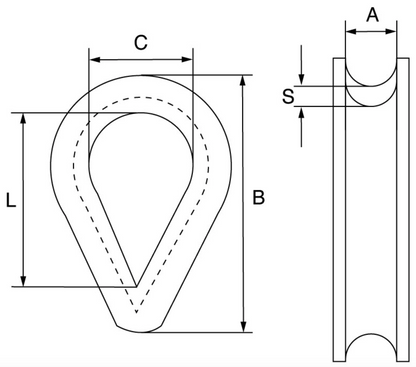

Rope Dia |
A |
B |
L |
C |
S |
Weight |
|
inch |
mm |
mm |
mm |
mm |
mm |
kgs/100 |
286-807-1
|
1/4 |
7 |
45 |
26 |
18 |
4 |
4.1 |
286-807-2
|
5/16 |
8 |
54 |
33 |
22 |
4 |
6.5 |
286-807-3
|
3/8 |
10 |
64 |
38 |
25 |
4.8 |
9.5 |
286-807-4
|
1/2 |
14 |
80 |
44 |
32 |
5.6 |
13 |
286-807-5
|
5/8 |
16 |
98 |
59 |
41 |
7.9 |
30 |
286-807-6
|
3/4 |
21 |
124 |
73 |
51 |
9.5 |
51.5 |
286-807-7
|
7/8 |
22 |
133 |
83 |
57 |
9.5 |
69.0 |
286-807-8
|
1 |
27 |
162 |
108 |
70 |
10.3 |
99.5 |
286-807-9
|
1 1/8 |
29 |
178 |
111 |
76 |
12.7 |
129 |
286-807-10
|
1 1/4 |
33 |
197 |
133 |
95 |
12.7 |
145 |
286-807-11
|
1 3/8 |
38 |
229 |
152 |
105 |
15.9 |
238 |
286-807-12
|
1 1/2 |
41 |
254 |
165 |
114 |
17.5 |
340 |
286-807-13
|
1 5/8 |
43 |
254 |
165 |
114 |
17.5 |
499 |
286-807-14
|
1 3/4 |
51 |
286 |
178 |
127 |
25.4 |
532 |
286-807-15
|
2 |
64 |
330 |
203 |
140 |
28.6 |
695 |
