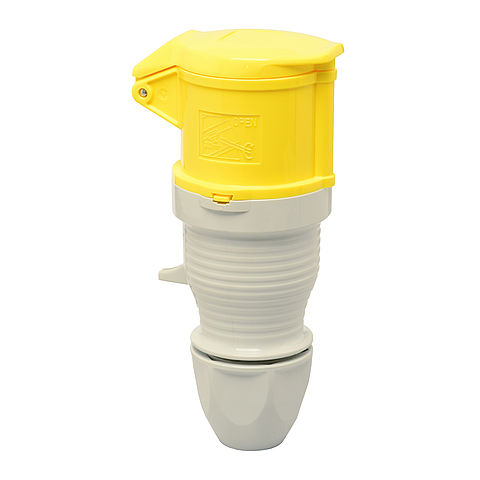

Walther | COUPLER 16A 4P 4H WITH CABLE GLAND Ref: 280-5
WALTHER Coupler 16A 4P 110V 4h IP44 made from PA6 material with screw terminal with external grommet and an injected 2K seal Increased safety due to two contact screws.
SPEC
IEC-amperage: 16 A
Amperage acc. UL/CSA (for UL-version): 20 A
Number of poles: 4
Voltage acc. EN 60309-2: 110 V (50+60 Hz) yellow
Clock hour position: 4 h
Identification colour: Yellow
RAL-number: 1018
Degree of protection (IP): IP44
Connection system: Screwed terminal
Angle of plug: Straight
Cable entry: Anti-kink sleeve
Material: Plastic
Walther Part-No: 310404
CERTIFICATES
VDE certification 123016
UL certification E329476
UL certification E188992
EAC certification BY112.02.01.020 06101
CSA certification 70096522
