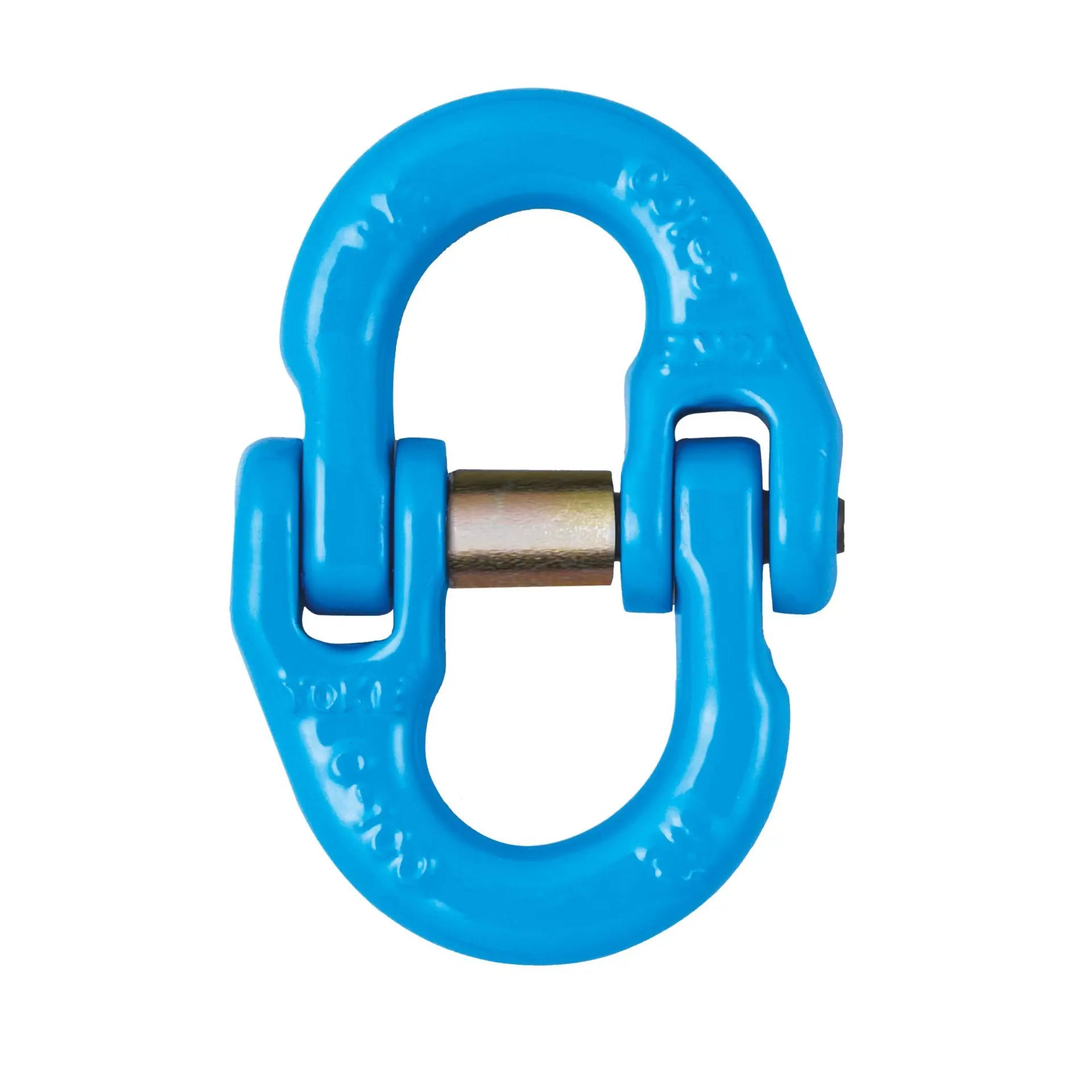

YOKE Grade 100 Connecting Link
- Quenched and Tempered Alloy Steel
- At least 25% greater WLL than traditional G80 products
- Manufactured in accordance with EN 1677- 1 and ASTM A952/A952M
- Certified by DGUV GS-OA-15-05
- Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
- Design Factor 4:1
- Fatigue rated to 20,000 cycles at 1.5 times the WLL
- Suitable for use with both Grade 80 and Grade 100 chain
Spec
SKU |
Capacity (t) |
For Grade 100 Chain (mm) |
Weight (kg) |
276-56-1 |
1.4 |
6 |
0.09 |
276-56-2 |
2.5 |
7, 8 |
0.17 |
276-56-3 |
4 |
10 |
0.34 |
276-56-4 |
6.7 |
13 |
0.76 |
276-56-5 |
10 |
16 |
1.23 |
276-56-6 |
16 |
20 |
2.2 |
276-56-7 |
19 |
22 |
3.67 |
276-56-8 |
26.5 |
26 |
5.17 |
276-56-9 |
40 |
32 |
9.5 |
