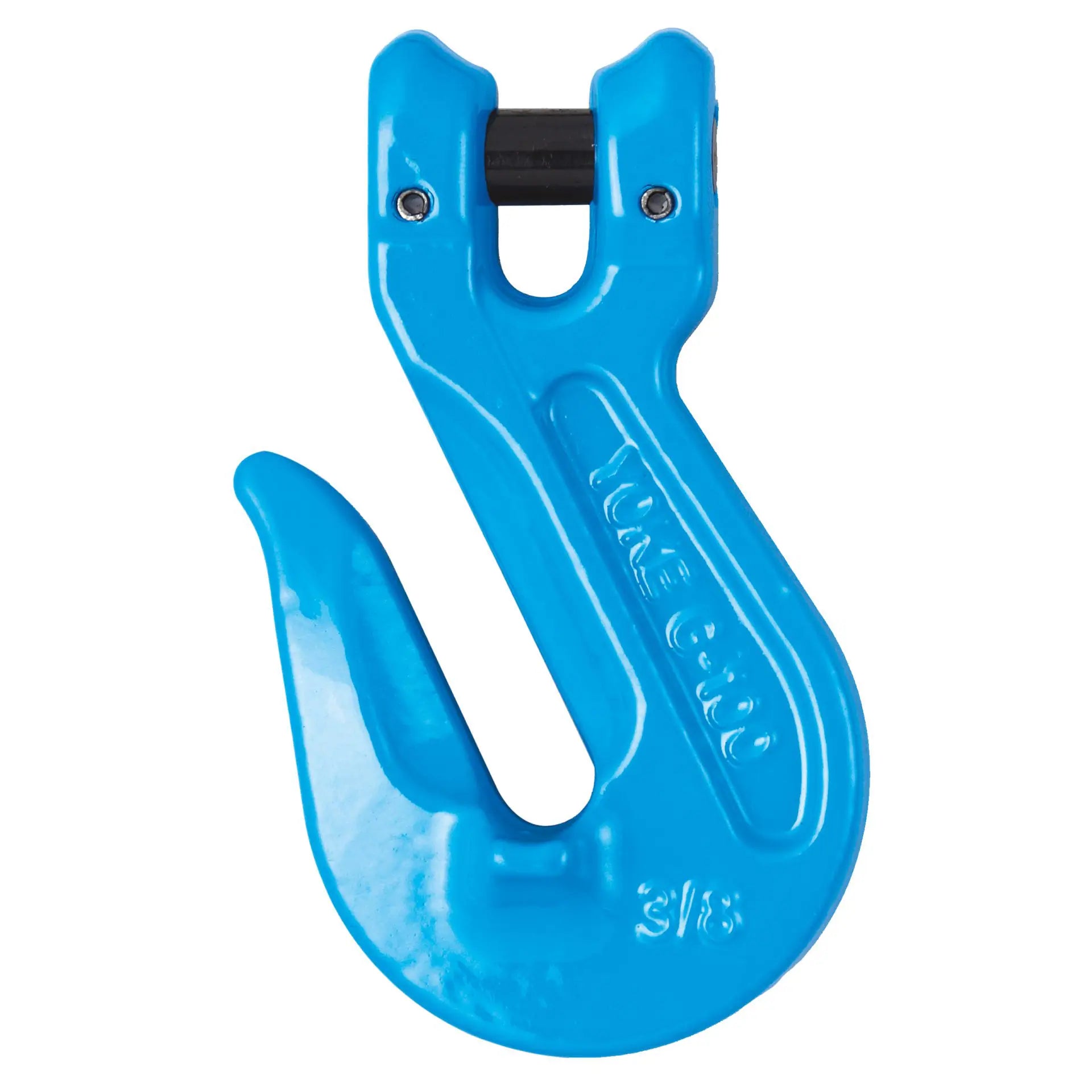

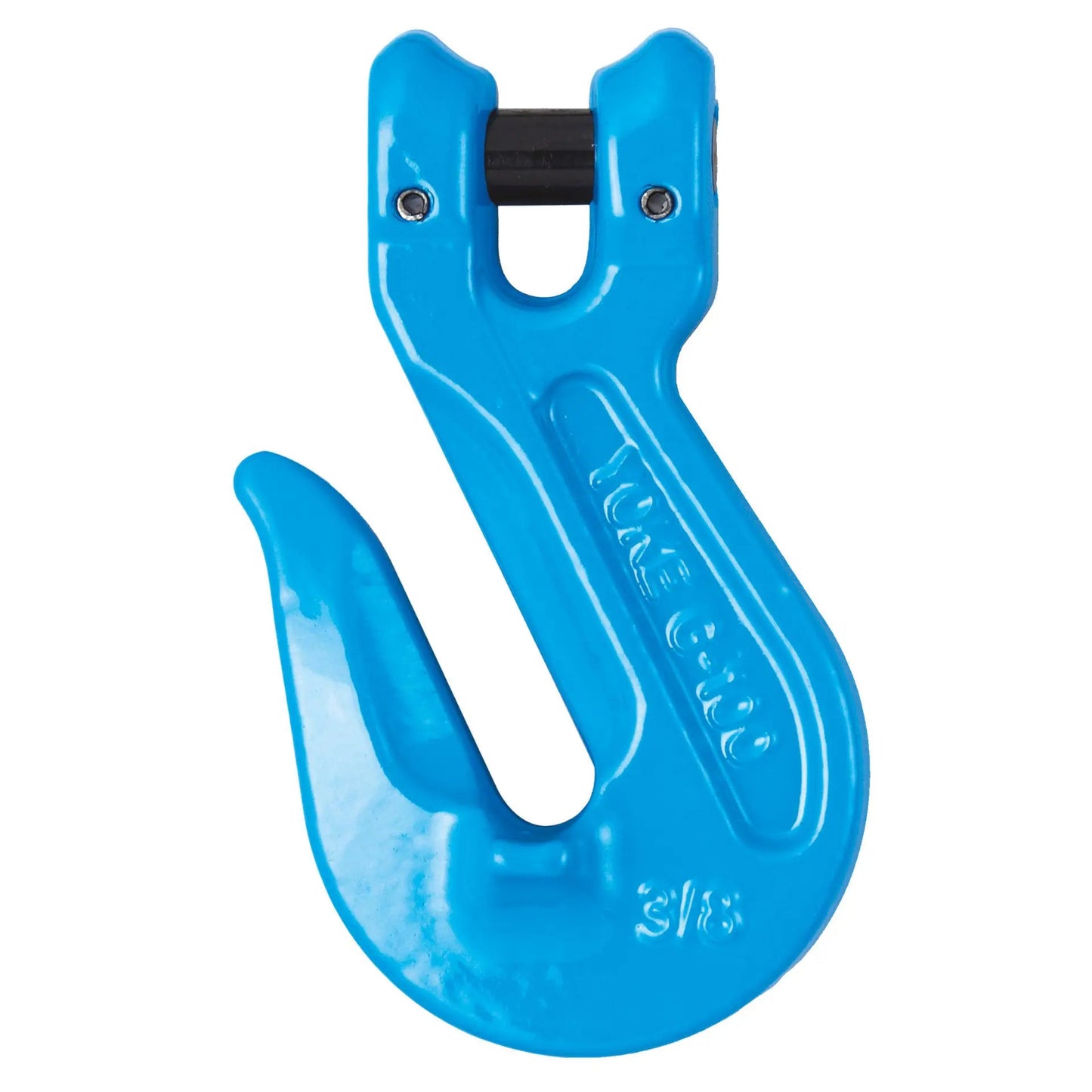

YOKE Grade 100 Clevis Grab Hook

In stock
SKU: 276-60-1
Regular price £13.80 GBP inc vat
WLL

YOKE Grade 100 Eye Grab Hook

  • Quenched and Tempered Alloy Steel
  • At least 25% greater WLL than traditional G80 products
  • Manufactured in accordance with DIN PAS 1061, EN 1677-1 and ASTM A952/A 952M
  • Certified by DGUV GS-OA-15-05
  • Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
  • Design Factor 4:1
  • Fatigue rated to 20,000 cycles at 1.5 times the WLL
  • Tempering temperature minimum 400°C
  • Not for use with Omega Link
  • Enables full WLL while in use, thanks to supporting wings which prevent chain link deformation

Spec

SKU Capacity (t) For Grade 100 Chain (mm) Weight (kg)
276-60-1 2.5 6 0.4
276-60-2 4 7, 8 0.8
276-60-3 6.7 10 1.6
276-60-4 10 13 2.7
276-60-5 16 16 4.8
276-60-6 19 20 6.4
