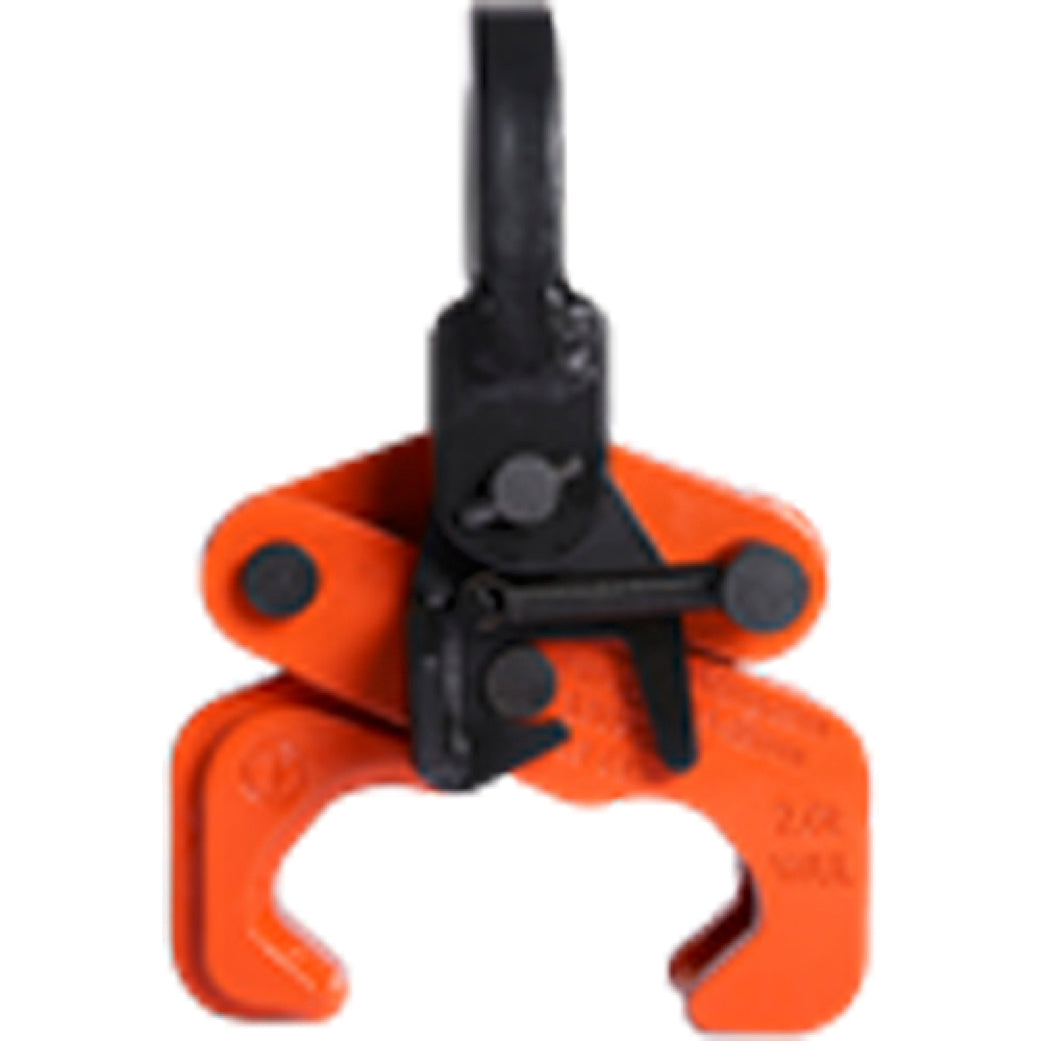

TIGER RAIL CLAMP - CRT Ref: 240-4
The Tiger rail clamp has been designed to facilitate the lifting of single rail sections safely and securely and is designed to fit most types of rail section sizes currently in use.
- Each clamp is is marked with jaw width, working load limit, serial number and year of manufacture.
- Narrow profile to enable attachment to an individual rail that is stacked side by side with other rails.
- No tools required.
- The clamp is locked onto the rail-head via a lever operated spring mechanism.
- 4:1 factor of safety.
Product Code
|
Capacity (tonne)
|

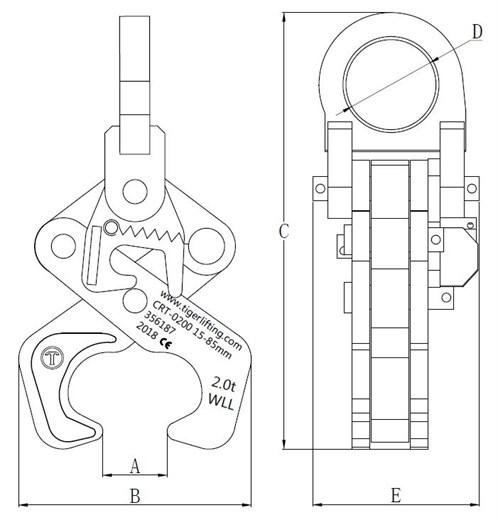

Dimensions (mm)
|
Net Weight (kg)
|
Jaw Opening A (mm)
|
B Max
(mm)
|
C Max
(mm)
|
D
(mm)
|
E
(mm)
|
240-4-1
|
2.0t
|
15-85
|
170
|
302
|
60
|
111
|
6.2
|
Certification
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.
