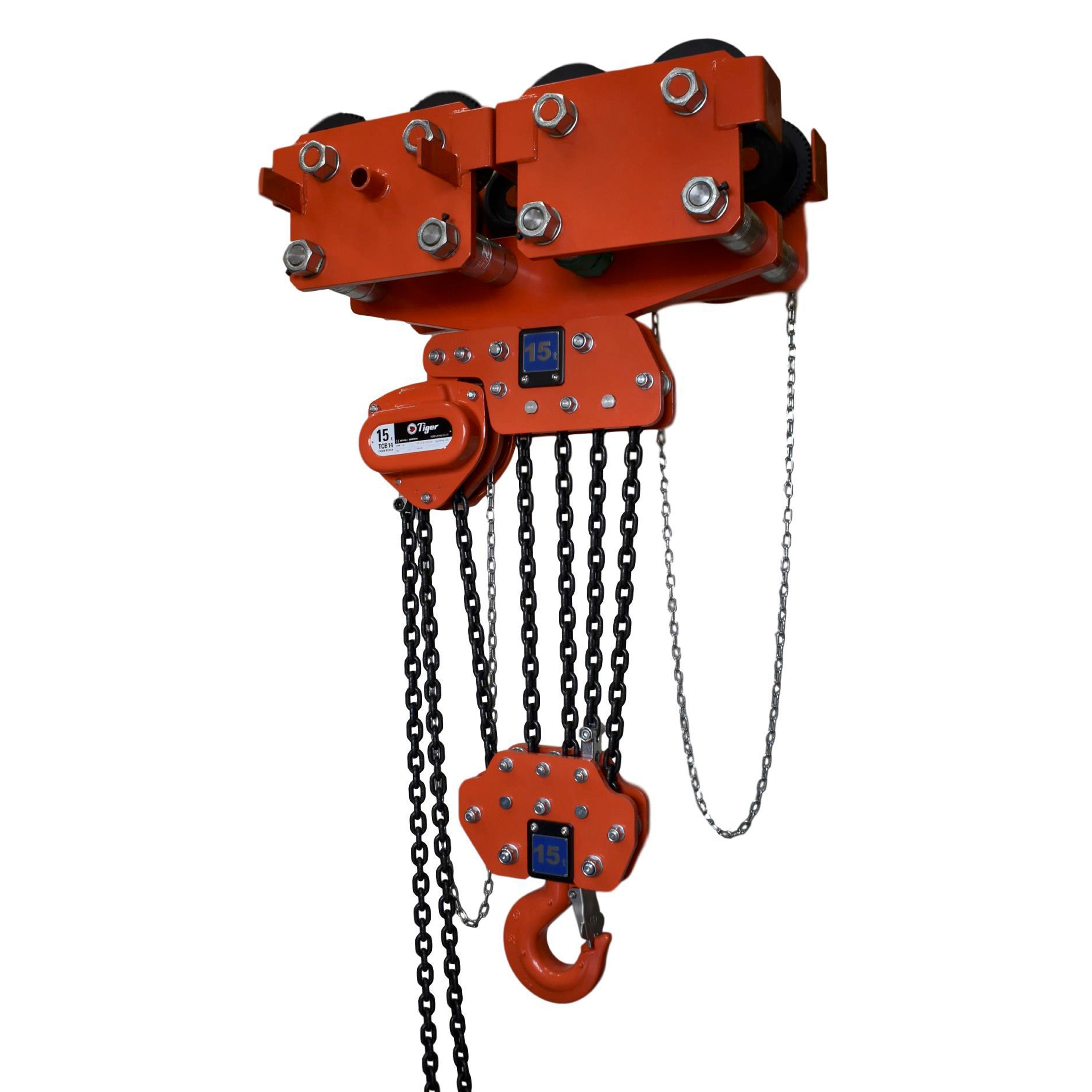

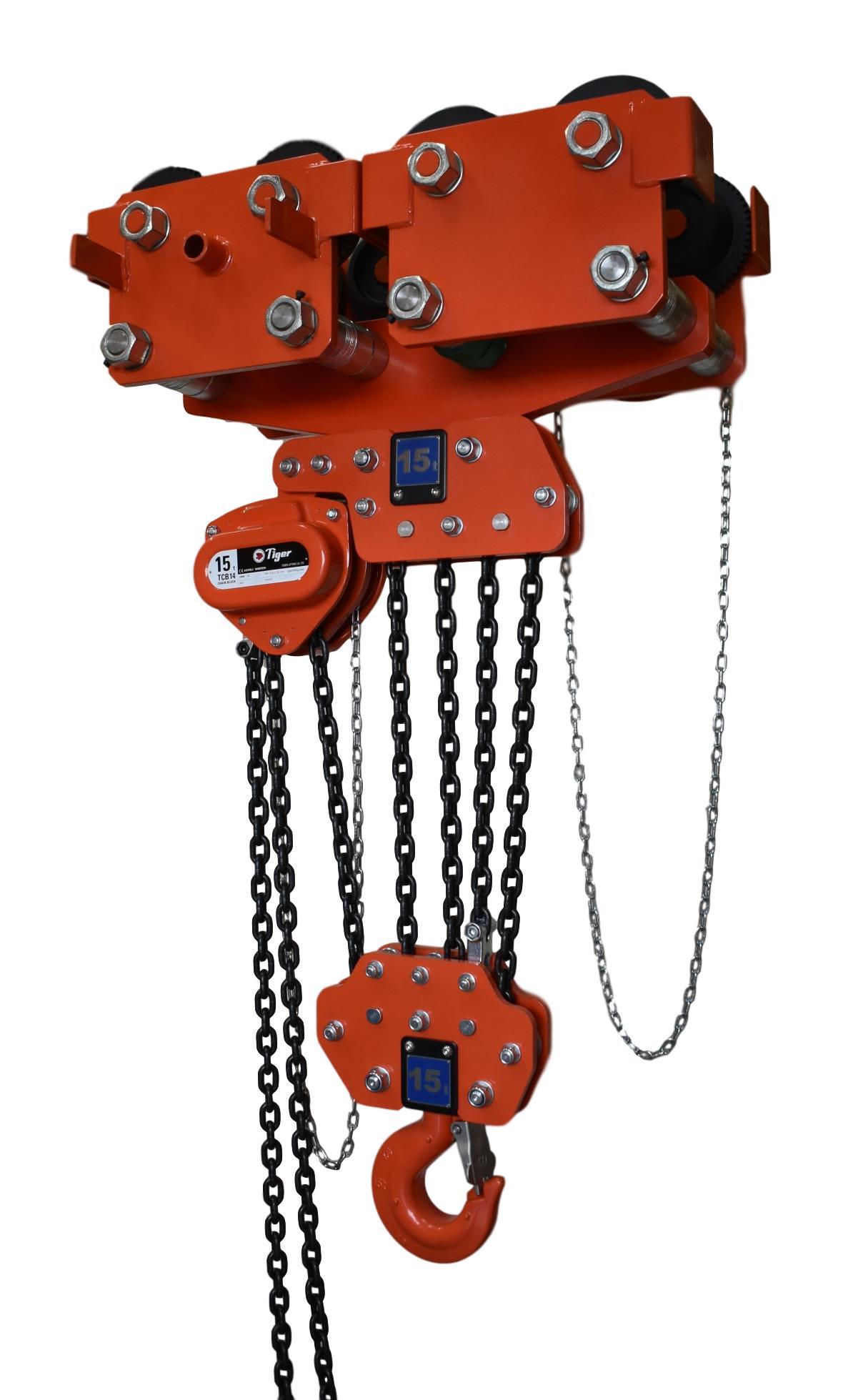

TIGER COMBINED CHAIN BLOCK & GEARED TRAVEL TROLLEY MODEL CCBTGT, 3.0t CAPACITY TWIN FALL - 105-153mm
- 3.0t SWL Capacity (twin fall) to suit a beam width range of 105-153mm (ref 231-5) with a plain powder coated finish
- The CCBTGS geared trolley range is from 0.5t to 30.0t safe working load
- Twin bar or single bar trolley options possible
- The unit can be chained to any height of lift to meet your exact requirements
- Ideal for locations where headroom is limited
- Extended beam width available
- Tiger trolley wheels are specially designed with a convex profile eliminating potential point loading
- The wheels run on sealed bearings for smoother rolling with less effort and maintenance
- The anti-drop plates design ensures extra safety, and also prevents damage to the wheels when contacting end rail stoppers
- Chain carrier available
- Geared and plain trolley versions available
- The 5:1 factor of safety allows for use with manual or powered hoists
- Operating temperature of -30°C to +50°C (temperature range of -50°C to +50°C available as an option)
- Corrosion or Spark Resistant versions also available
Certification
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.
Due to our policy of continual product development, dimensions, weights and specifications may change without prior notice. Please check with your Tiger sales team when ordering.
SINGLE BAR PLAIN COMBINATION UNITS
PRODUCT CODE |
CAPACITY (TONNE) |
D - TRACK WIDTH |
DIMENSIONS (MM) |
MIN. CURVE RATIO (M) |
NET WEIGHT (KG) |
RANGE 1 (MM) |
RANGE 2 (MM) |
A |
B |
C |
H |
CCBTPS-0050 |
0.5 |
62-128 |
62-203 |
195 |
106 |
106 |
310 |
0.8 |
16.0 |
CCBTPS-0100 |
1.0 |
62-128 |
62-203 |
213 |
113 |
113 |
350 |
1.0 |
19.5 |
CCBTPS-0200 |
2.0 |
88-154 |
88-230 |
236 |
136 |
136 |
450 |
1.3 |
33.0 |
CCBTPS-0300 |
3.0 |
88-153 |
88-230 |
281 |
146 |
146 |
530 |
1.5 |
48.5 |
TWIN BAR PLAIN COMBINATION UNITS
PRODUCT CODE |
CAPACITY (TONNE) |
D - TRACK WIDTH |
DIMENSIONS (MM) |
MIN. CURVE RATIO (M) |
NET WEIGHT (KG) |
RANGE 1 (MM) |
RANGE 2 (MM) |
A |
B |
C |
H |
CCBTPT-030T |
3.0 |
88-153 |
88-230 |
320 |
142 |
142 |
435 |
1.5 |
45.5 |
CCBTPT-0500 |
5.0 |
106-194 |
106-305 |
352 |
167 |
166 |
545 |
1.5 |
69.0 |
CCBTPT-1000 |
10.0 |
150-320 |
N/A |
460 |
255 |
255 |
730 |
2.7 |
185.0 |
