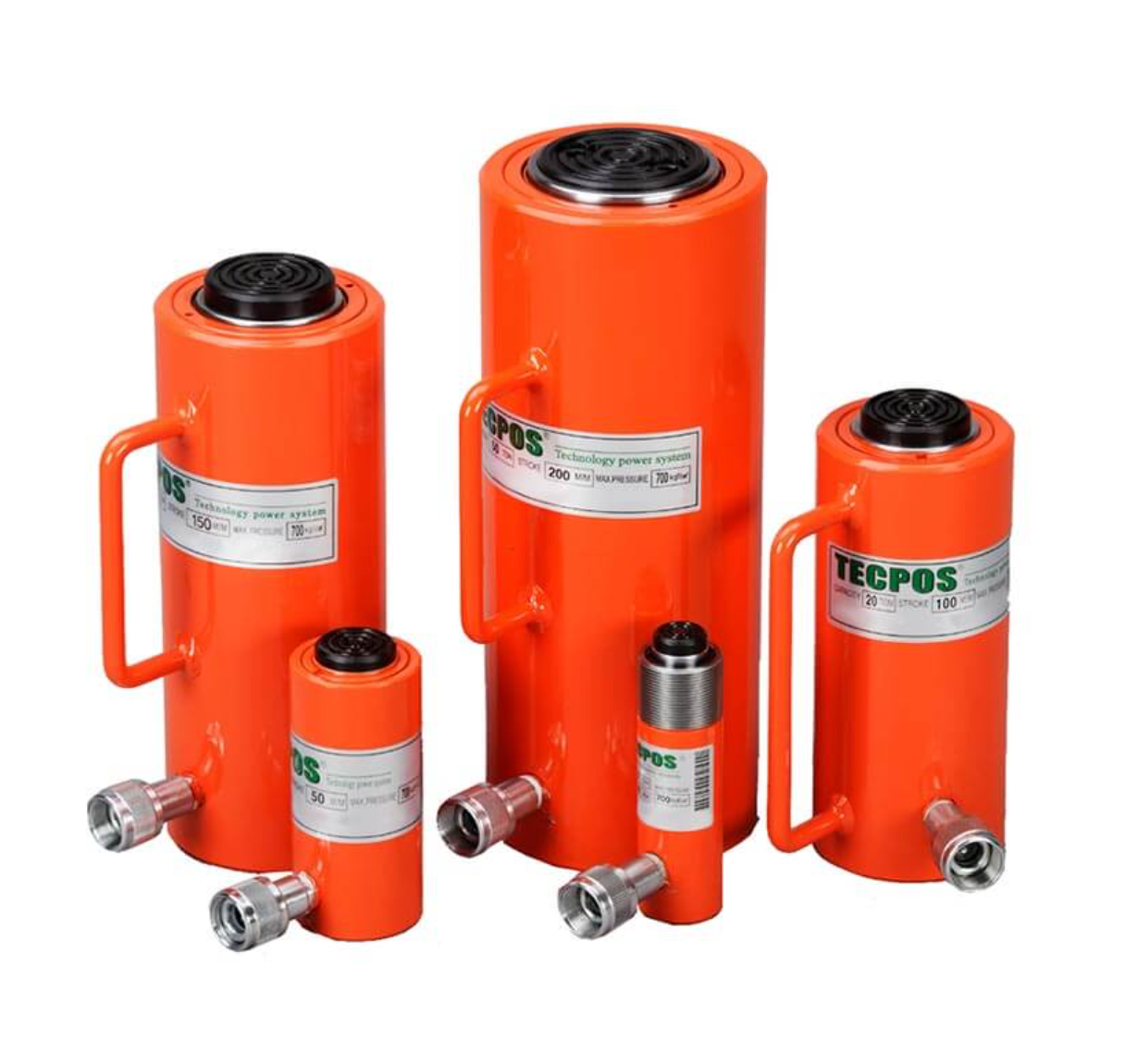

SKU | Cyl. Cap. | Stroke | Cyl. Effective Area | Oil Cap. | Retracted Height | Extended Height | Cyl. Out Dia. | Cyl. Bore Dia. |
---|---|---|---|---|---|---|---|---|
t | mm |
cm(2)
|
cc | A mm | B mm | C mm | D mm | |
286-700-1 | 5 | 50 | 6.38 | 35 | 134 | 184 | 38 | 28.5 |
286-700-1A | 5 | 100 | 6.38 | 70 | 184 | 284 | 38 | 28.5 |
286-700-1B | 5 | 150 | 6.38 | 106 | 234 | 384 | 38 | 28.5 |
286-700-1C | 5 | 200 | 6.38 | 140 | 284 | 484 | 38 | 28.5 |
286-700-2 | 10 | 50 | 15.2 | 76 | 133 | 183 | 58 | 44 |
786-700-3 | 10 | 100 | 15.2 | 152 | 183 | 283 | 58 | 44 |
786-700-4 | 10 | 150 | 15.2 | 228 | 233 | 383 | 58 | 44 |
786-700-5 | 10 | 200 | 15.2 | 304 | 283 | 483 | 58 | 44 |
786-700-6 | 20 | 50 | 33.18 | 166 | 165 | 215 | 88 | 65 |
786-700-7 | 20 | 100 | 33.18 | 332 | 215 | 315 | 88 | 65 |
786-700-8 | 20 | 150 | 33.18 | 498 | 265 | 415 | 88 | 65 |
786-700-9 | 20 | 200 | 33.18 | 664 | 315 | 515 | 88 | 65 |
786-700-10 | 30 | 50 | 44.18 | 220 | 172 | 222 | 102 | 75 |
786-700-11 | 30 | 100 | 44.18 | 440 | 222 | 322 | 102 | 75 |
786-700-12 | 30 | 150 | 44.18 | 660 | 272 | 422 | 102 | 75 |
786-700-13 | 30 | 200 | 44.18 | 880 | 322 | 522 | 102 | 75 |
786-700-14 | 50 | 50 | 70.88 | 355 | 173 | 223 | 127 | 95 |
786-700-15 | 50 | 100 | 70.88 | 710 | 223 | 323 | 127 | 95 |
786-700-16 | 50 | 150 | 70.88 | 1,070 | 273 | 423 | 127 | 95 |
786-700-17 | 50 | 200 | 70.88 | 1,425 | 323 | 523 | 127 | 95 |
786-700-18 | 100 | 100 | 132.7 | 1,330 | 226 | 326 | 165 | 130 |
786-700-19 | 100 | 150 | 132.7 | 1,991 | 436 | 436 | 165 | 130 |
SKU | Cyl. Cap. | Stroke | Piston Rod Dia | Base to Inlet port | Piston rod internal thread | Piston rod Thread Length | Weight | Pump |
---|---|---|---|---|---|---|---|---|
t | mm | E mm | F mm | G | H mm | kgs | ||
286-700-1 | 5 | 50 | 25 | 25 | 3/4-16 UNF | 16 | 1.1 | 1B or 08 |
286-700-1A | 5 | 100 | 25 | 25 | 3/4-16 UNF | 16 | 1.4 | 1B or 08 |
286-700-1B | 5 | 150 | 25 | 25 | 3/4-16 UNF | 16 | 1.4 | 1B or 08 |
286-700-1C | 5 | 200 | 25 | 25 | 3/4-16 UNF | 16 | 2.2 | 1B or 08 |
286-700-2 | 10 | 50 | 38 | 20 | 1-8 UNC | 19 | 2.1 | 1B or 08 |
286-700-3 | 10 | 100 | 38 | 20 | 1-8 UNC | 19 | 3.4 | 1B or 08 |
286-700-4 | 10 | 150 | 38 | 20 | 1-8 UNC | 19 | 4.8 | 1B or 08 |
286-700-5 | 10 | 200 | 38 | 20 | 1-8 UNC | 19 | 5.6 | 1B or 08 |
286-700-6 | 20 | 50 | 57 | 35 | M38x2.0 | 26 | 7 | 1B or 08 |
286-700-7 | 20 | 100 | 57 | 35 | M38x2.0 | 26 | 8.8 | 1B or 08 |
286-700-8 | 20 | 150 | 57 | 35 | M38x2.0 | 26 | 11 | 1B or 08 |
286-700-9 | 20 | 200 | 57 | 35 | M38x2.0 | 26 | 12.7 | 1C or 17 |
286-700-10 | 30 | 50 | 65 | 35 | M44x2.0 | 30 | 9.8 | 1B or 08 |
286-700-11 | 30 | 100 | 65 | 35 | M44x2.0 | 30 | 12.5 | 1B or 08 |
286-700-12 | 30 | 150 | 65 | 35 | M44x2.0 | 30 | 16 | 1C or 17 |
286-700-13 | 30 | 200 | 65 | 35 | M44x2.0 | 30 | 17.5 | 1C or 17 |
286-700-14 | 50 | 50 | 85 | 35 | M10x1.5 | 13 | 15.8 | 1C or 17 |
286-700-15 | 50 | 100 | 85 | 35 | M10x1.5 | 13 | 20 | 1C or 17 |
286-700-16 | 50 | 150 | 85 | 35 | M10x1.5 | 13 | 23.5 | 1C or 17 |
286-700-17 | 50 | 200 | 85 | 35 | M10x1.5 | 13 | 27.7 | 1C or 17 |
286-700-18 | 100 | 100 | 110 | 40 | M10x1.5 | 15 | 32.7 | 25 |
286-700-19 | 100 | 150 | 110 | 40 | M10x1.5 | 15 | 44.5 | 25 |
