STEIN Modular Guarding System - Re-designed in 2022

The STEIN Modular Guarding System (MGS) is designed to help reduce the risk of flying debris.

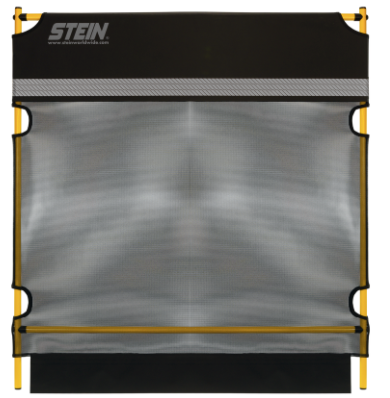

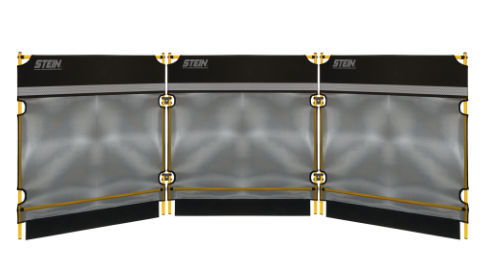

The system consists of 3 individual panels each 115cm high by 105cm wide and weighing 4.8kg (total guard weight 15.0kg including connection clips).When all 3 panels are connected the system is 3.20m in length.

The panels are made from 20mm Heavy Duty steel tubing which is fully Powder Coated to prevent the inset of corrosion and to help prolong the products life. The tubular frames are assembled with M10 Coated Hex Screws (HEX tool provided for assembly)

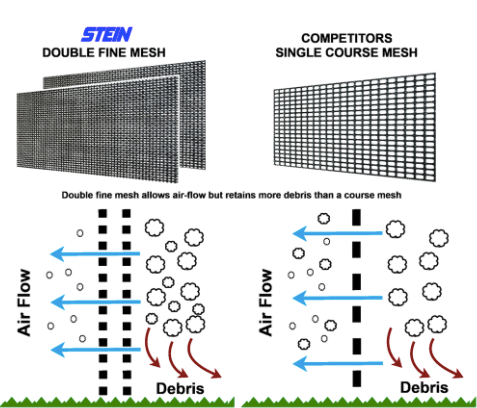

Each of the steel frames is covered in a durable double layered close knit black mesh allowing wind to pass through. Each panel has a High Visibility X25 Reflective stripe applied.

The 3 panels are connected together by quick release clips which allows you to add and subtracted extra panels with ease (no tools required) to create a customised Guarding System.

Features

• Each system consists of 3 panels
• Made from 20mm Heavy Duty Steel Tube - Powder Coated
• Each frame is covered in a durable double layered close knit black mesh
• Each panel has a High Visibility X25 Reflective stripe applied
• The panels are connected together by quick release hinge clips
• Complete system can be carried with ease
• Panels can be added and subtracted to create a customised Guarding System

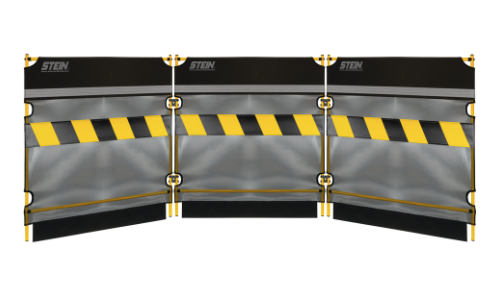

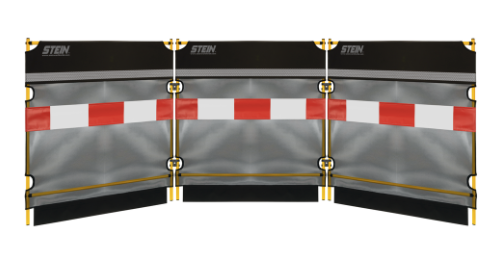

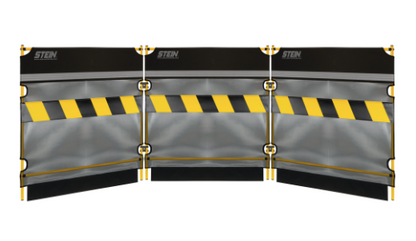

• Optional Variant Markings are available

Warning

It is not possible to cover every eventuality relating to the use of this equipment. Purchasers and users of this product should seek professional training from a fully qualified and competent instructor prior to engaging in any activity. If you are not able, or not in a position to assume this responsibility, do not use this product. The manufacturer its distributors and retailers do not accept any liability if users do not follow the instructions correctly. Only the techniques shown in the diagrams are authorize. Any other use deviating from those shown may result in serious injury or death.

We cannot guarantee that this product will stop all flying debris. The manufacturer its distributors and retailers cannot be held responsible for any damage which may occur when using this product. It is the responsibility of the operator to create a safe working environment and assess the correct use and positioning as part of their Risk Assessment. Further guarding maybe required over and above the Modular Guard.
