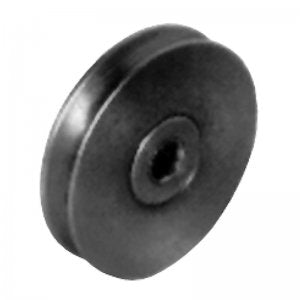

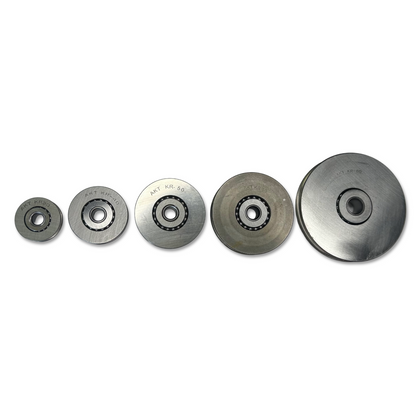

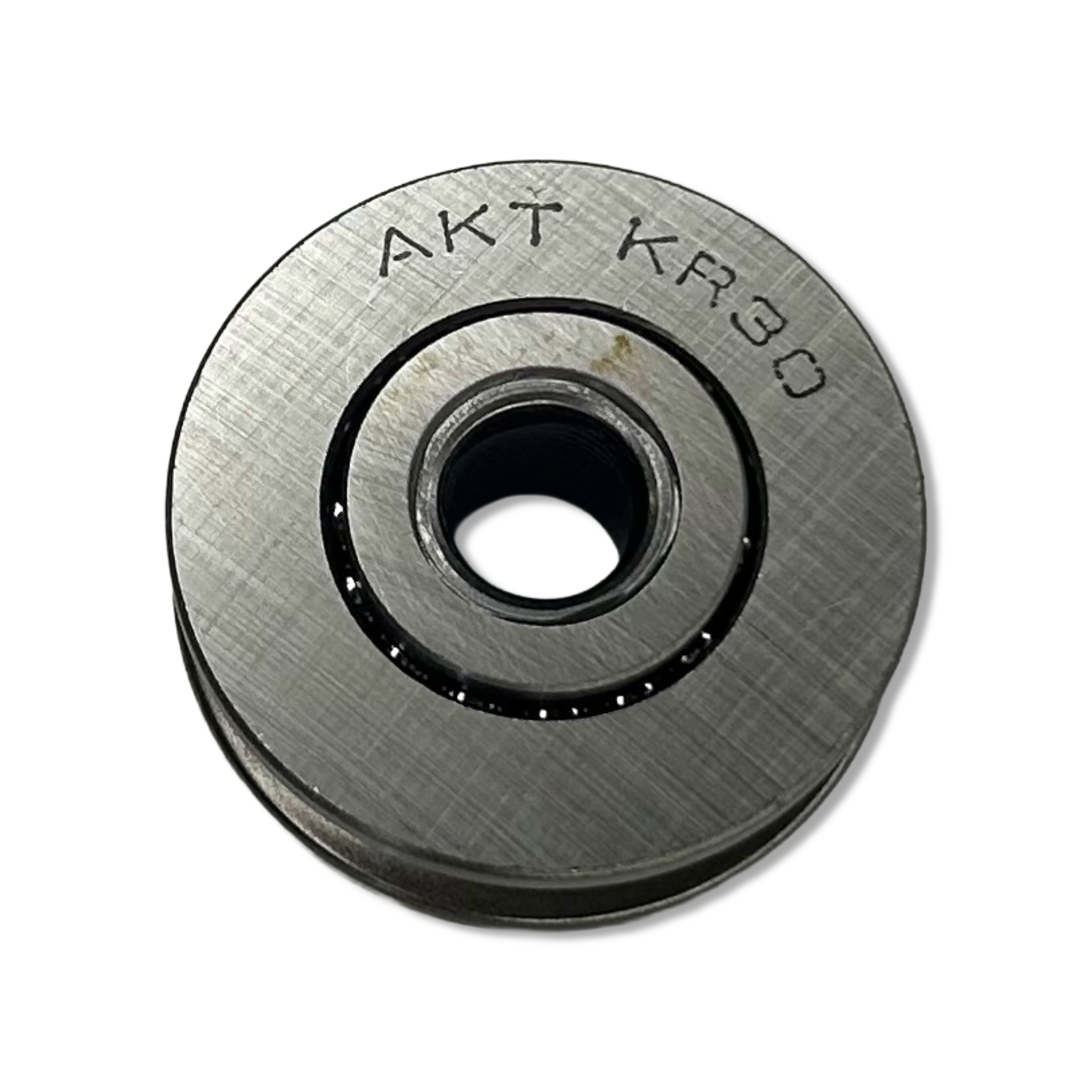

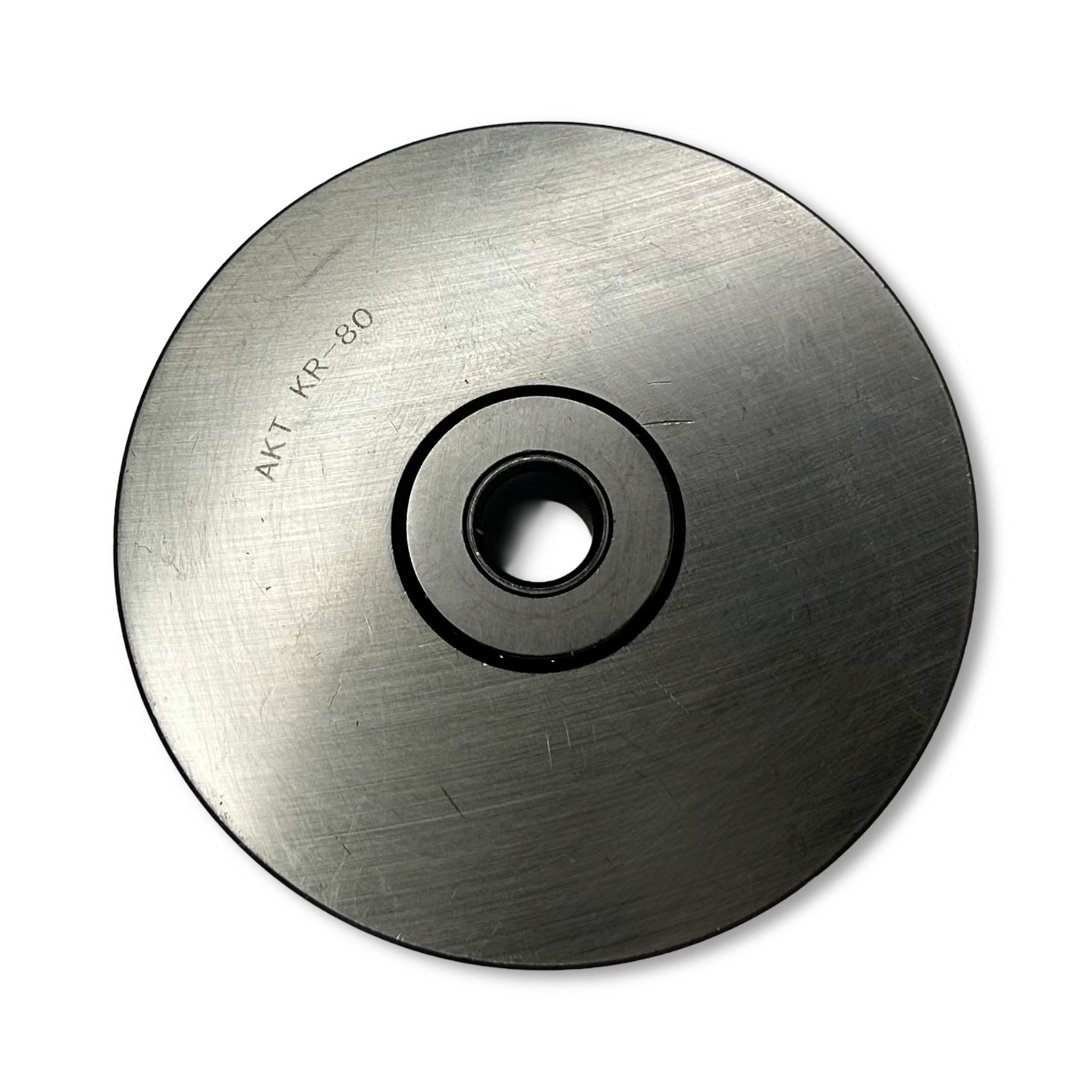

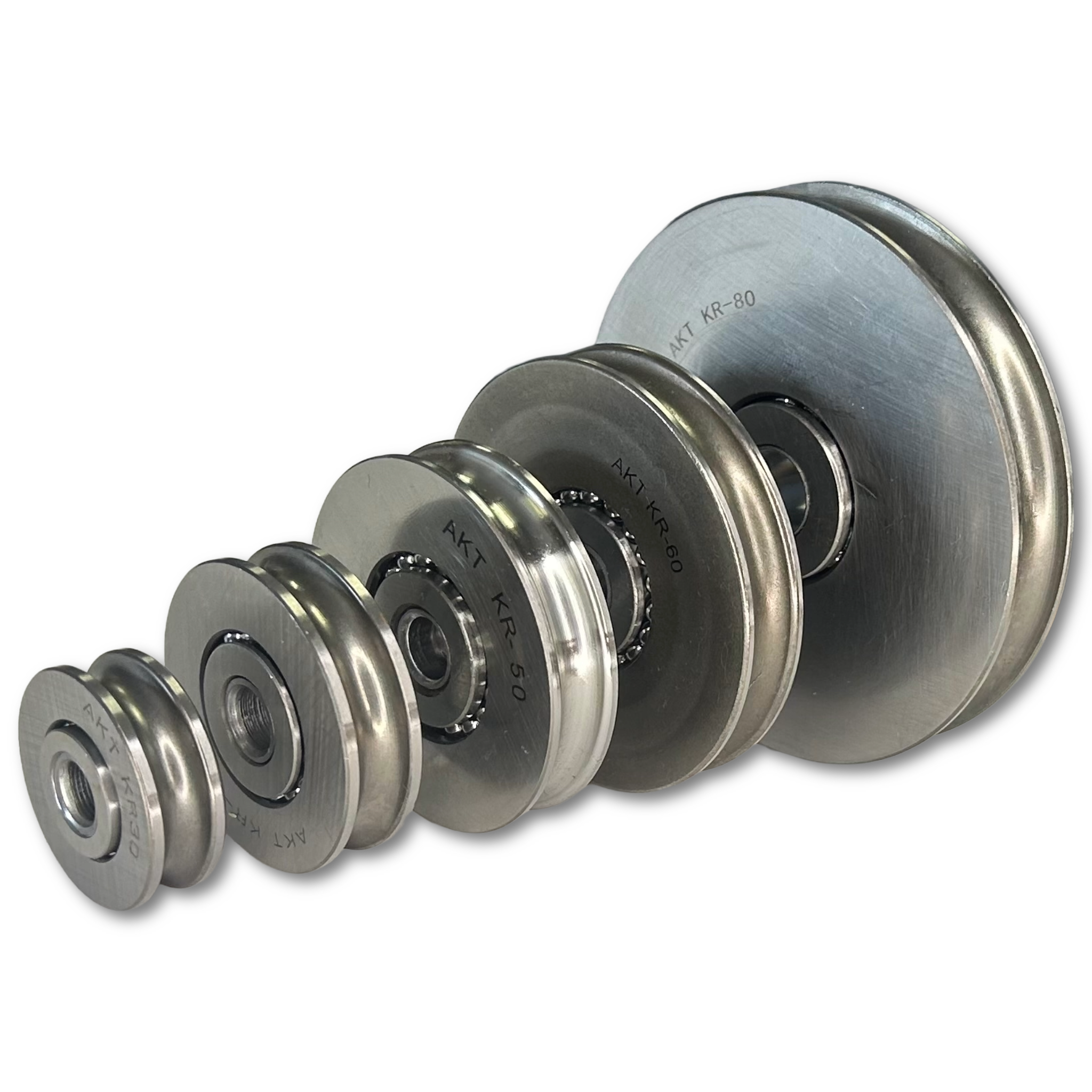

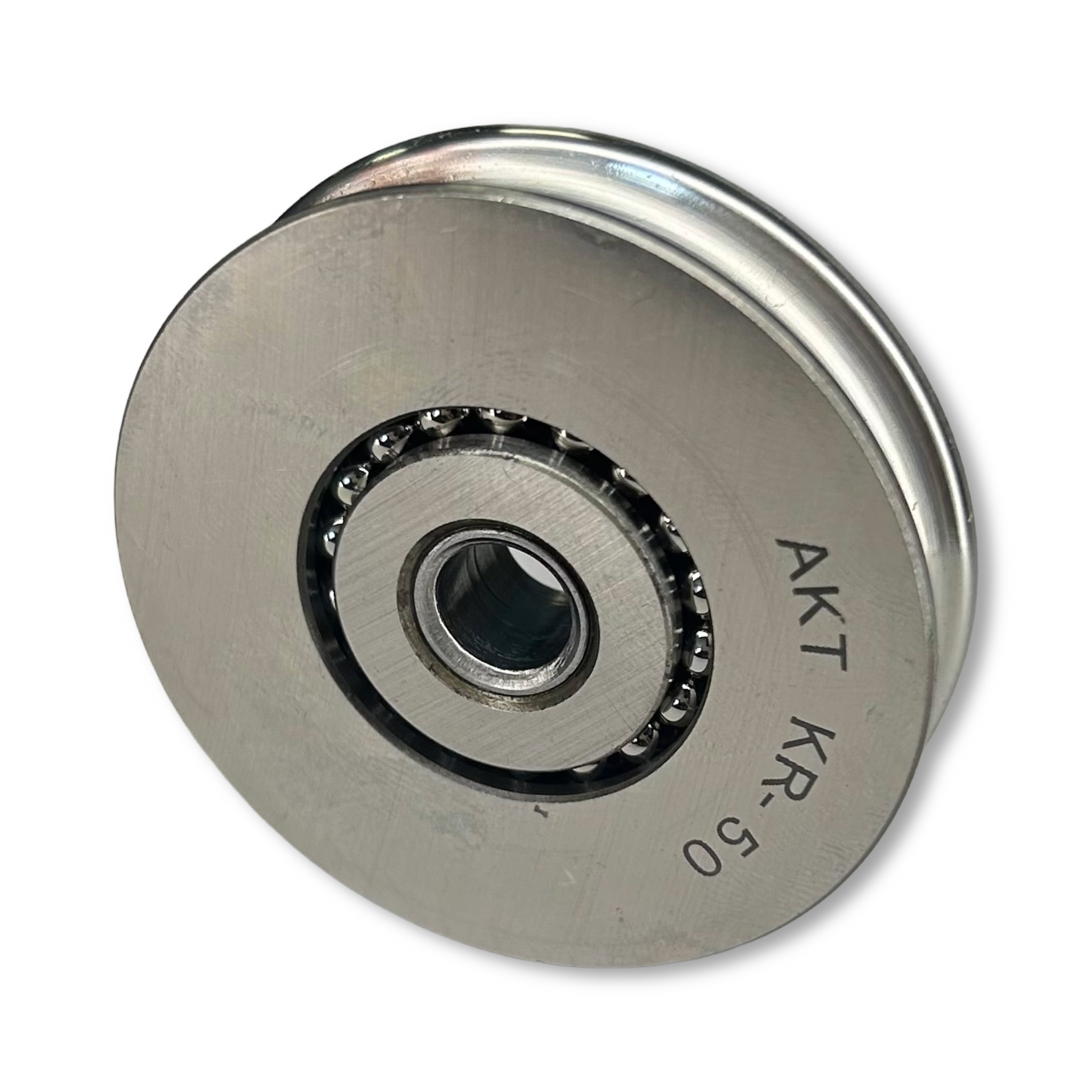

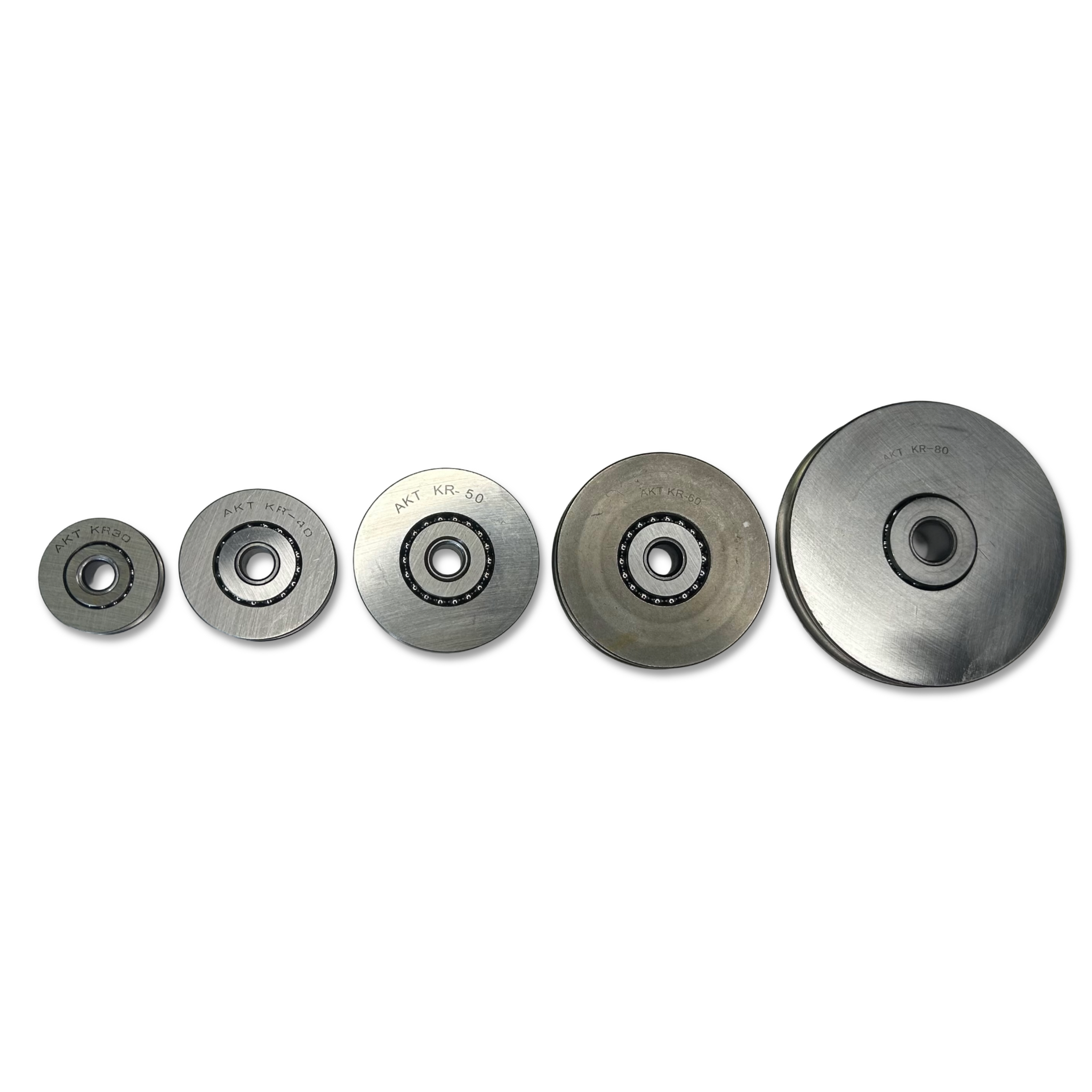

Steel Pulley with Loose Cone Ball Bearings (Model No. 1209)
Pulley with hardened finish, supplied with cone ball bearings.
Range of pulley capacity from 65kg up to 130kg
Range of pulley diameter 30mm up to 80mm
|

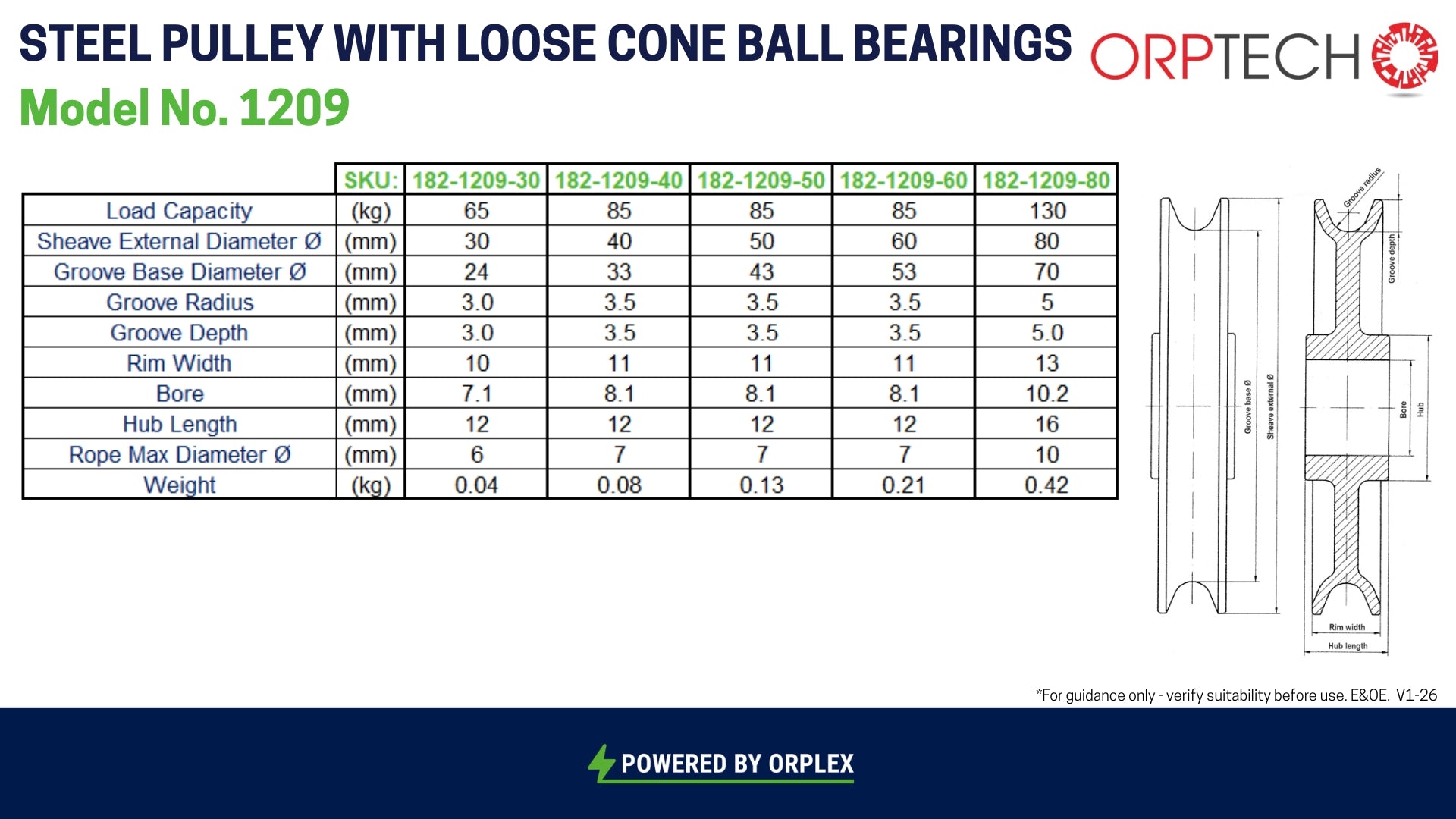

SKU |
182-1209-30 | 182-1209-40 |
182-1209-50 |
182-1209-60 | 182-1209-80 | |
|
Sheave External Ø |
mm |
30 |
40 | 50 | 60 | 80 |
|
Groove Base Ø |
mm | 24 | 33 | 43 | 53 | 70 |
|
Groove Radius |
mm | 3 |
3.5 | 3.5 |
3.5 | 5 |
|
Groove Depth |
mm | 3 | 3.5 | 3.5 | 3.5 | 5 |
|
Rim Width |
mm | 10 | 11 | 11 |
11 | 13 |
|
Bore |
mm | 7.1 | 8.1 |
8.1 |
8.1 | 10.2 |
|
Hub Length |
mm | 12 |
12 | 12 | 12 | 16 |
| Rope Ø max. |
mm | 6 | 7 | 7 | 7 | 10 |
|
Load Capacity (in kg). |
kg | 65 | 85 | 85 | 85 | 130 |
|
Weight (in kg) approx. |
kg | 0.04 | 0.08 | 0.13 | 0.21 | 0.42 |
