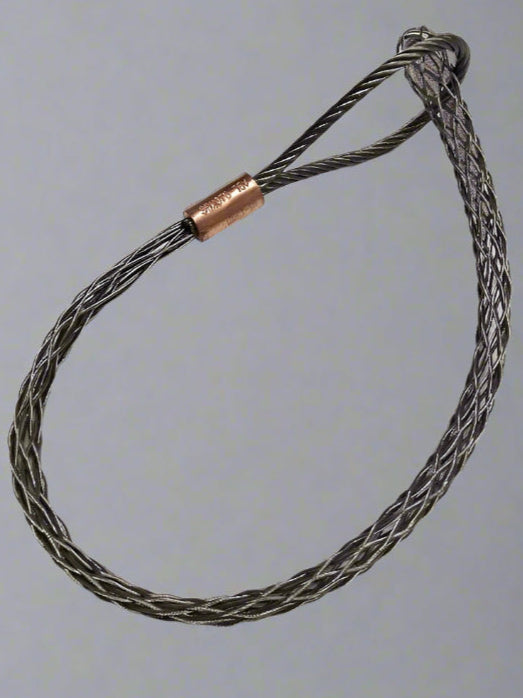

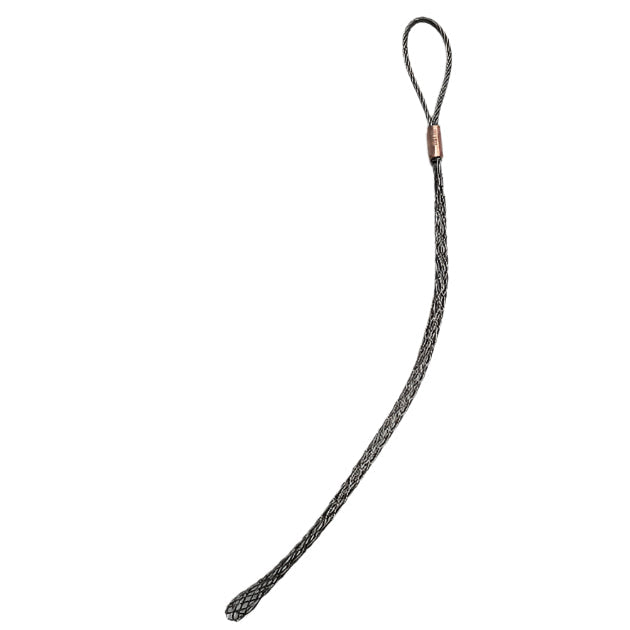

Stainless Steel Single Eye Cable Grips - Standard Grip
Ideal for pulling light to medium loads; typical application- 'standard pull' of single or group of cables, where additional support is unnecessary, or if used in conjunction with other cable grips.
These pulling grips are made of a 316 grade stainless steel; they are suitable for pulling both single cable and cable bundles.
Also known as cable pulling socks, Chinese fingers or towing socks, they are used for:
- Supporting and pulling cable,
- Installing cables
- Guiding cables through pipes or ducts
- Installing drains or pipes
Features and benefits
-
Suitable for underground installations
-
Fits easily onto electrical cables

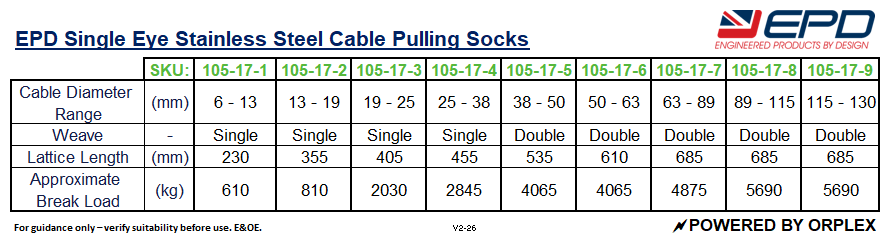

SKU |
Range (mm) |
Lattice Weave |
Lattice Length (mm) |
Overall Length (mm) |
Approx. Break Load (kg) |
105-17-1 |
6-13 |
Single |
230 |
305 |
610 |
105-17-2 |
13-19 |
Single |
355 |
430 |
810 |
105-17-3 |
19-25 |
Single |
405 |
510 |
2030 |
105-17-4 |
25-38 |
Single |
455 |
610 |
2845 |
105-17-5 |
38-50 |
Double |
535 |
735 |
4065 |
105-17-6 |
50-63 |
Double |
610 |
865 |
4065 |
105-17-7 |
63-89 |
Double |
685 |
990 |
4875 |
105-17-8 |
89-115 |
Double |
685 |
990 |
5690 |
105-17-9 |
115-140 |
Double |
685 |
990 |
5690 |
