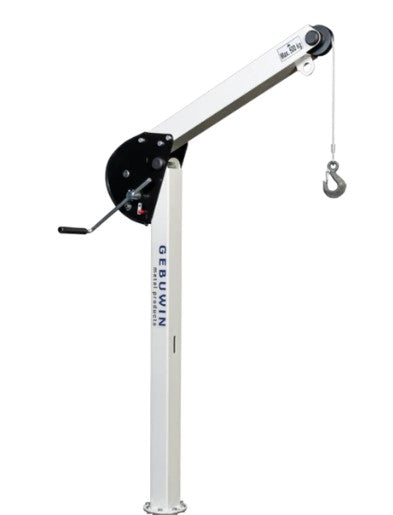

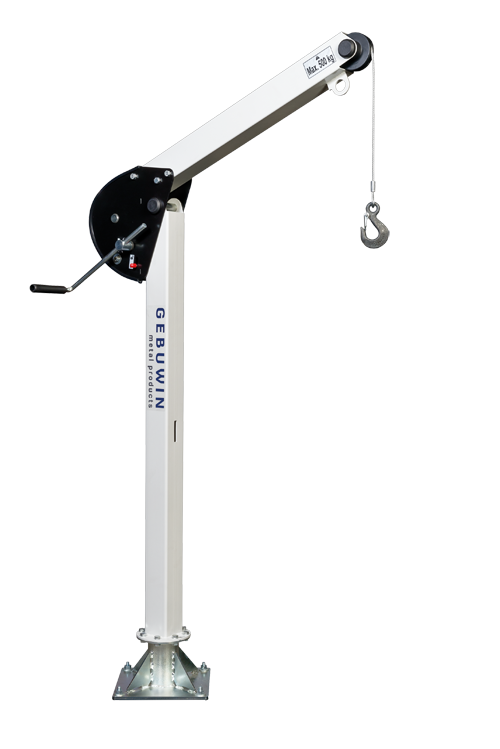

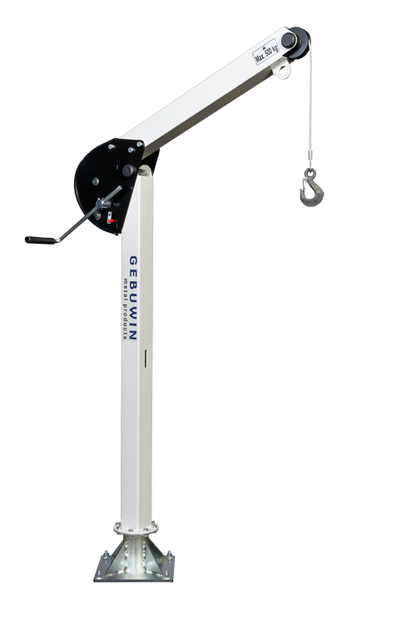

SD500 - 500kg Swivel Hoisting Davit (Built in winch with 13m Cable)

SD500 - 500kg Swivel Hoisting Davit (Built in winch with 13m Cable)

SKU: 156-22-2

Read More
Regular price £1,680.00
Regular price RRP Sale price TODAY'S PRICE £1,680.00

In stock (1)

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

Gebuwin has developed this modern designed folding swivel davit crane especially for lifting goods on location. This davit crane helps you carry out your work efficiently without the risk of physical strain. Gebuwin produces three types of lifting davits, which vary in lifting capacity and length of the boom. Because of the integrated winch and cable, the davit crane is not only compact but also low-maintenance. The crank is also adjustable in length, so that the lifting speed can be adjusted. It is a very good solution to lift or lower a load in a very user-friendly way

  • Robust and safe lifting davit crane in compliance with EN13157

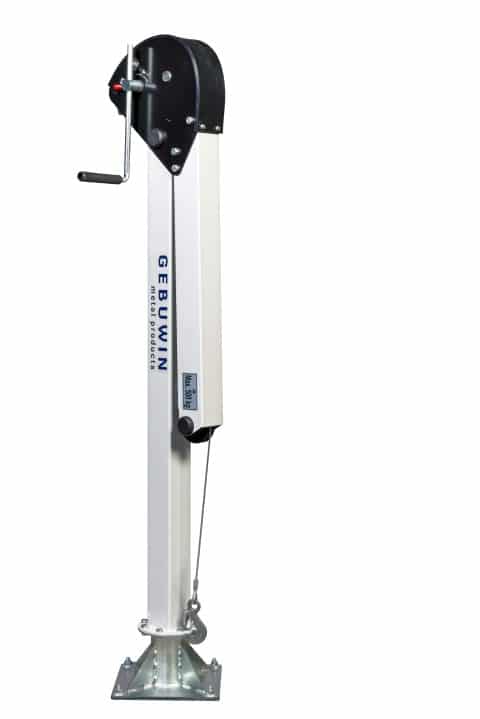

  • Ready to use in 5 seconds
  • Integrated winch and cable in an ergonomic modern design
  • Easy to transport
  • Load pressure brake with double ratchet system for safe stable hold of the load in any position
  • Possible to rotate 360° due to the use of ball bearings
  • Adjustable crank, with ergonomic grip
  • Maintenance free
  • The davit includes a 13 metre length wire rope (5mm diameter) with hook
  • Paint thickness on standard painted model is 60 – 80 micron in 1 layer and in compliance with DIN/ISO 12944, C1M – RAL 7035 (grey)
  • For enhanced corrosion resistant models with a either zinc or stainless steel finish, please contact our sales team sales@rigginguk.co.uk

Order as follows:

SKU 156-22-2 is for the Painted Finish Swivel Davit Only

SKU 156-22-4 is for the Painted Finish Swivel Davit and Zinc Socket Box/ Base

Please note if these items are not in stock in our UK warehouse, the lead-time can be up to 3 weeks from order and will be confirmed at point of order.



Technical Info

Options

ATEX certified

Capacity 1st layer

500 kg

Capacity top layer

268 kg

Rope diameter-Ø

5 mm

Rope storage top layer

13 meter

Lift per crank rotation

20 mm

Crank effort at full load

10 daN

Weight Swivel davit

30 kg

Weight floor-socket

8,9

Type name

SD500

Downloads

Duct rod data sheetProduct data sheet



Video

Product Questions & Answers

QUESTIONS & ANSWERS

Ask a Question
  • What is the reach in the standard 500kg Gebuwin Davit?

    The reach is 597mm for the standard 5000kg Gebuwin Davit
