Gebuwin

SD500 SST - 500kg Stainless Swivel Hoisting Davit (Built in winch with 13m Cable)

Name: SD500 SST - 500kg Stainless Swivel Hoisting Davit (Built in winch with 13m Cable)
Brand: Gebuwin
SKU: 156-22-32
Price: 3900.00 GBP
Availability: InStock

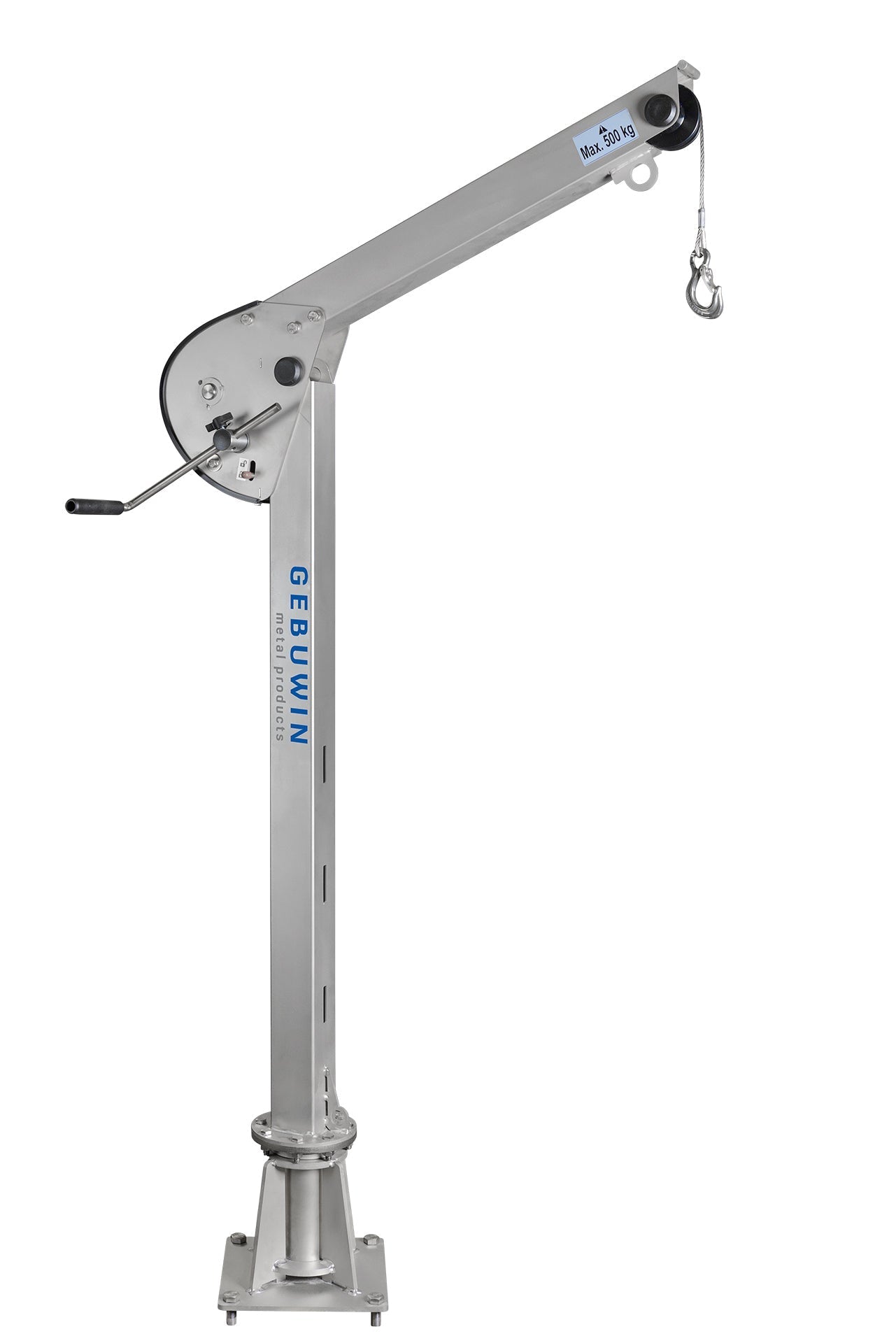

SD500 SST - 500kg Stainless Swivel Hoisting Davit (Built in winch with 13m Cable)

SKU: 156-22-32

View more gebuwin hoisting davits

SD500 SST - 500kg Stainless Swivel Hoisting Davit (Built in winch with 13m Cable)

SKU: 156-22-32

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £250

- View options

Click & Collect from BL96EY

- Collect from our warehouse

View full details

Description

Gebuwin has developed this modern designed folding swivel davit crane especially for lifting goods on location. This davit crane helps you carry out your work efficiently without the risk of physical strain. Gebuwin produces three types of lifting davits, which vary in lifting capacity and length of the boom. Because of the integrated winch and cable, the davit crane is not only compact but also low-maintenance. The crank is also adjustable in length, so that the lifting speed can be adjusted. It is a very good solution to lift or lower a load in a very user-friendly way

Specifications

Robust and safe lifting davit crane in compliance with EN13157
Ready to use in 5 seconds

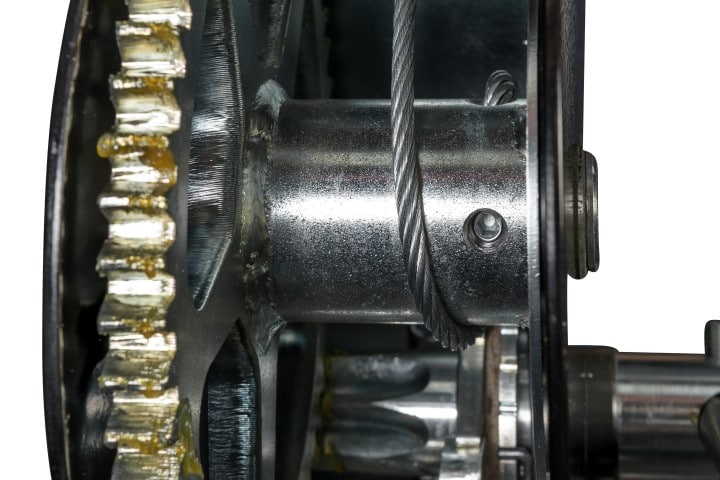

Integrated winch and cable in an ergonomic modern design
Easy to transport
Load pressure brake with double ratchet system for safe stable hold of the load in any position
Possible to rotate 360° due to the use of ball bearings
Adjustable crank, with ergonomic grip
Maintenance free
Comes supplied with 13 meter length wire rope (DIA 5 mm) with hook as standard
Stainless steel grade 316 body
For standard painted (GR) or enhanced corrosion resistant models with zinc painted finish (EV), please contact our sales team sales@winchshop.co.uk

SKU 156-22-32 is for the Swivel Davit Only

SKU 156-22-37 is for the Swivel Davit and Socket Box

Please note if these items are not in stock in our UK warehouse, the lead-time can be up to 3 weeks from order and will be confirmed at point of order.

Technical Info

Use near salt of fresh water	Salt
Options	ATEX certified
Capacity 1st layer	500 kg
Capacity top layer	268 kg
Rope diameter-Ø	5 mm
Rope storage top layer	13 meter
Lift per crank rotation	20 mm
Crank effort at full load	10 daN
Weight Swivel davit	30 kg
Weight floor-socket	8,9
Type name	SD500 SST
