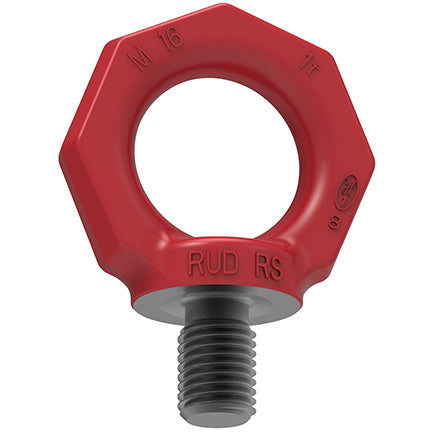

RS Eye Bolt, Metric Thread
- Captive but exchangeable ICE-Bolt
- Bracket adjustable in force direction
- Comprehensive range of thread
-
High-tensile eye bolts - Considerably Higher WLL than DIN 580 or BS Eyebolts
-
Comprehensive range of threads (M6 through to M48) and WWL (100kg to 8,000kg)
-
Forged, tempered and 100% crack detected.
-
Fool-proof compared with common DIN eye bolts by:
-
Shape: Octagonal means quality class 8
-
Identification: Distinct indication of WLL for the most unfavourable case (lateral load - not allowed with DIN 580).
-
Ensure the eye bolt is bolted down flush to the surface! Avoid twisting movements during transport.
Sizes M6 to M30 are generally available from stock in quantities of four or less. For a quantity of 5 or more or for sizes above M30 please contact our sales team for availability - sales@rigginguk.co.uk
Downloads
Hand book
RS Eye bolt, metric thread
