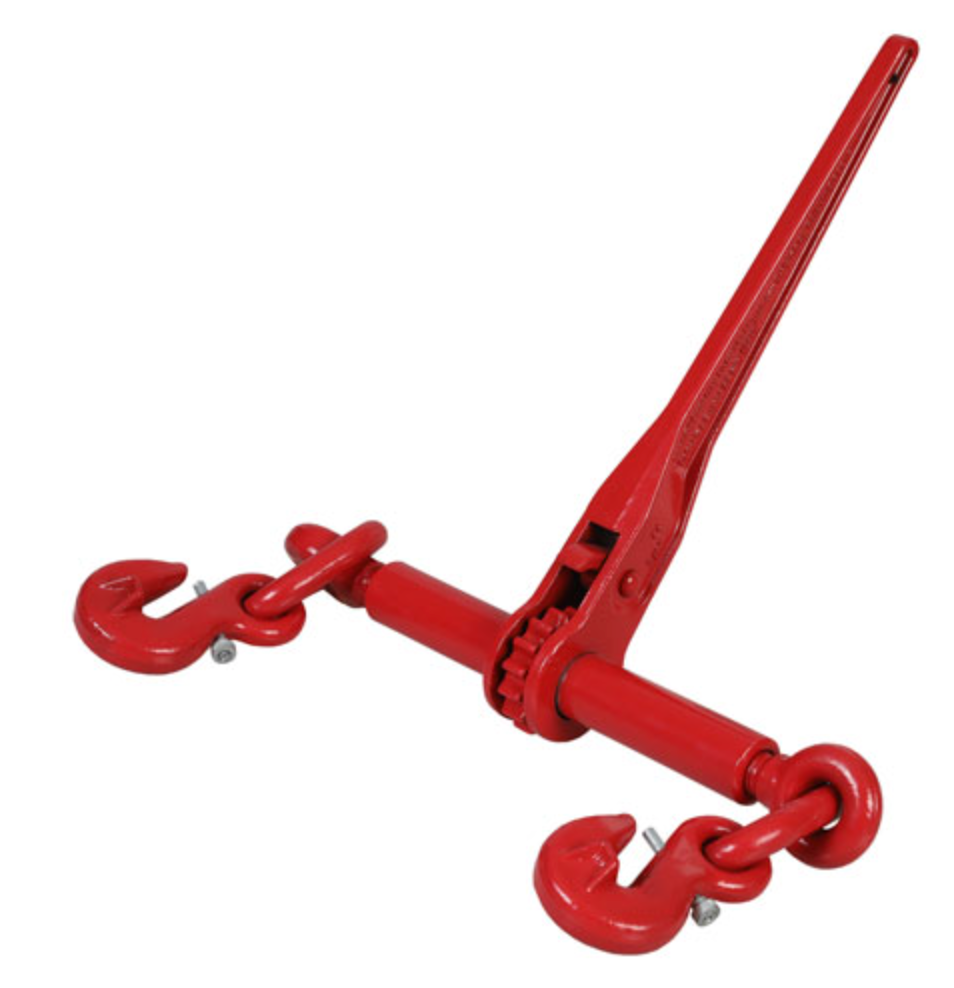

Ratchet Type Loadbinder BS EN 12195-3
- Drop forged, cast steel, quenched and tempered.
- Red painted finish.
- Meets the performance requirements of BS EN 12195-3.
- Fitted with reinforced grab hooks complete with safety securing pin.
- Special securing device prevents threads coming out.
- Marked with L.C, M.B.F, manufacturers ID, size and product ID mark.
- Certification - Declaration of Conformity

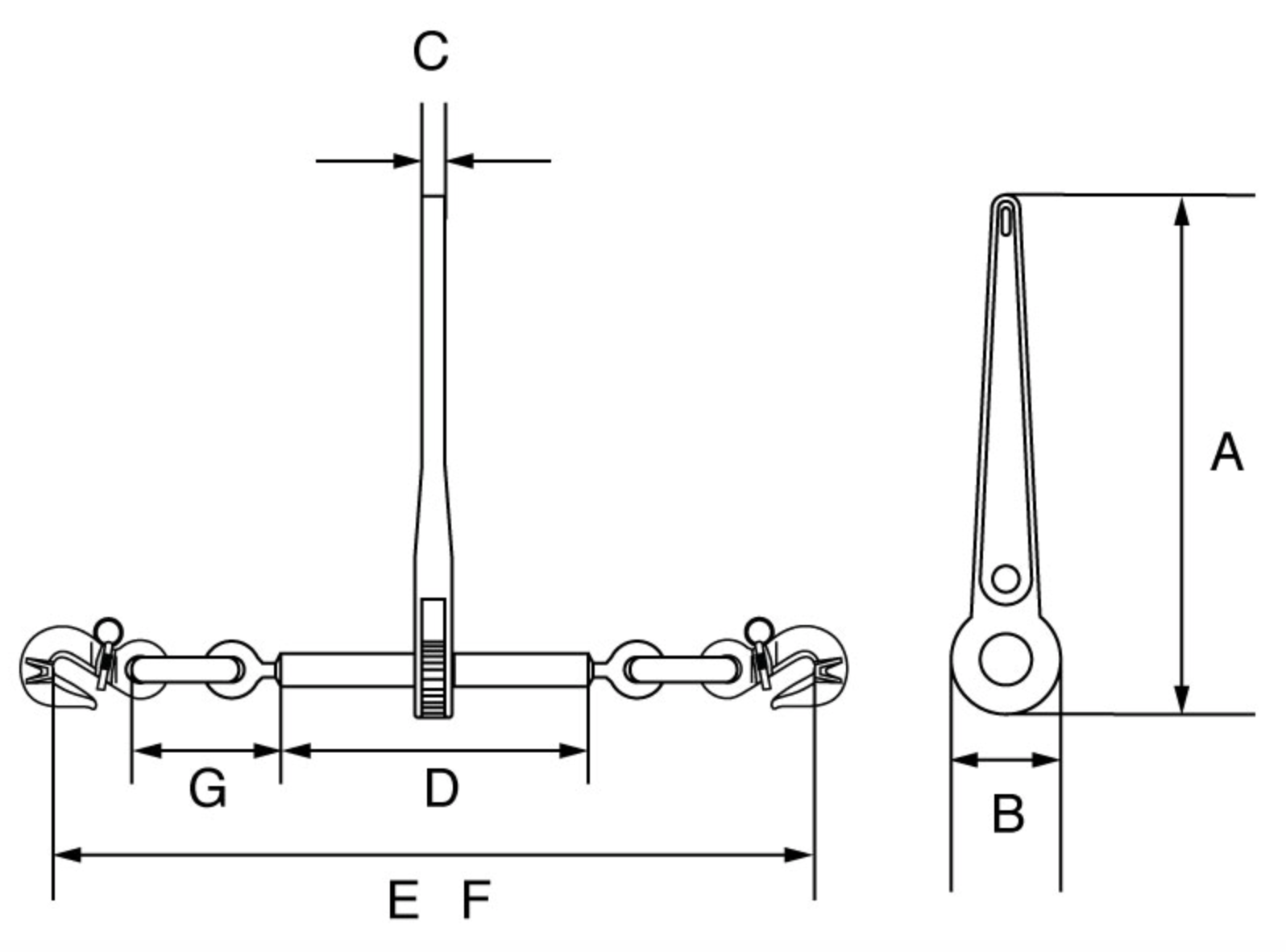

Spec
SKU
|
Chain Dia |
A |
B |
C |
D |
E |
F |
G |
Take Up |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
286-1000-1
|
8 |
355 |
66 |
16 |
252 |
742 |
573 |
11 |
169 |
286-1000-2
|
10 |
355 |
66 |
16 |
252 |
789 |
620 |
13 |
169 |
286-1000-3
|
13 |
355 |
66 |
16 |
252 |
866 |
703 |
17 |
163 |
286-1000-4
|
16 |
355 |
66 |
16 |
252 |
892 |
733 |
20 |
159 |
Chain Dia |
L.C. |
M.B.F. |
Weight |
mm |
kN |
kN |
kgs |
8 |
40 |
80.4 |
4.5 |
10 |
63 |
126 |
5.4 |
13 |
100 |
212 |
7.7 |
16 |
160 |
322 |
10.2 |
