Portable Winch
SKU: 167-3-2
Portable Winch
SKU: 167-3-2
Read MoreOut of stock (0)
If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk
Through PayPal Credit - Find out more

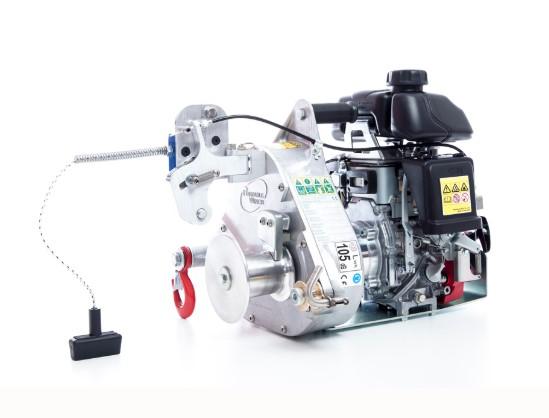

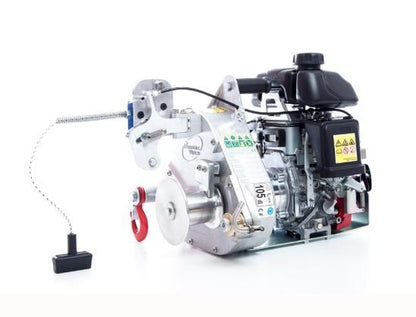

PCH1000 Petrol Winch Pull/Lift Version
The ideal tool for lifting a load!
The PCH1000 has been designed specifically for lifting applications on a work site such as assembling telecommunications structures or installing various equipment. It can lift a load of 250 kg with a single line and a pulley system doubles the strength to 500 kg.
Its integrated rope grabbing system (brake) will hold the load in position allowing the operator to work safely.
This system can be used to lift or lower a load. A wide of accessories are available to simplify the installation process and anchor the winch at various anchoring points such as a vehicle, a post, a pylon and more.
Find out more by downloading the user manual.
*Accessories sold separately.
*Note: One (1) anchor polyester sling 60 mm x 2 m is always included with every winch
WARRANTY
Private use : 2 years
Commercial use : 1 year
Engine/Motor : Honda International Warranty
Additional information : Register your winch at www.portablewinch.com and get 1 EXTRA YEAR of warranty for FREE !
GTIN / EAN13: 690581001130

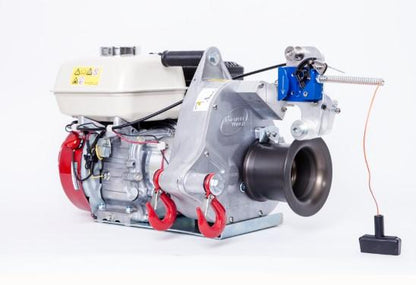

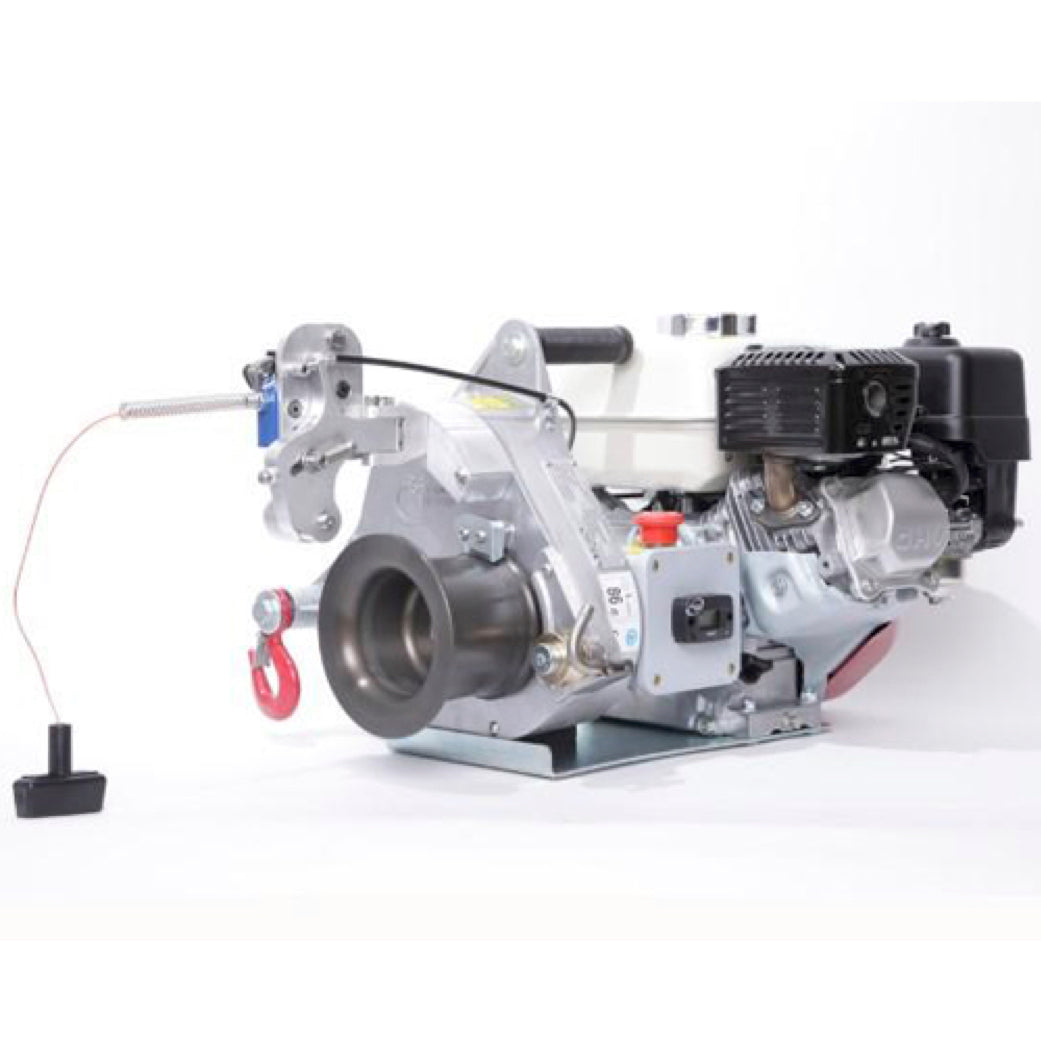

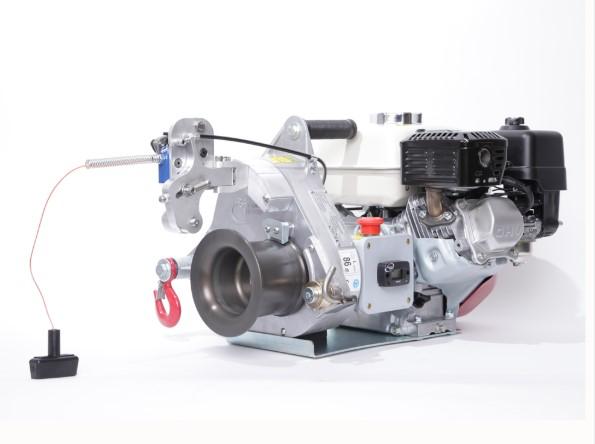

PCH2000 Petrol Winch Pull/Lift Version Ref 167-3-2
For maximum lifting capacity!

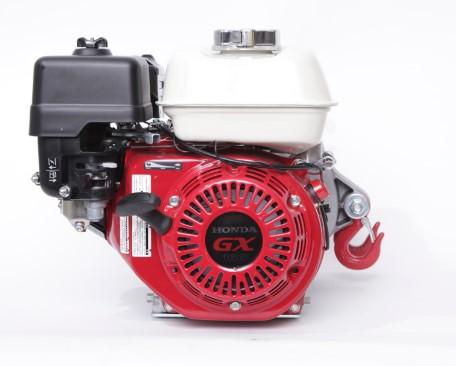

The PCH2000 is equipped with a Honda GX-160 cc engine which offers superior performances in a wide variety of tasks such as erecting towers, lifting antennas, replacing insulators, cable pulling and other arduous tasks.
This winch can lift a load of up to 450 kg with a single line and a pulley system doubles the strength to 900 kg.
The integrated rope grabbing system allows the operator to work safely and the start/stop mechanism means he can focus on the task required.
This system can be used to lift or lower a load.
A wide of accessories are available to simplify the installation process and anchor the winch at various anchoring points such as a vehicle, a post, a pylon and more.
Find out more by downloading the user manual.
*Accessories sold separately.
*Note: One (1) anchor polyester sling 60 mm x 2 m is always included with every winch
WARRANTY
Private use : 2 years
Commercial use : 1 year
Engine/Motor : Honda International Warranty
Additional information : Register your winch at www.portablewinch.com and get 1 EXTRA YEAR of warranty for FREE !
GTIN / EAN13: 690581006197
PCH1000 Petrol Winch Pull/Lift Version Ref: 167-3-1
| Manufacturer | PORTABLE WINCH |
|---|---|
| Max Pull Capacity | 775kg |
| Max Lifting Capacity | 250kg |
| Installed Capstan Size | 57mm (Optional 85mm Drum Available - Reduces Load Capacity) |
| Speed with Installed Capstan | 12 m/min |
| Rope Size | Min 12mm | Max 13mm | Ideal 12mm |
| Engine/Motor | Honda 4-stroke GXH-50 cc |
| Gear Ratio | 110:1 |
| Dry Weight | 19kg |
| GTIN / EAN13 | 690581001130 |
PCH2000 Petrol Winch Pull/Lift Version Ref: 167-3-2
| Manufacturer | PORTABLE WINCH |
|---|---|
| Max Pull Capacity | 1150kg |
| Max Lifting Capacity | 450kg |
| Installed Capstan Size | 108mm |
| Speed with Installed Capstan | 20 m/min |
| Rope Size (Diameter) | Min 12mm | Max 13mm | Ideal 12mm |
| Engine/Motor | Honda GX-160 cc |
| Gear Ratio | 53:1 |
| Dry Weight | 34.5kg |
| GTIN / EAN13 | 690581006197 |
User Guide
Be the first to ask a question about this.
