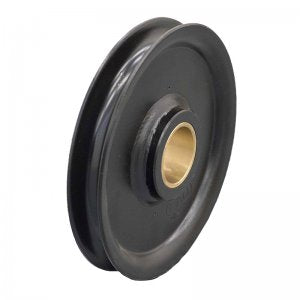

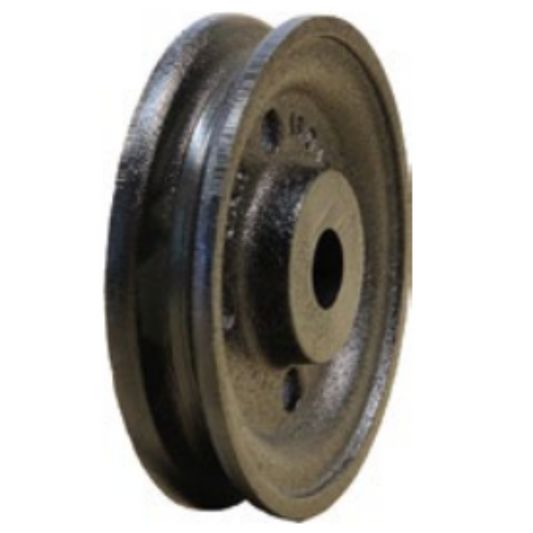

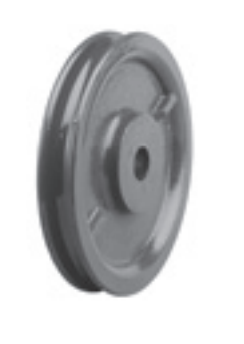

Wire Rope Sheaves Made of Steel with Plain Bearing - Type "ST/R" (Model No. 37)
No 37 pulley is made of polyamide or steel, compatible with wire rope blocks.
Available with plain bearing (polymide & steel), or in the steel version with with roller bearing or precision ball bearing.
Sheave sizes 100 - 150mm Ø available in polyamide PA 6G.
Sheave sizes 100 - 600mm Ø available in steel S355.
All dimensions in mm.
Model 37 Wire Rope Sheave is available in the following "types" :
- PA = made of polyamide with plain bearing
- ST/R = made of steel with plain bearing
- ST/W = made of steel with roller bearing
- ST/K = made of steel with precision ball bearing

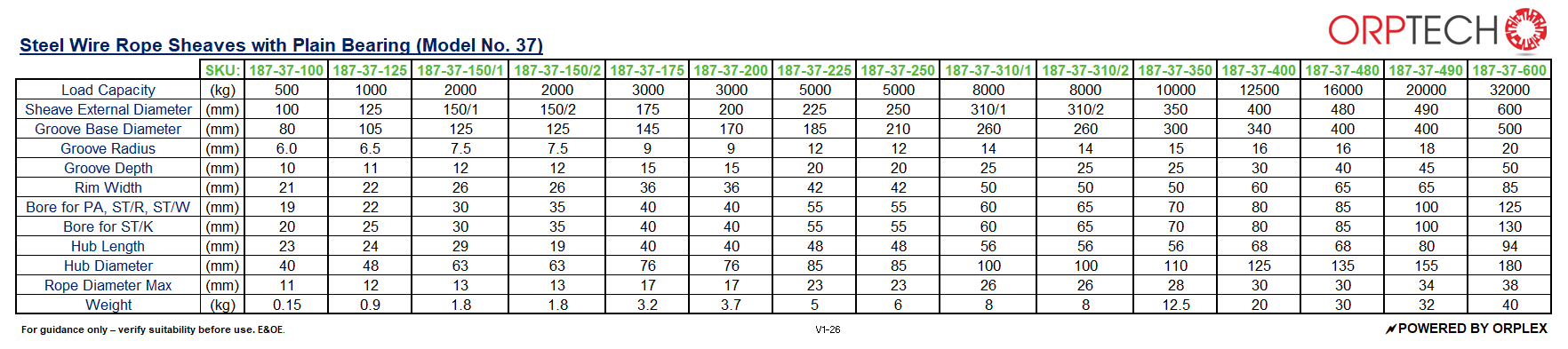

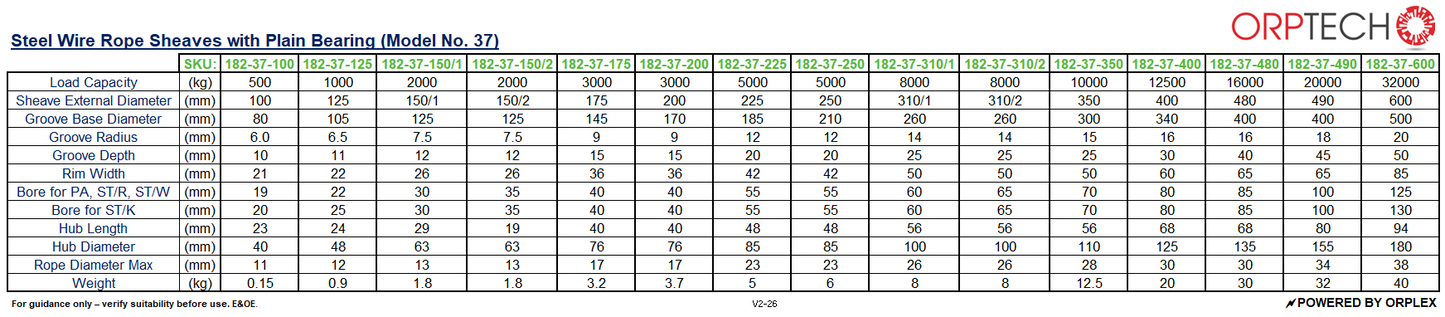

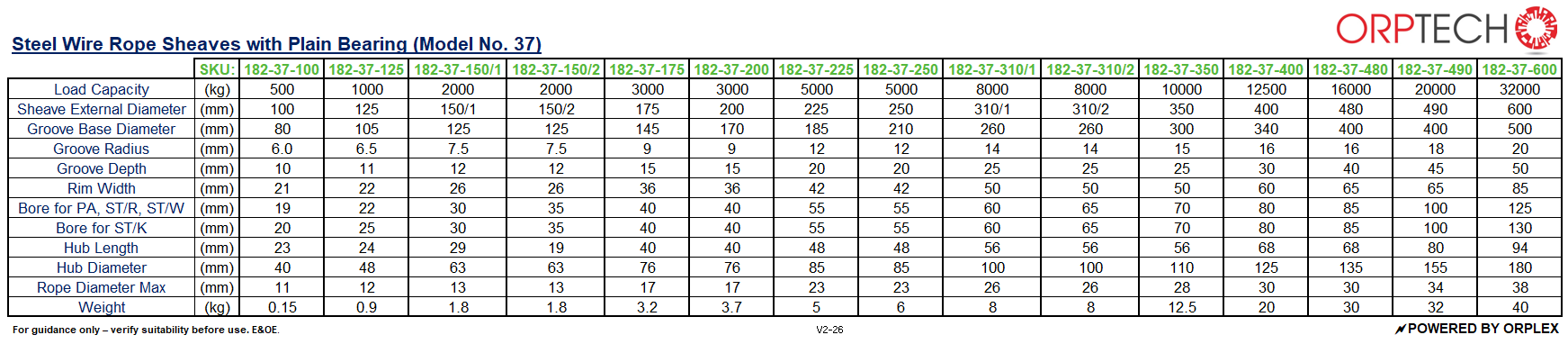

Spec
SKU |
182-37-100
|
182-37-125 |
182-37-150/1 |
182-37-150/2 |
182-37-175 |
182-37-200 |
182-37-225 |
182-37-250 |
182-37-310/1 |
182-37-310/2 |
182-37-350 |
182-37-400 |
182-37-480 |
182-37-490 |
182-37-600 |

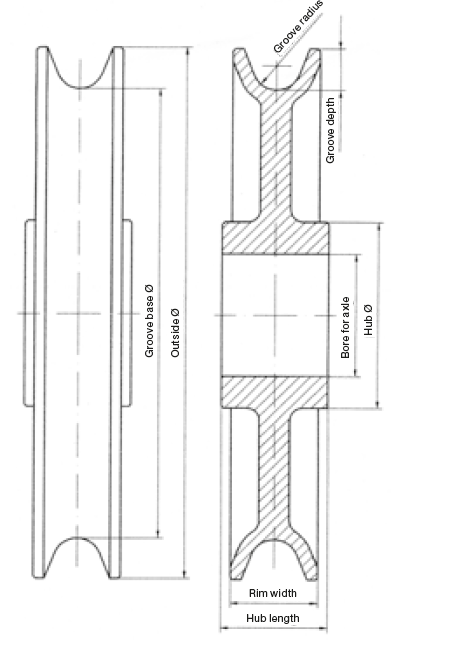

Sheave External Ø
|
100
|
125
|
150/1
|
150/2 |
175 |
200 |
225 |
250 |
310/1 |
310/2 |
350 |
400 |
480 |
490 |
600 |
Groove Base Ø
|
80 |
105 |
125 |
125 |
145 |
170 |
185 |
210 |
260 |
260 |
300 |
340 |
400 |
400 |
500 |
Groove Radius
|
6 |
6.5 |
7.5 |
7.5 |
9 |
9 |
12 |
12 |
14 |
14 |
15 |
16 |
16 |
18 |
20 |
Groove Depth
|
10 |
11 |
12 |
12 |
15 |
15 |
20 |
20 |
25 |
25 |
25 |
30 |
40 |
45 |
50 |
Rim Width
|
21 |
22 |
26 |
26 |
36 |
36 |
42 |
42 |
50 |
50 |
50 |
60
|
65
|
65
|
85 |
Bore for PA, ST/R, ST/W
|
19 |
22 |
30 |
35 |
40 |
40 |
55 |
55 |
60 |
65 |
70 |
80 |
85 |
100 |
125 |
Bore for ST/K |
20 |
25 |
30 |
35 |
40 |
40 |
55 |
55 |
60 |
65 |
70 |
80 |
85 |
100 |
130 |
Hub Length
|
23 |
24 |
29 |
19 |
40 |
40 |
48 |
48 |
56 |
56 |
56 |
68 |
68 |
80 |
94 |
Hub Ø
|
40 |
48 |
63 |
63 |
76 |
76 |
85 |
85 |
100 |
100 |
110 |
125 |
135 |
155 |
180 |
Rope Ø Max.
|
11 |
12 |
13 |
13 |
17 |
17 |
23 |
23 |
26 |
26 |
28 |
30 |
30 |
34 |
38 |

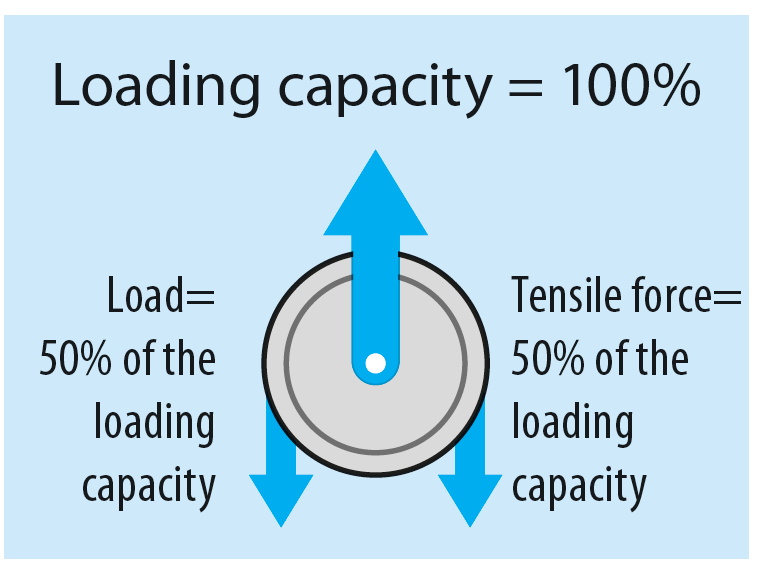

Load Capacity (in kg).
|
500 |
1000 |
2000 |
2000 |
3000 |
3000 |
5000 |
5000 |
8000 |
8000 |
10000 |
12500 |
16000 |
20000 |
32000 |
Weight (in kg) approx.
|
0.15 |
0.9 |
1.8 |
1.8 |
3.2 |
3.7 |
5 |
6 |
8 |
8 |
12.5 |
20 |
30 |
32 |
40 |
