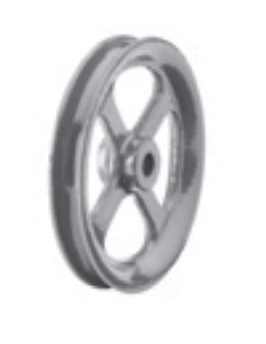

Lightweight Rope Sheaves made of Cast Iron (Model No. 28)
With narrow, deep, turned groove, drilled shaft hole, with straight spokes, compatible with fixed rollers No. 161.
Range of pulley capacity from 125kg to 150kg
Range of pulley diameter from 80mm to 130mm
Specification
SKU |
|
182-28-80
|
182-28-100 |
182-28-130 |
Sheave External Ø
|
mm
|
80
|
100
|
130
|
Groove Base Ø
|
mm
|
67 |
83 |
108 |
Groove Radius
|
mm
|
4.5 |
5.5
|
6.5
|
Groove Depth
|
mm
|
6.5 |
8.5 |
11
|
Rim Width
|
mm
|
13 |
16
|
19
|
Bore for Bolt
|
mm
|
8
|
10
|
12 |
Hub Length
|
mm
|
17
|
19
|
23
|
Hub Ø
|
mm
|
20
|
2
|
28
|
Rope Ø Max.
|
mm
|
8
|
10 |
12
|
Load Capacity (in kg).
|
kg
|
125
|
130
|
150
|
Weight (in kg) approx.
|
kg
|
0.18
|
0.3 |
0.48 |
