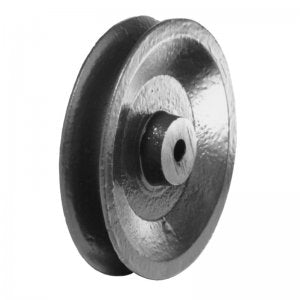

Wire Rope Sheaves made of Cast Iron (Model No. 167)
Untreated groove, drilled shaft hole without bearing bush.
Range of pulley capacity from 250kg to 2000kg
Range of pulley diameter 140mm to 250mm
Please note, these products have a lead-time of around 3 to 4 weeks from order date
|
SKU |
182-167-140 | 182-167-200 | 182-167-250/1 | |
|
Sheave External Ø |
mm |
140 |
200 |
250/1 |
|
Groove Base Ø |
mm |
100 | 140 | 185 |
|
Groove Radius |
mm |
3 |
4 |
6 |
|
Groove Depth |
mm |
20 | 30 |
32 |
|
Rim Width |
mm |
28 |
40 |
42 |
|
Bore for Bolt |
mm |
12 |
16 | 22 |
|
Hub Length |
mm |
35 |
45 |
50 |
| Hub Ø | mm | 35 |
35 | 35 |
|
Rope Ø Max. |
mm |
6 | 8 | 12 |
|
Load Capacity (in kg). |
kg |
250 |
1000 |
2000 |
|
Weight (in kg) approx. |
kg |
1.1 |
2.3 |
6.3 |
