Design: Lightweight aluminium construction, net weight of 66kg
-
Lifting Capacity: Capable of lifting up to 181kg
-
Lifting Height: Maximum lifting height of 2.5m
-
Wide Legs: Extra wide legs provide a fork width of 1100mm.
-

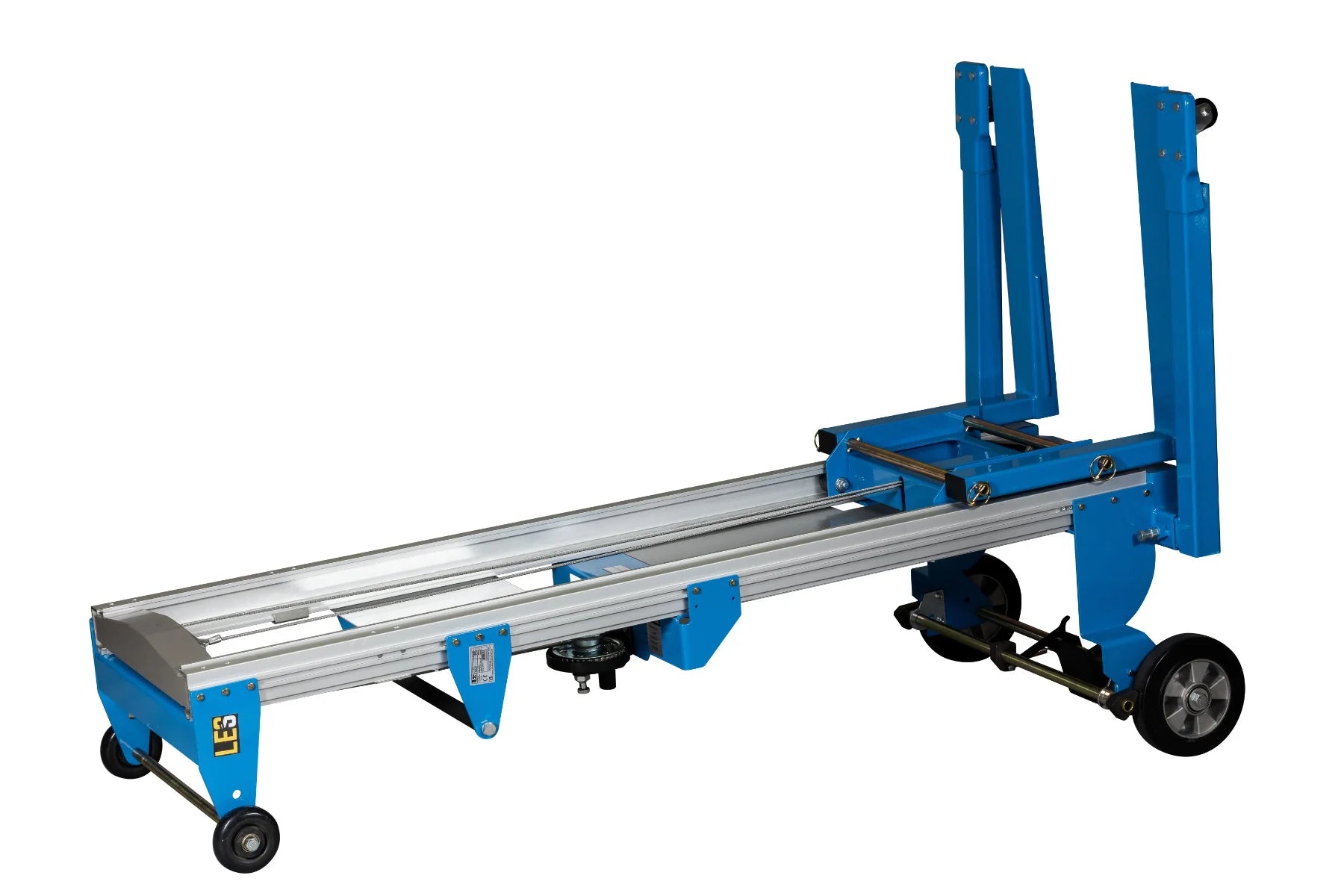

Versatility: Can be used as a trolley for added convenience
-
Compliance: Conforms to EN1757-1 standards
When seeking a lightweight hand stacker versatility and innovation is exactly what we're looking for, with the Lightweight Aluminium Hand Stacker it's exactly what you get! Thanks to an innovative lightweight aluminium design the foldable stacker boasts a net weight of just 66kg whilst a grand lifting height of 2.5m.

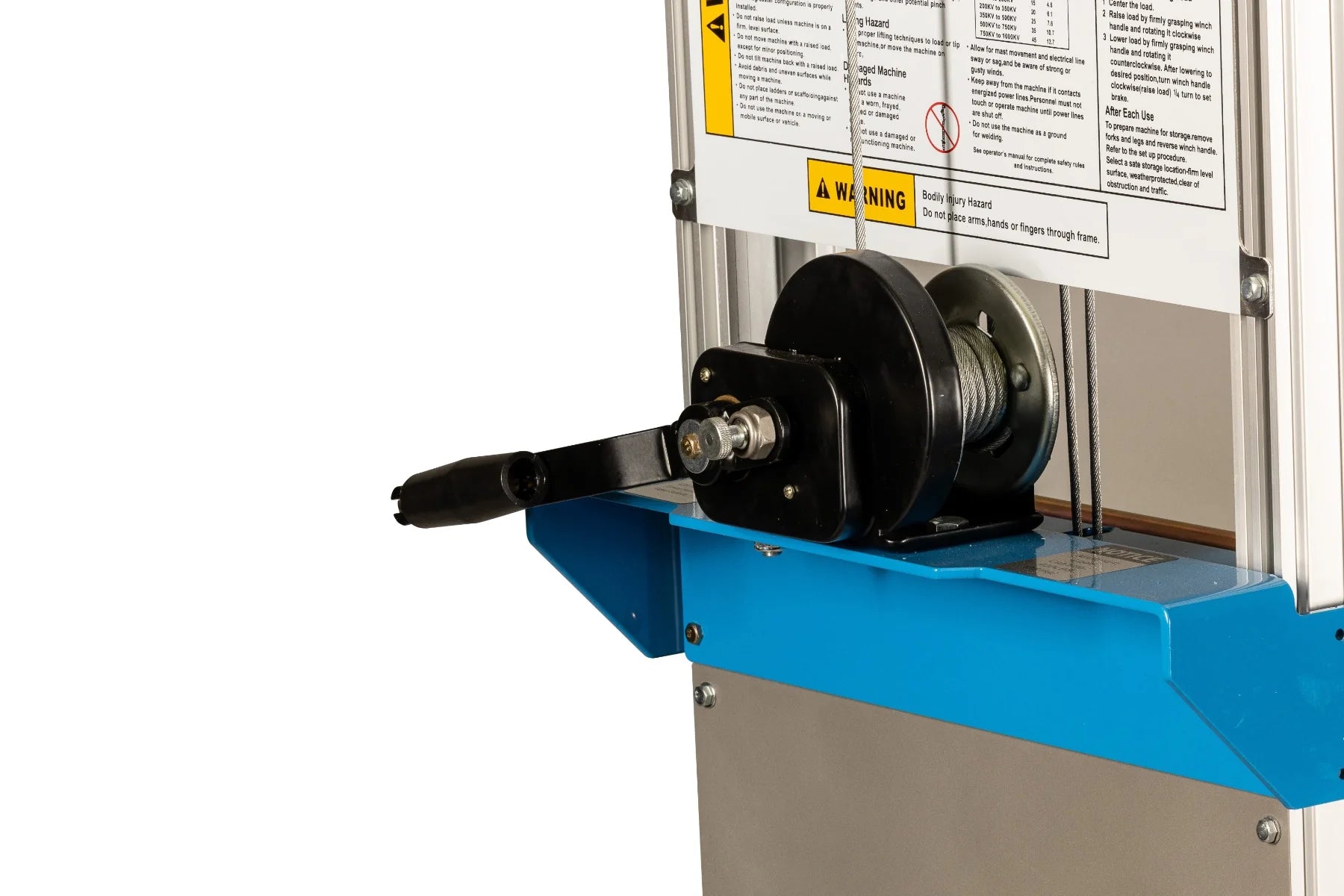

Lifting up to 181kg on the forks is made easy thanks to a cable type wire rope winch system, whilst the stacker is protected from rolling away with built-in brakes on the larger rear wheels. The stacker conveniently doubles up as a trolley by utilising the swivelling wheels fitted to the top of the mast. Extra wide legs provide a fork width of 1100mm.
Specification
SKU |
|
403-17-2 |
Capacity Per Pair |
kgs |
181 |
Load Centre |
mm |
254 |
Max. Fork Height (2 Stage) |
mm |
2500 |
Closed Height |
mm |
1730 |
Depth (Front to Back) |
mm |
1080 |
Min. Lifting Fork Height |
mm |
50 |
Base Leg Max Width |
mm |
1100 |
Lifting Forks Outer Width |
mm |
515 |
Lifting Forks Inner Width |
mm |
310 |
Stabilising Forks Outer Width |
mm |
725-1100 |
Stabilising Forks Inner Width |
mm |
545-920 |
Fork Length |
mm |
570 |
Weight |
kgs |
66 |
Finish |
|
Aluminium |
Standards |
|
EN 1757-1:2001 |
Directives |
|
EC Machinery Directive: 2006/42/EC, Machinery (Safety) Regulations 2008 |
Downloads
Product data sheet
