KITO - Grade 10 Swivel Self Locking Hook with Ball Bearing to BS-EN 1677-4
Skip to product information
1 of 2

KITO Weissenfels

KITO - Grade 10 Swivel Self Locking Hook with Ball Bearing to BS-EN 1677-4

KITO - Grade 10 Swivel Self Locking Hook with Ball Bearing to BS-EN 1677-4

SKU: 286-230-1

Read More
Regular price £112.99
Regular price RRP Sale price TODAY'S PRICE £112.99

In stock

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

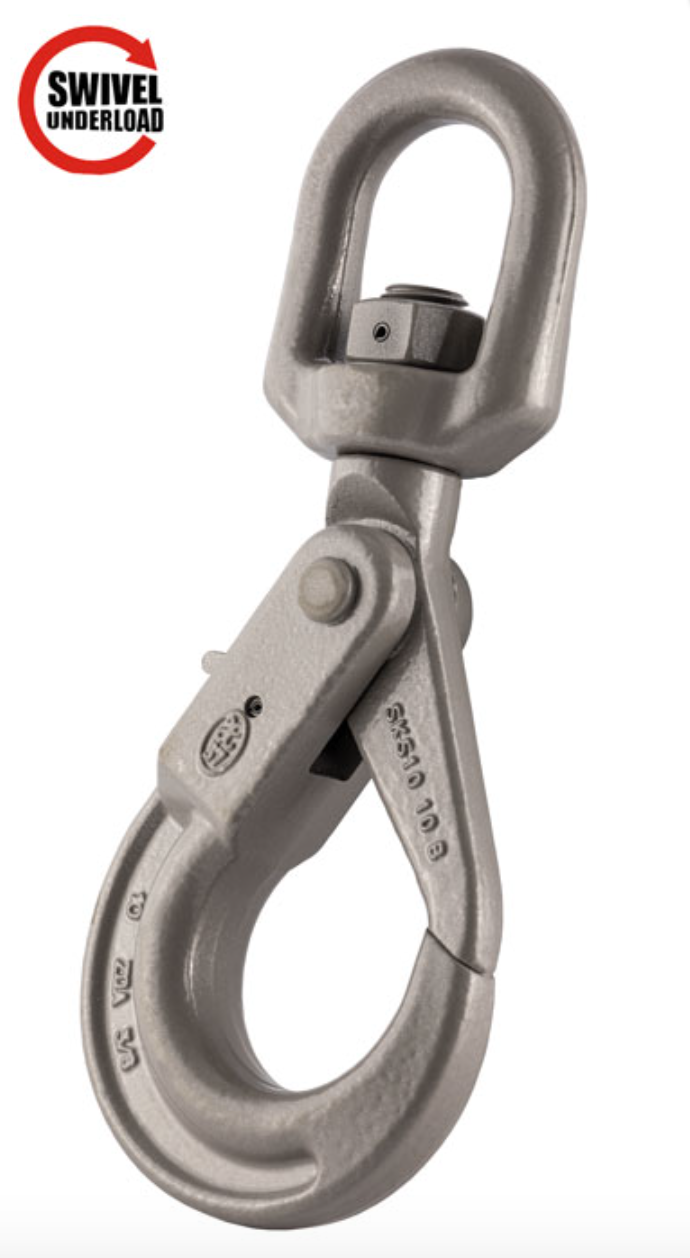

Grade 10 Swivel Self Locking Hook with Ball Bearing
  • Grade 10 alloy steel, quenched and tempered.
  • Grey painted finish.
  • Meets the performance requirements of BS EN 1677-4 +25% of loads.
  • Large swivel eye makes assembly easier.
  • Ball bearing enables rotation under load.
  • Marked with material grade, manufacturers ID, size, product ID mark and traceability code.
  • Certification - Declaration of Conformity

            Spec

            SKU
            Chain Dia D E F G H O R
            mm mm mm mm mm mm mm mm
            286-230-1
            6 35 13 35 16 20.5 28 160
            286-230-2
            7/8 43.5 13 35 20 26 34 181
            286-230-3
            10 56 16 42 24.5 30 45 218
            286-230-4
            13 69 20 49 34.5 40 51.5 269
            286-230-5
            16 80 24 60 35.5 50 60 319



            Technical Data

            SKU Chain Dia W.L.L. M.P.F. M.B.F. Weight
            mm t kN kN kgs
            286-230-1 6 1.4 35.3 56.5 0.8
            286-230-2 7/8 2.5 62.8 100 1.1
            286-230-3 10 4 98.2 157 2
            286-230-4 13 6.7 166 265 4
            286-230-5 16 10 251 402 7.3
