DESCRIPTION

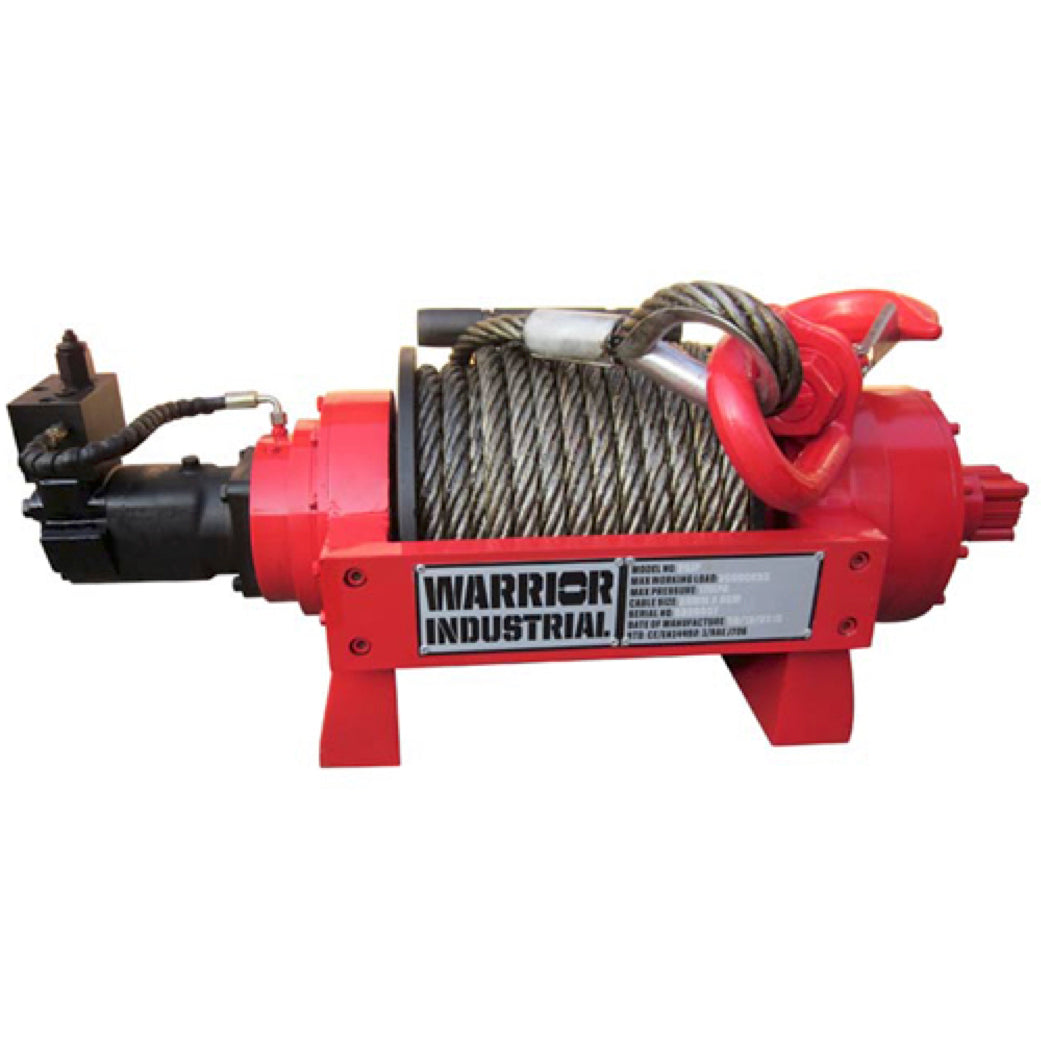

Tough and compact, the JP series are heavy duty hydraulic winches designed and tested for toughest applications. Minimum rope to drum ratio of 10:1, multi disc frictional brake, balance valve and rope tensioner as standard. Manufactured to meet GJB82-86 National Military Standard
Outstanding Features
- Full Float Heavy Duty Planetary Gearing
- Multi Disc Friction Brake
- High Torque Industrial Motor
- Air and Manual Clutch Operation
- Heavy Duty Rope Tensioner as Standard
- Minimum 10:1 Rope/Drum Ratio
- Balance Valve as Standard
ACCESSORIES INCLUDED
Spec
Rated Line Pull |
44092 lbs (20000 kg) |
Motor |
2465 PSI (17 Mpa) |
Gearing |
36:1 |
Braking Action |
Auto Hydraulic |
Drum Size - Dia x L |
210 x 340mm (8.2 x 13.39 in) |
Cable - Dia x L |
26mm x 50m (1.02 in x 164 ft) |
Dimensions |
1224 x 640 x 420mm (48.19 x 25.2 x 16.5 in) |
Mounting Pattern |
532 x 160/280mm (20.9 x 6.3 / 11.02 in) |
Weight kg |
485 kg (1069 lbs) |
Max Flow L/min |
120 |
Max Pressure Mpa |
17 |
Clutch |
Air Clutch |
Working Speed |
6m/min |
Response Pressure of Arrester |
<2.5 Mpa |
Certification |
CE Certified |
