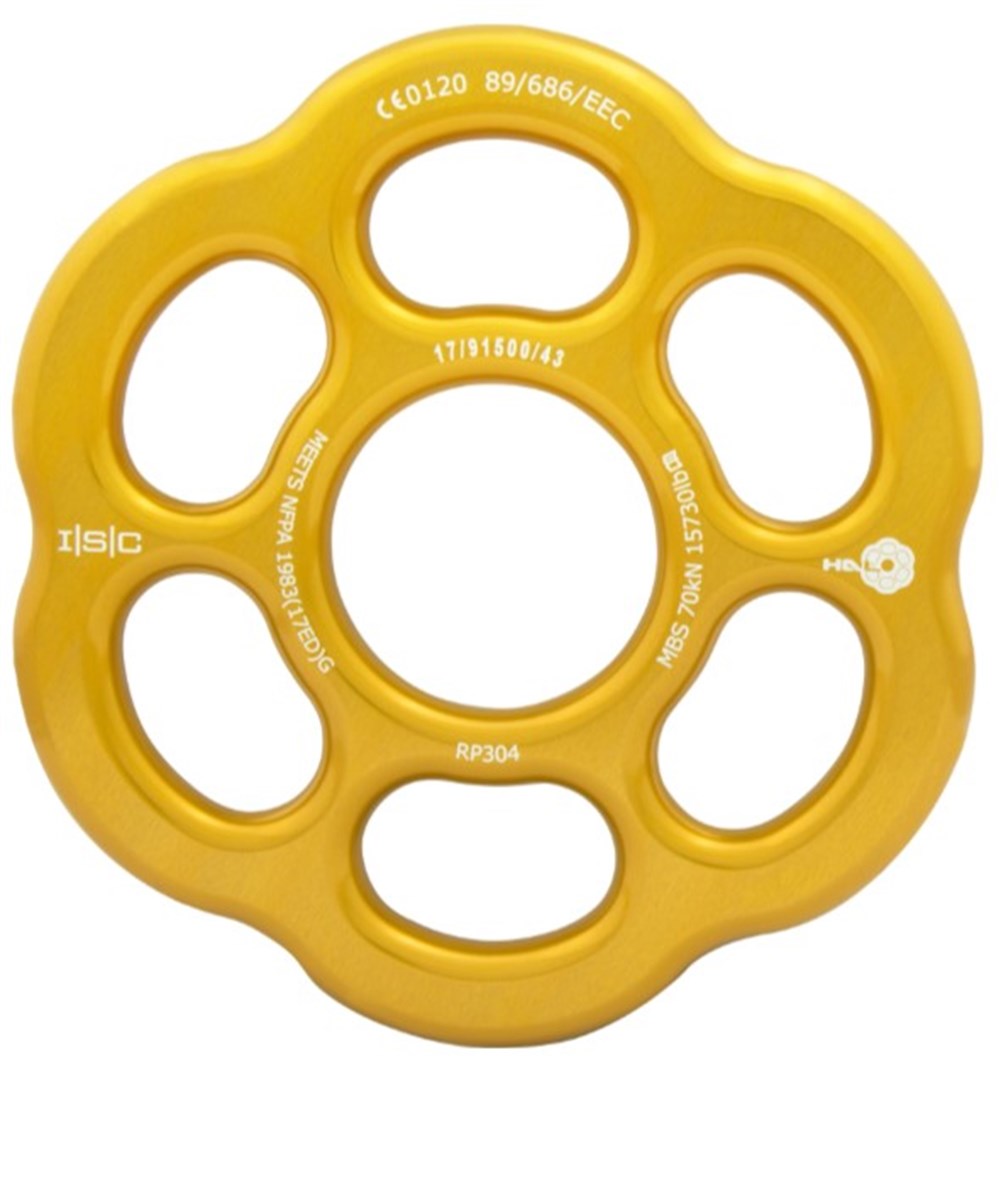

ISC Large HALO Rigging Plate - 70kN - Gold
HALO Rigging Plates form part of a compatible system and were developed to match the ratings on our Karabiners and Prussik pulleys at 40kN/ (8992lbf), 50kN (11,240lbf) and 70kN (15,736lbf).
Each plate is manufactured from aerospace grade Aluminium and feature uniquely shaped apertures which allow for loading with multiple Karabiners simultaneously. CNC machined radiused edges make the apertures rope and webbing friendly.
Spec
(MBS) Minimum Breaking Strength (kN): 70
(MBS) Minimum Breaking Strength (lbf): 15736
Serial numbering: As standard
EZYiD: Available on request
Finish: Anodised
Width (mm): 165
Width (inches): 6 1/2
Approved Standards
89/686/EEC
NFPA 1983 (17ED)G
