ISC Compact Rigging Pulley for 13mm Rope - 85kN

ISC Compact Rigging Pulley for 13mm Rope - 85kN

SKU: 298-19-1

Read More
Regular price £113.35
Regular price RRP £125.94 Sale price TODAY'S PRICE £113.35

In stock (2)

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

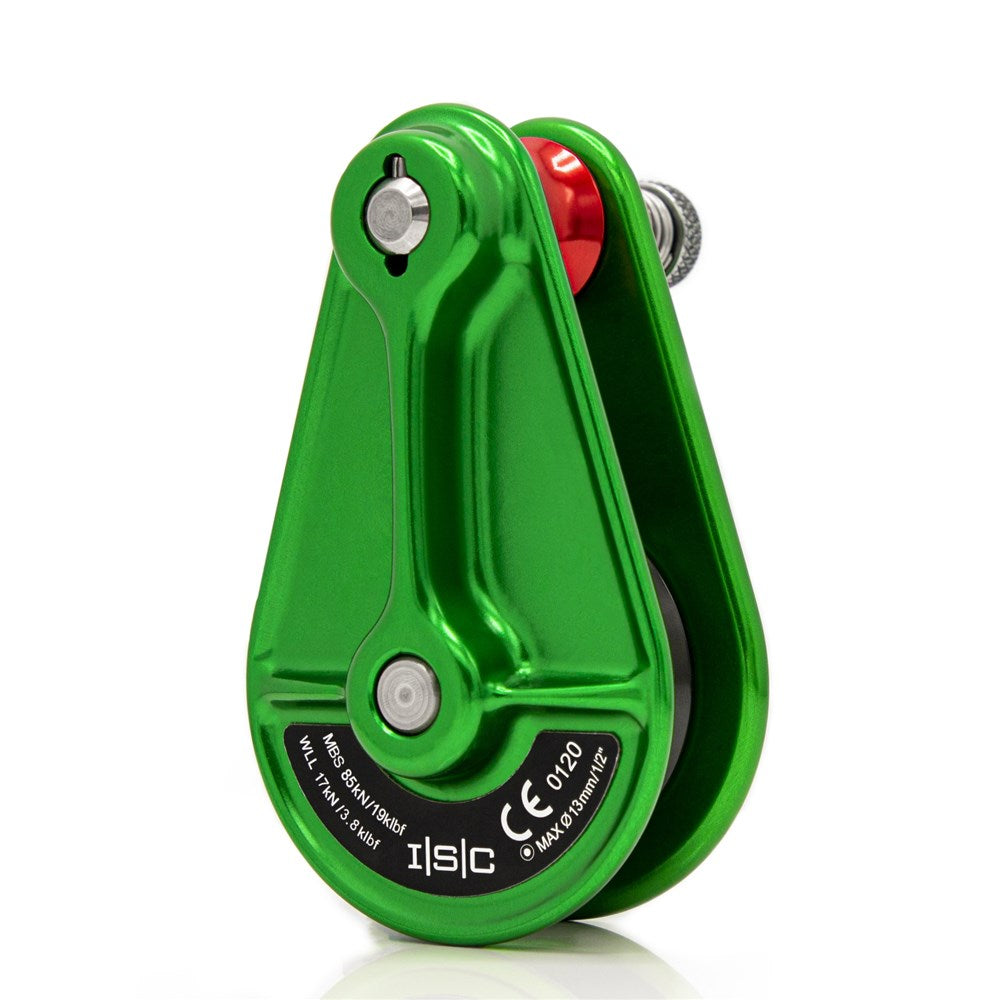

ISC Compact Rigging Pulley for 13mm Rope - 85kN

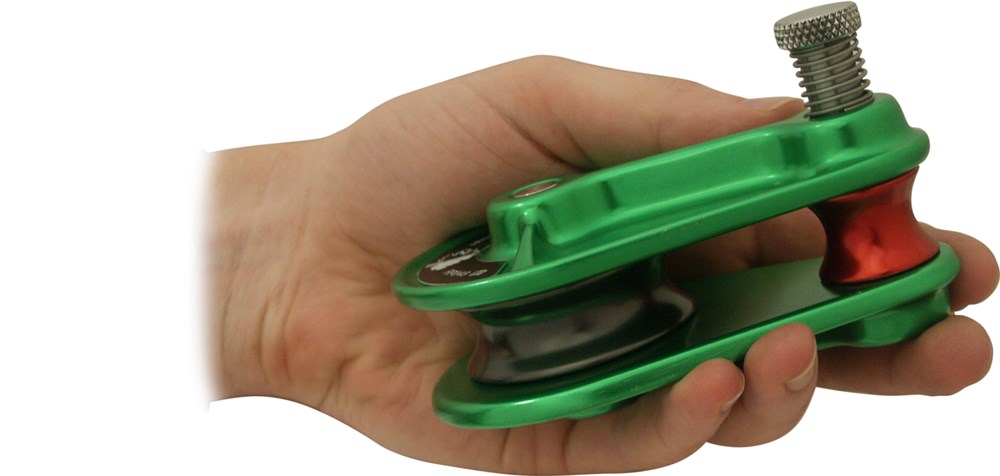

At approximately half the size of the standard small rigging pulley and weighing in at only 490g (1lb), the new Compact Rigging Pulley offers a highly impressive strength to weight ratio with an 85kN (19000lbf) MBS and a WLL of 17kN (3800lbf).

The Pulley plates are made from hot forged Aluminium and it is this manufacturing process which allows such a compact pulley to boast such great strength and dynamic load bearing capacity.

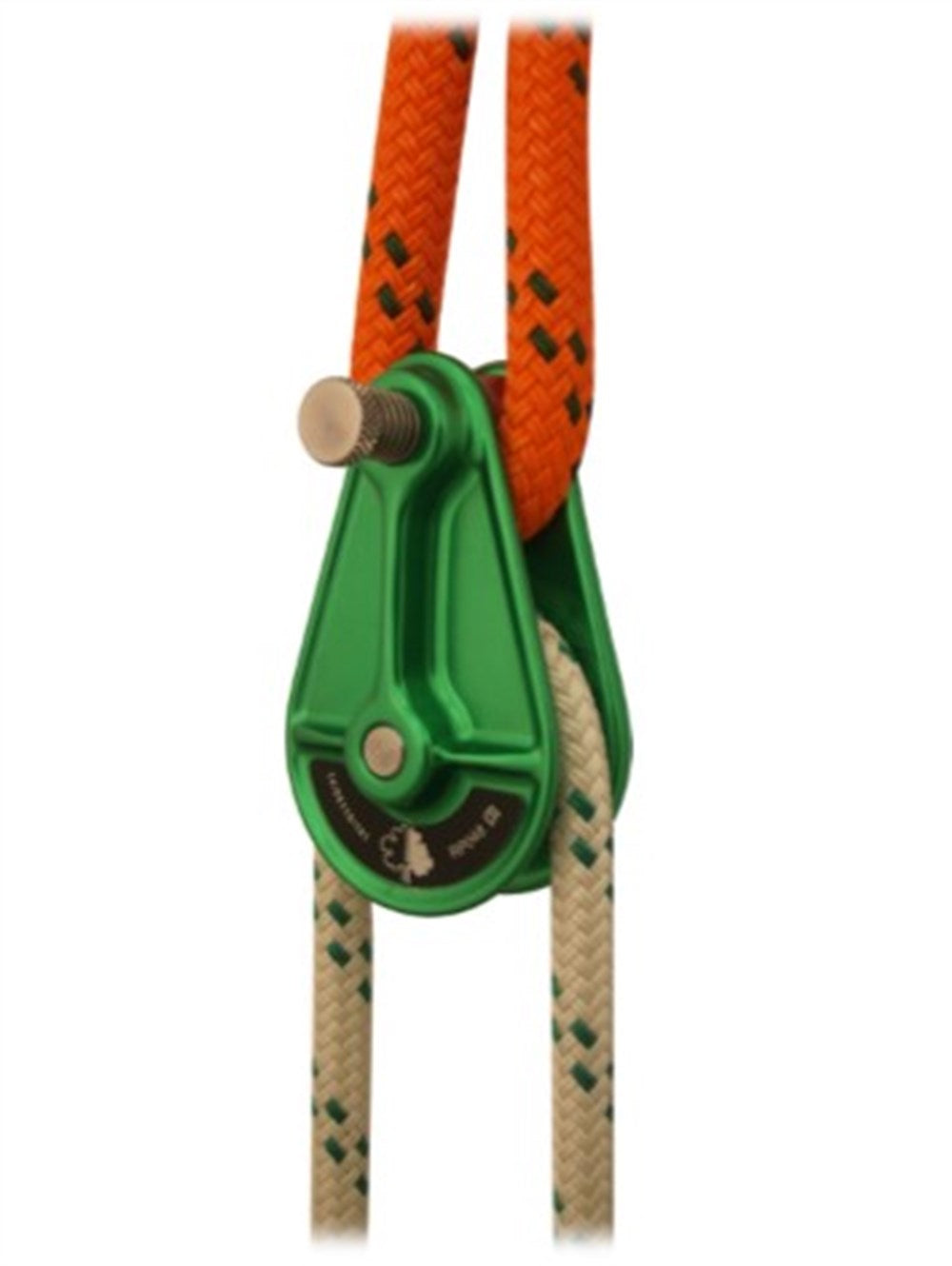

Working Line (Grey Sheave):
13mm (1/2") - 38kN (8500lbf)

Topping Strop (Red Sheave):
16mm (5/8") - 74kN (16650lbf)

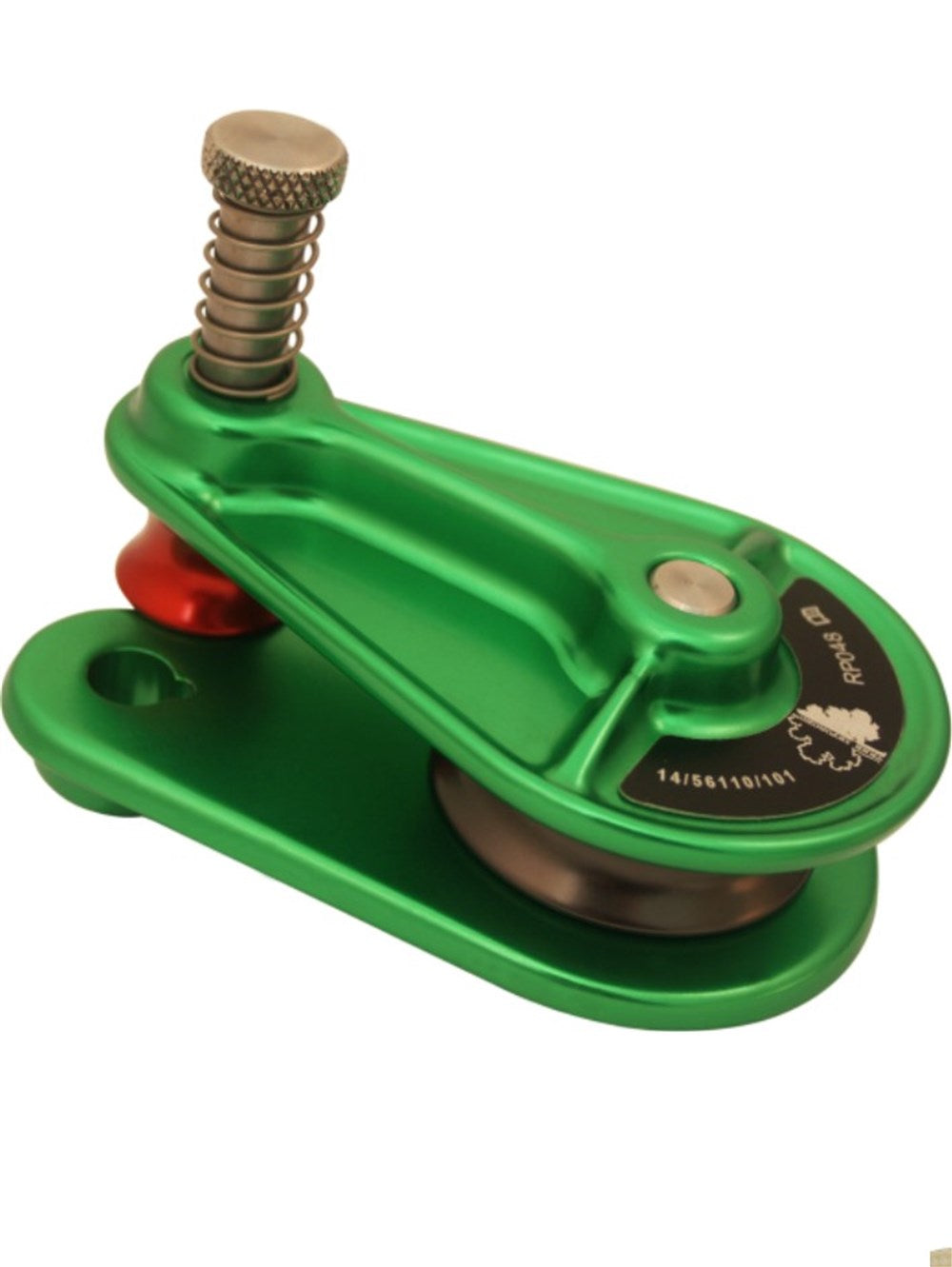

The Compact Rigging Pulley is fitted with a spring-lock closure mechanism.

Spec

(MBS) Minimum Breaking Strength (kN): 85
(MBS) Minimum Breaking Strength (lbf): 19000
Pulley wheel colour: Grey
Anchor wheel colour: Red
Wheel material: Aluminium
Body finish: Anodised
Colour: Green/grey
Weight (grams): 490
Weight (ounces): 16
Height (mm): 125
Height (inches): 5
Width (mm): 76
Width (inches): 3

Approved Standards

CE 0120 Machinery Directive

Notes

Individual Serial Numbering as standard
