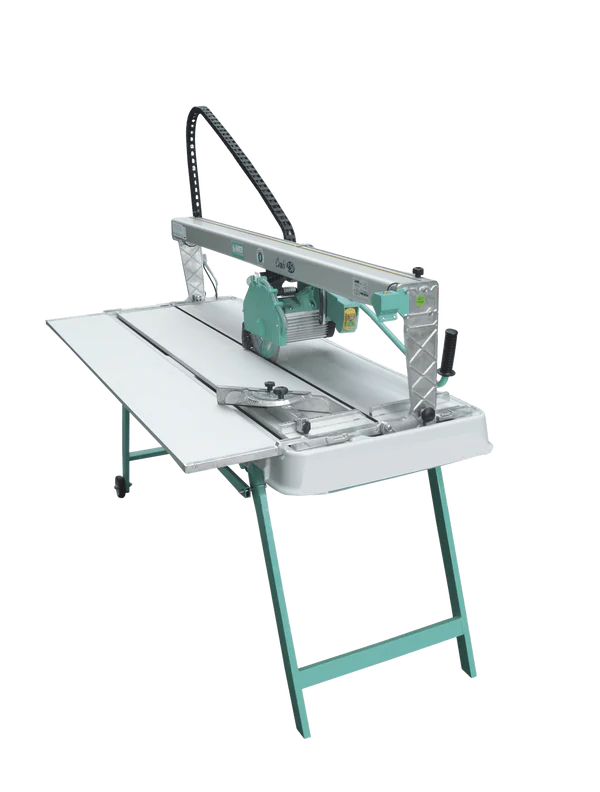

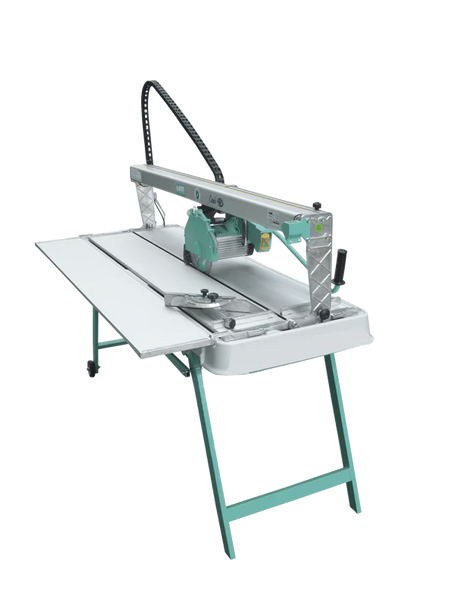

IMER Electric Wet Tile Cutter - Combi 250VA /1500mm
The Combi 250 VA cuts a maximum length of 1500mm and comes with a 250mm continuous diamond blade and a folding stand so it can be used on a bench or with the stand for ease of use. It also has 2 wheels for ease of movement when on a larger area to be tiled. The electric water pump keeps the blade cooled and also dust is eliminated by this method. It also has a laser site for making a clear line along the full length of the bed.
- Single-phase 230V/50Hz electric motor, 1.5 kW with thermal protection and minimum voltage coil
- IP 55 switch
- IP 67 plug
- Laser pointer
- Cutting guide
- Diamond blade Ø 250 mm PREMIUM for gres hard porcelain - continuous rim
- Protractor with large support surface
- Anodised extruded aluminium cutting surface
- Shatter-resistant plastic tray to contain and recover water
- Stand with two rubber wheels
- Side cutting surface (only for Combi 250-1500)
Spec
SKU |
|
294-4-10 |
Blade/Bore Diameter |
mm |
250/25.4 |
Cutting Length |
mm |
1430/1530 |
Cutting Depth 1 Pass |
mm |
66 |
Cutting Depth 2 Passes |
mm |
105 |
Cutting Surface Dimensions |
mm |
500x1615 |
Electric Power Supply |
v/Hz |
230 / 50 Sph 230 / 60 Sph 110 / 50 Sph 115 / 60 SPH |
Moter Power Rate |
kW |
1.5 |
Motor Speed |
rpm |
2800 |
Running Current 230v (110/115v) |
A |
9.4 (15.4) |
Water Pump |
|
AP67, flow rate 131/min |
Water Recovery Tray Capacity |
L |
55 |
Machine Dimensions |
mm |
636/1920/619 |
Stand Dimensions |
mm |
669/1560/750 |
Machine Weight (with Packaging) |
kg |
75 (91) |
Stand Weight |
kg |
17 |
Optional Surface Weight (with Packaging) |
kg |
8.0 (8.6) |
SPL in Operator's Position |
dB(A) |
86 |
Max. Stackability |
|
3 (h 2190mm) |
