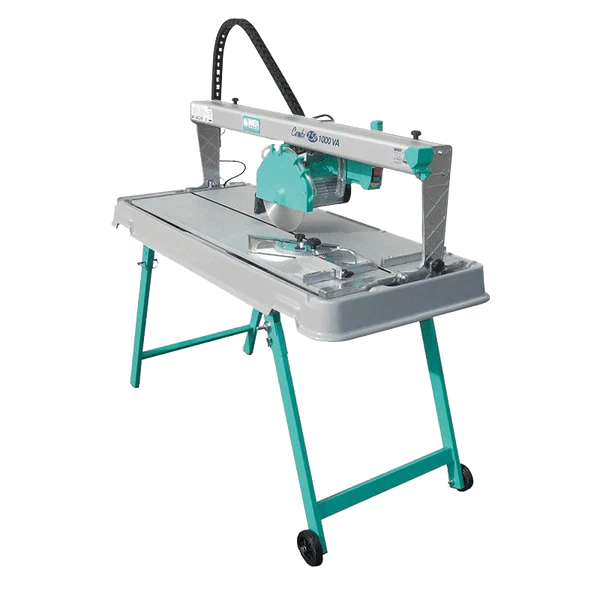

IMER Electric Wet Tile Cutter - 110v - Combi 250 /1000mm
The Combi 250 VA cuts a maximum length of 1000mm and comes with a 250mm continuous diamond blade and a folding stand so it can be used on a bench or with the stand for ease of use. It also has 2 wheels for ease of movement when on a larger area to be tiled.
The electric water pump keeps the blade cooled and also dust is eliminated by this method. It also has a laser site for making a clear line along the full length of the bed. For a quality cut even on large tiles: 300×600 mm, 900×900 mm and over. It offers high cutting capacity: the blade is suitable for all types of material to be cut. Cuts (90°) vertically to the support surface or cuts in tilted position between 90° and 45° (depth adjustment is maintained in all positions).
Side cutting surface optional to extend cutting, maintaining stability, due to a bracket bolted onto the stand.
Spec
SKU |
|
294-4-6 |
Blade/Bore Diameter |
mm |
250/25.4 |
Cutting Length (with/without plunging blade two passes) |
mm |
930/1030 |
Cutting Depth 1 Pass |
mm |
66 |
Cutting Depth 2 Passes |
mm |
105 |
Cutting Surface Dimensions |
mm |
500x1115 |
Electric Power Supply |
v/Hz |
230 / 50 Sph 230 / 60 Sph 110 / 50 Sph 115 / 60 SPH |
Motor Power Rate |
kW |
1.5 |
Motor Speed |
rpm |
2800 |
Running Current 230v (110/115v) |
A |
9.4 (15.4) |
Water Pump |
|
IP67, flow rate 131/min |
Water Recovery Tray Capacity |
L |
40 |
Machine Dimensions |
mm |
636/1420/619 |
Stand Dimensions |
mm |
669/1454/654 |
Machine Weight (with Packaging) |
kg |
53 (65) |
Stand Weight |
kg |
16 |
Optional Surface Weight (with Packaging) |
kg |
6.2 (6.7) |
SPL in Operator's Position |
dB(A) |
86 |
Max. Stackability |
|
3 (h 2190mm) |
