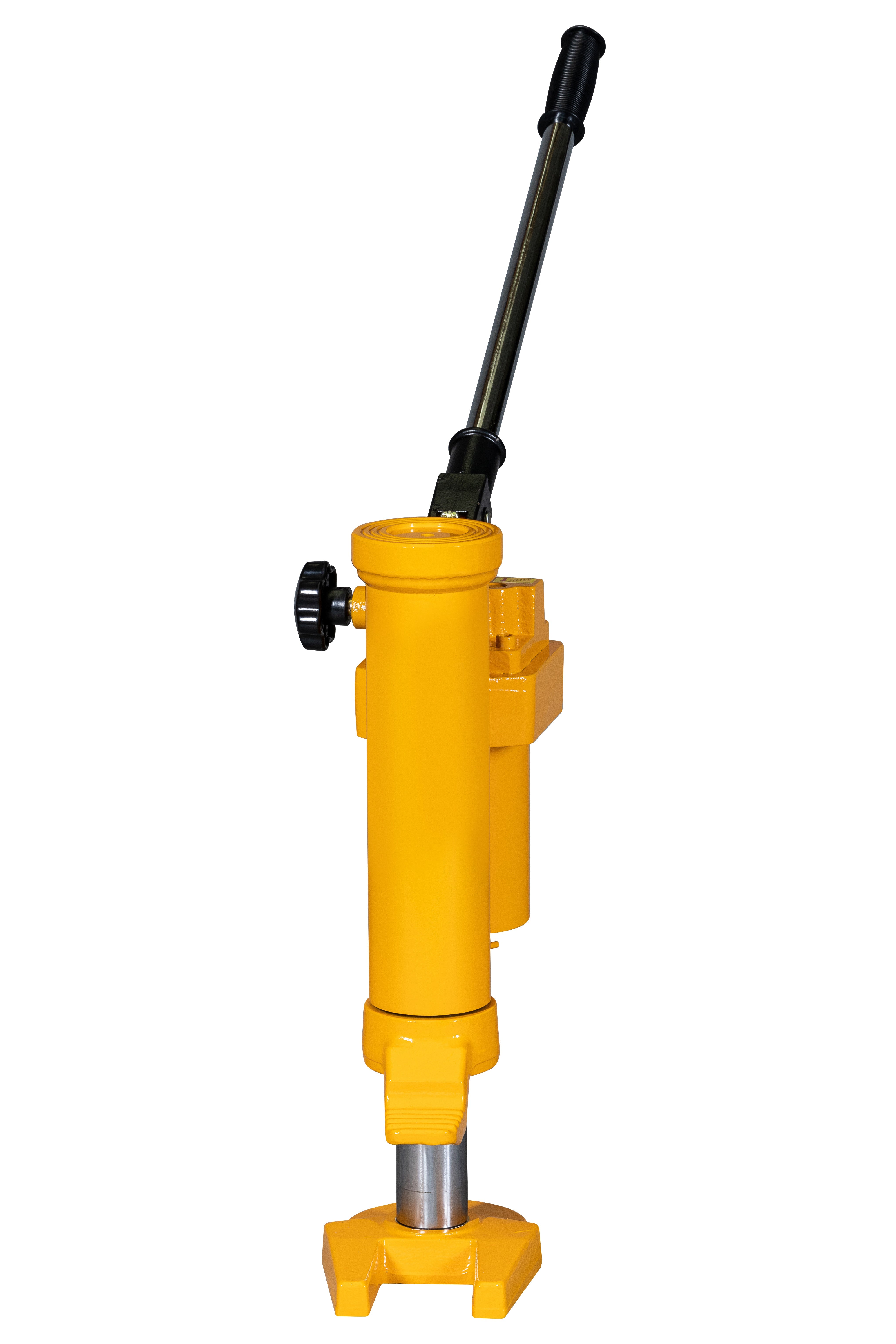

360 degree rotating hydraulic toe jacks.
- Compact and stable construction
- Can be used in any position
- Housing revolves 360 degrees
- Lowering can be accurately adjusted
- Protected against overloading
- Pump lever is removable
- According to US standard USA ASME/ANSI B30.1.198
Key Features
- Up to 25,000kg lifting capacity
- 360 degree rotation
- Max Lifting Height: 720mm
- 5 year warranty
Spec
SKU |
Capacity Kg |
Lifting Range of Foot mm |
Lifting Range of Head mm |
Max. Lever Force Kg |
Weight Kg |
403-8-1 |
5,000 |
25-230 |
368-573 |
38 |
25 |
403-8-2 |
10,000 |
30-260 |
420-650 |
40 |
35 |
403-8-3 |
25,000 |
58-273 |
505-720 |
40 |
102 |
