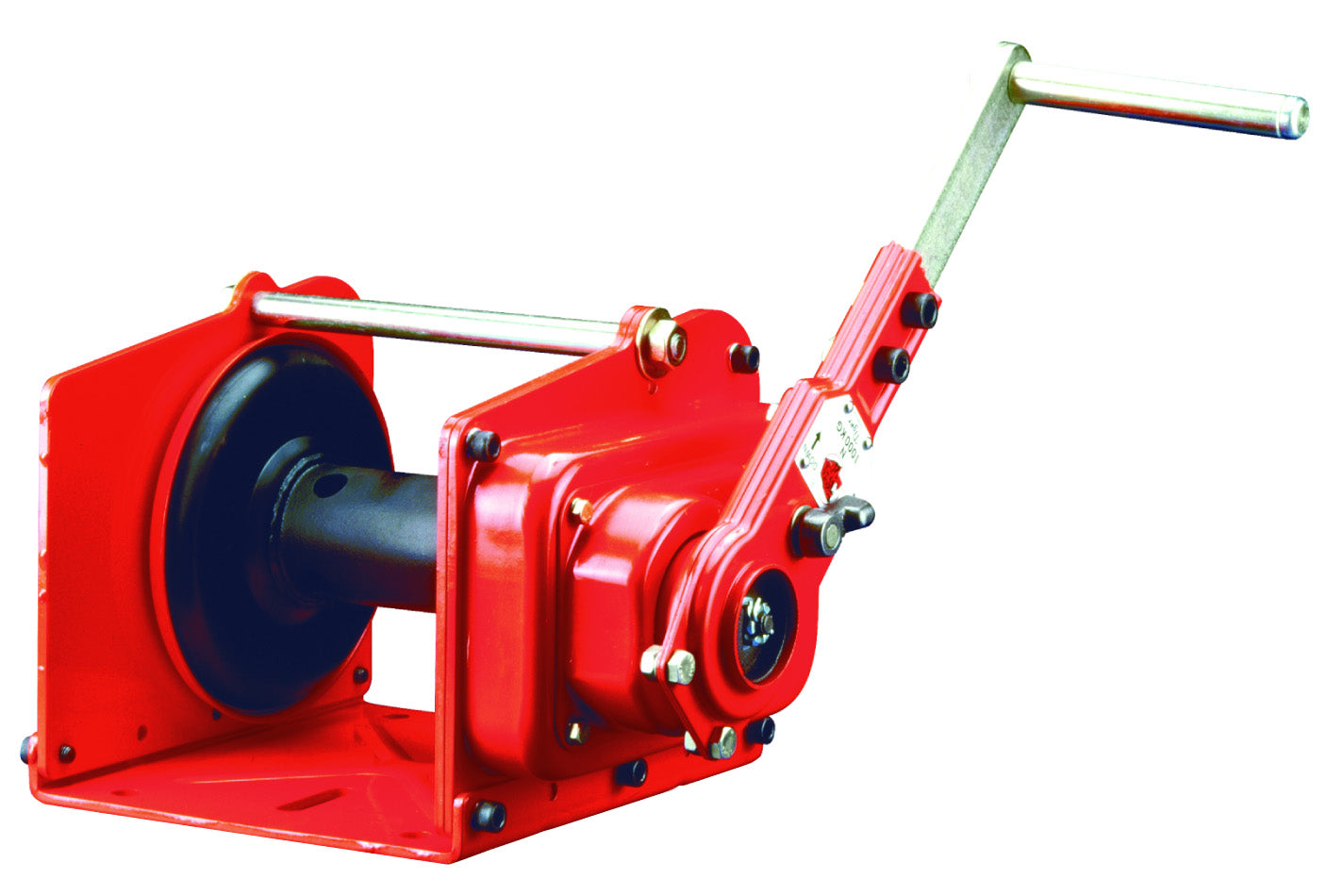

TIGER - SF-2200 - HEAVY DUTY INDUSTRIAL WINCH 1000KG/2000KG

TIGER - SF-2200 - HEAVY DUTY INDUSTRIAL WINCH 1000KG/2000KG

SKU: 158-5-1

Read More
Regular price £388.98
Regular price RRP Sale price TODAY'S PRICE £388.98

In stock (1)

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

HEAVY DUTY INDUSTRIAL WINCH 1000KG/2000KG

Data Sheet :

Tiger Industrial Ratchet Winch SF-2200

SF-2200 INDUSTRIAL RATCHET HANDLE WINCH

  • Lifting Capacity: 2200lb/1000kg
  • Pulling Capacity: 4400lb/2000kg
  • Ratchet Handle: Allows for reciprocating movement in both directions, facilitating easy lifting and lowering of loads
  • Safety Feature: Positive load-actuated brake holds the load securely in any position
  • Protection: Fully covered gears and brake to prevent contamination from dust, dirt, and rain
  • Ease of Use: Requires very low operator effort for smooth and efficient operation
  • Versatility: Ratchet handle design allows installation in tight spaces, such as walls and floors
  • Operating Temperature Range: -40°C to +80°C

Spec

Product Code Pulling Capacity (lbs/kg) Lifting Capacity (First Layer) Lifting Capacity (Last Layer) Hand Force Required (kg) Gear Ratio Hub Diameter (mm) Handle Length (mm) Unit Weight (with handle) (kg) Unit Weight (with loop) Cable Diameter (mm/inch) Cable Storage Cap. (m) Technical Drawing
158-5-1
4400/2000
2200/1000
10
22.2:1
Ø80
300
17.5
Ø8.0/Ø5/Ø16
32



Travel per crank handle revolution top layer – 21mm

Travel per crank handle revolution bottom layer – 11mm

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.
