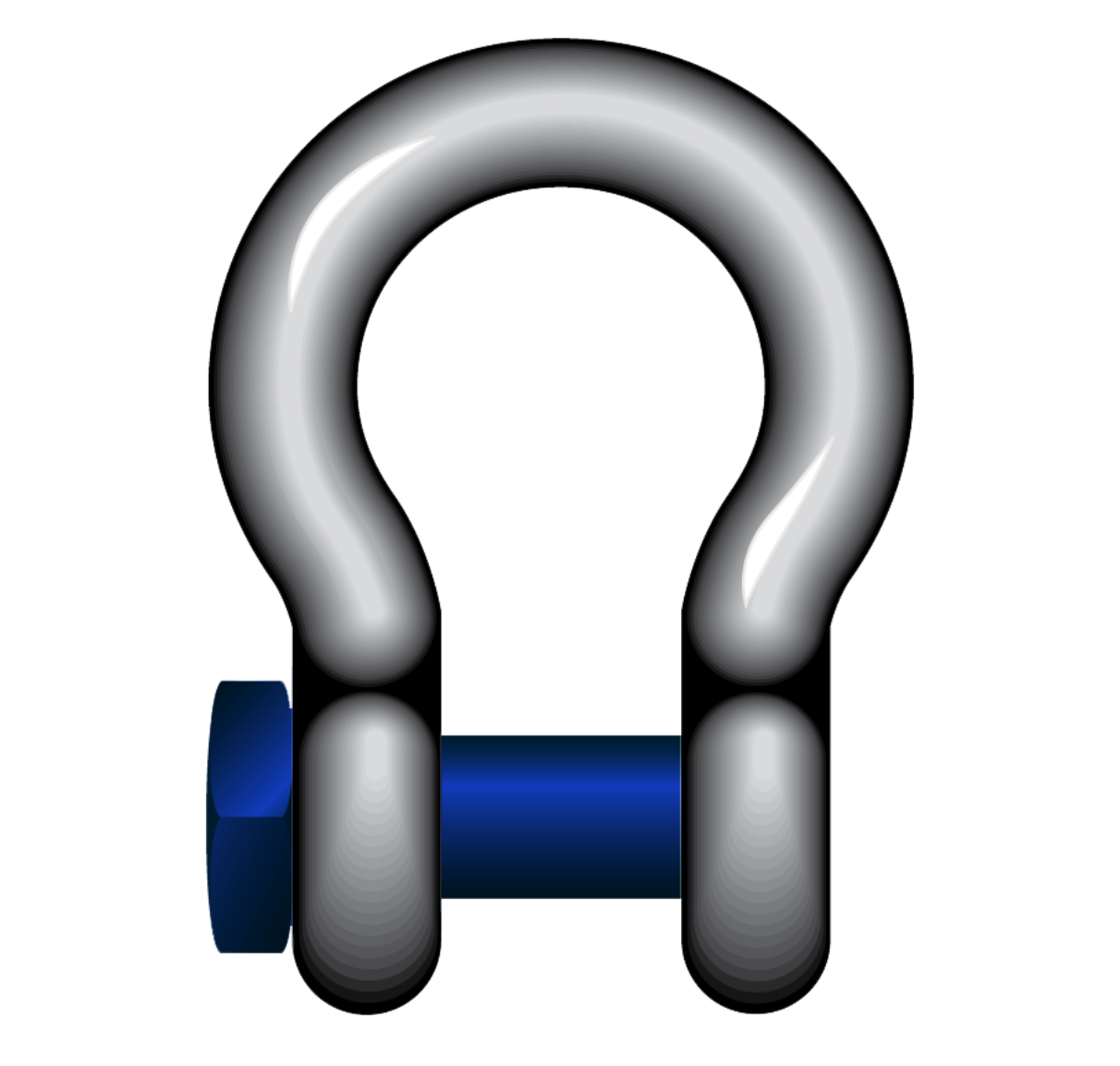

GT Blue Pin Grade 6 Square Head Bow Shackle
- Grade 6 high tensile steel body and pin, quenched and tempered.
- Hot dipped galvanised.
- Meets the W.L.L. requirements of EN 13889.
- Minimum breaking load is 6 times the W.L.L.
- Marked with CE, W.L.L, manufacturers ID, size and traceability code.
- Certification available 2.1 3.1* DoC

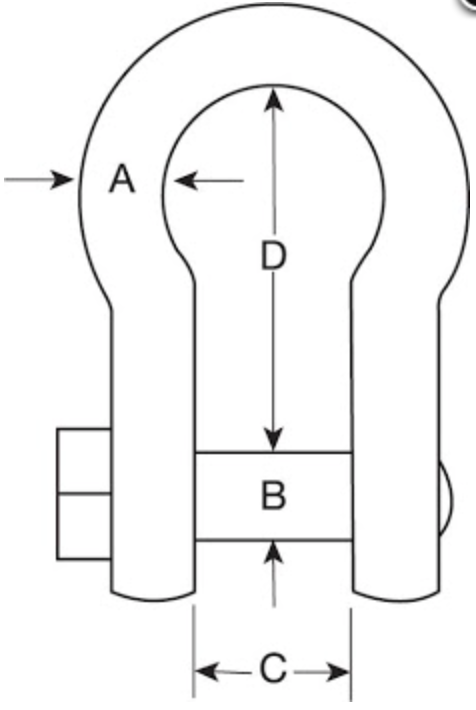

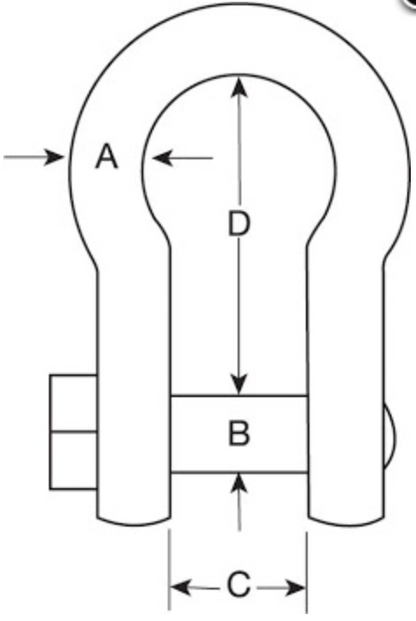

Spec
SKU |
W.L.L. |
A |
B |
C |
D |
Weight |
|
t |
mm |
mm |
mm |
mm |
kgs |
269-100-81 |
3.25 |
16 |
19 |
27 |
64 |
0.79 |
269-100-82 |
4.75 |
19 |
22 |
31 |
76 |
1.26 |
269-100-83 |
6.5 |
22 |
26 |
36 |
83 |
1.88 |
269-100-84 |
8.5 |
25 |
28 |
43 |
95 |
2.78 |
269-100-85 |
9.5 |
28 |
32 |
47 |
108 |
3.87 |
