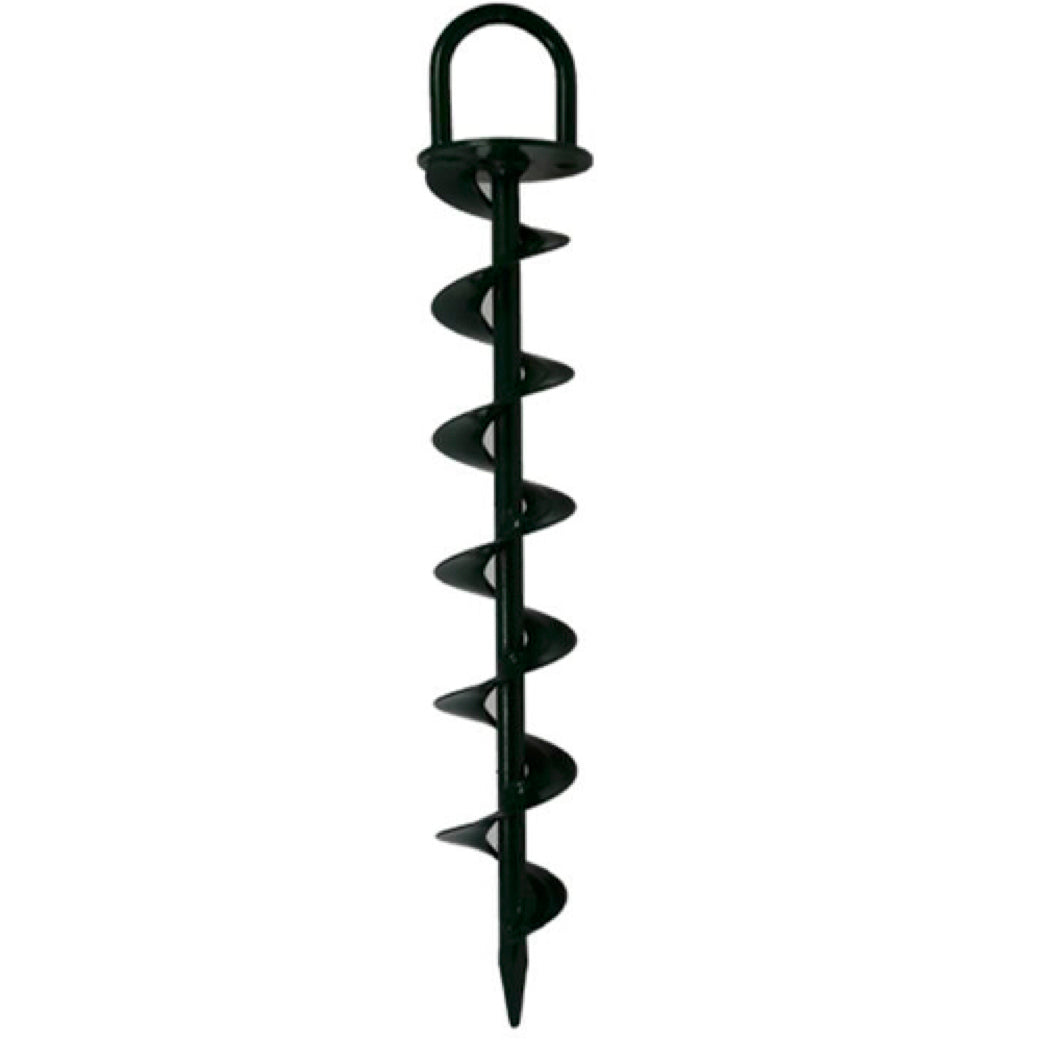

HOLDING POWER- 560 - 1300kg
GREEN POWDER COATED Ref: 270-3
We offer heavy duty anchorage for a multitude of requirements:

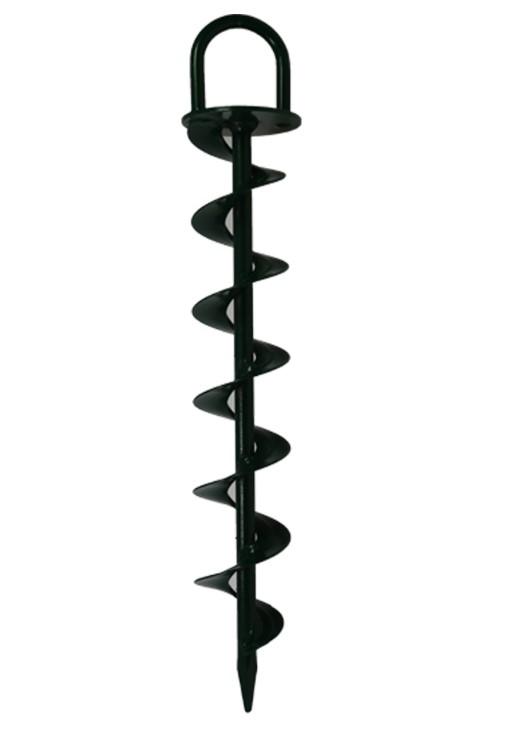

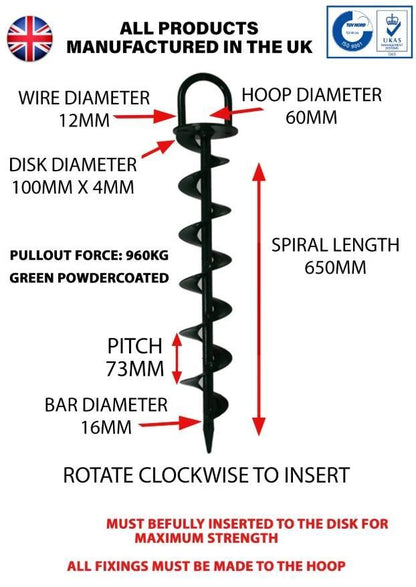

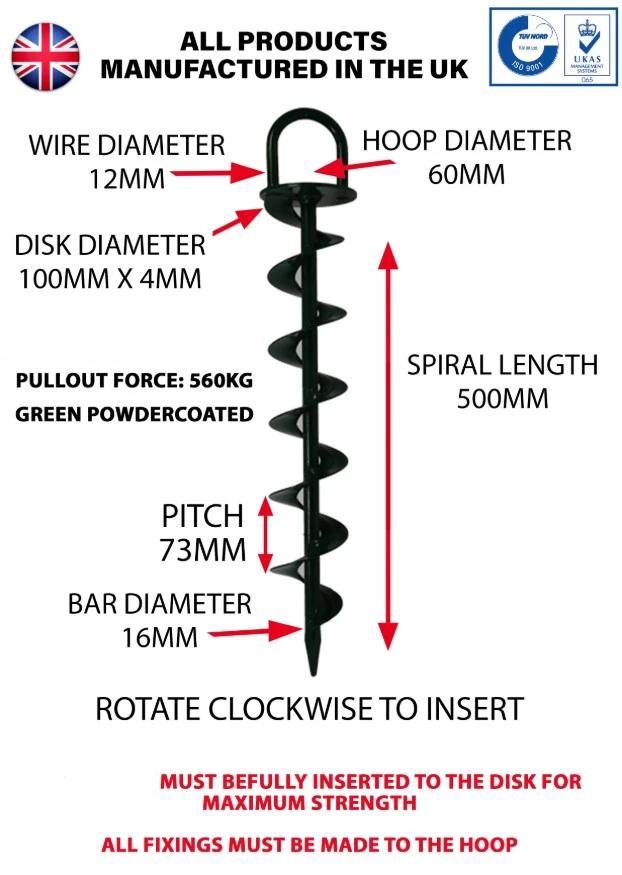

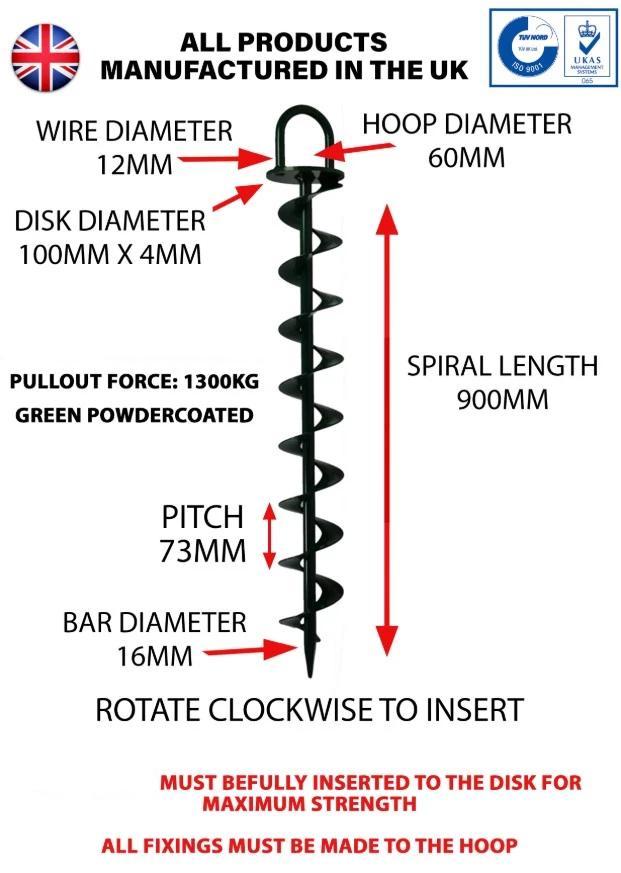

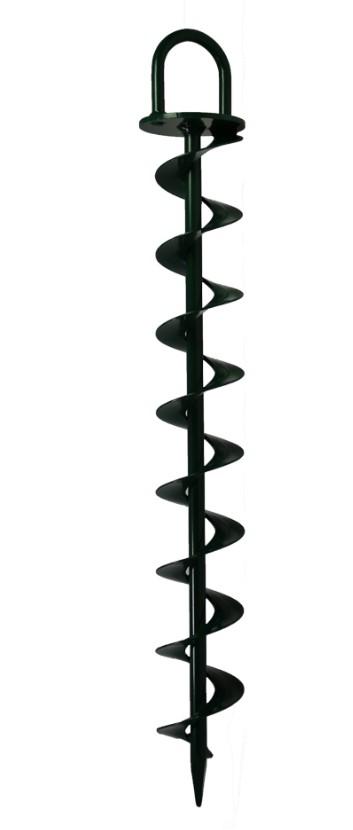

The range is manufactured in three different flite lengths, 500mm, 650mm and 900mm, offering a range of holding capabilities, from 5.60kn to 12.60kn.
The calculations for holding capabilities were all carried out at a 45 Degree angle.

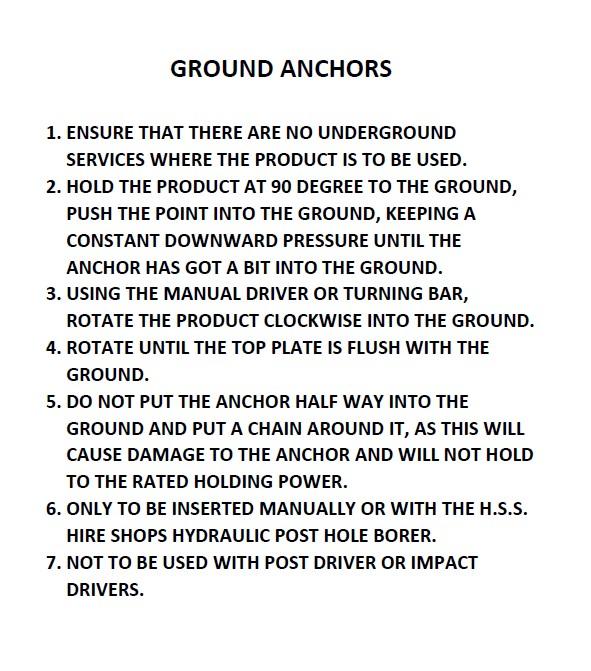

They can be installed and removed in seconds and used again and again making a cost effective and environmental solution for your anchorage and security requirements.
Other ground anchorage systems on the market today can not be retrieved without intensive excavations; these are often left in the ground creating a long term soil contamination.
Need help driving the anchor home, then try our:
Can these go into concrete?
They are designed to be screwed into soft ground.
Are these ground anchors good for built up ground of sub base plus type one base
The anchors are designed for standard ground soil, customers have used these on many types of ground in the past.
A load test is recommended before use to determin if they are correct.
What tests are carried out to ascertain the loading strength of each ground anchor
The Heavy Duty Ground anchors have a tensile integrity load test by the manufacture.
**No certification are issued with these products.
Can you advise the width/thickness of the hoop at the top of the anchor plse.? I would like to attach a jaw turnbuckle to the anchor but i'm not sure how thick the hoop of the anchor in order to get the right size jaw on the turnbuckle. thks!
