Fram

FRAM - Grade 8 Quad Master Link Assembly to BS-EN 1677-4

FRAM - Grade 8 Quad Master Link Assembly to BS-EN 1677-4

SKU: 286-32-1

Read More
Regular price £77.34
Regular price RRP Sale price TODAY'S PRICE £77.34

In stock

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

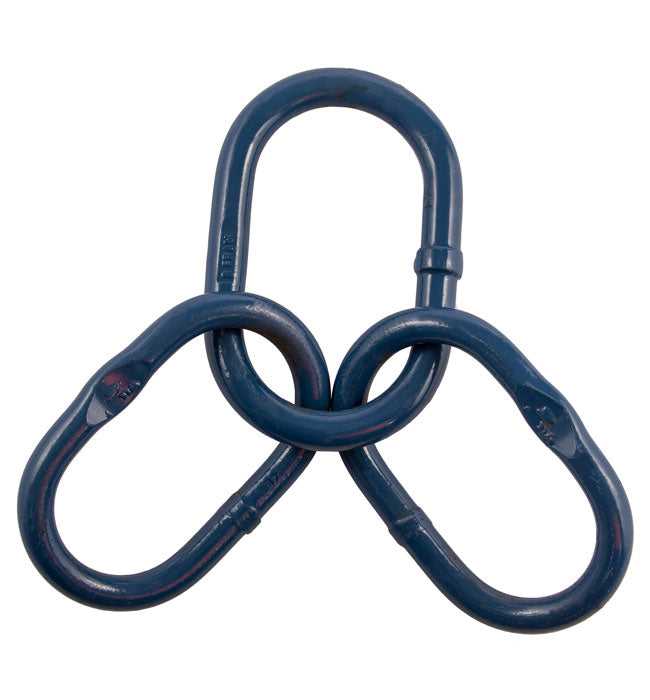

Grade 8 Fram Quad Master Link Assembly
  • Alloy steel, quenched and tempered.
  • Blue painted finish.
  • Type approved according to DNV GL.
  • Conforms to BS EN 1677-4.
  • Minimum breaking load is 5 times the W.L.L.
  • Certification - Declaration of Conformity

Spec

SKU
Part No D1 L1 W1 D2 L2 W2 W.L.L. Weight
mm mm mm mm mm mm t kgs
286-32-1
Q16B 16 120 70 13 95 51 4.1 1.2
286-32-2
Q20B 20 170 90 16 120 70 6.5 2.5
286-32-3
Q22B 22 170 90 20 150 80 8.2 2.8
286-32-4
Q22B8 22 270 140 16 120 70 5.8 3.5
286-32-5
Q25B 25 190 100 20 150 80 10.7 4.9
286-32-6
Q28B 28 210 110 22 170 90 12.9 6.4
286-32-7
Q32B 32 270 140 25 190 100 17.1 10
286-32-8
Q38B 39 270 140 32 270 140 28.1 18.2
286-32-9
Q45B 45 320 170 38 270 140 38.3 27.7
286-32-10
Q50B 50 380 200 38 270 140 45 33.2
286-32-11
Q60B 60 430 220 50 380 200 65.3 54
286-32-12
Q70B 70 500 250 60 430 220 84.4 101.2
