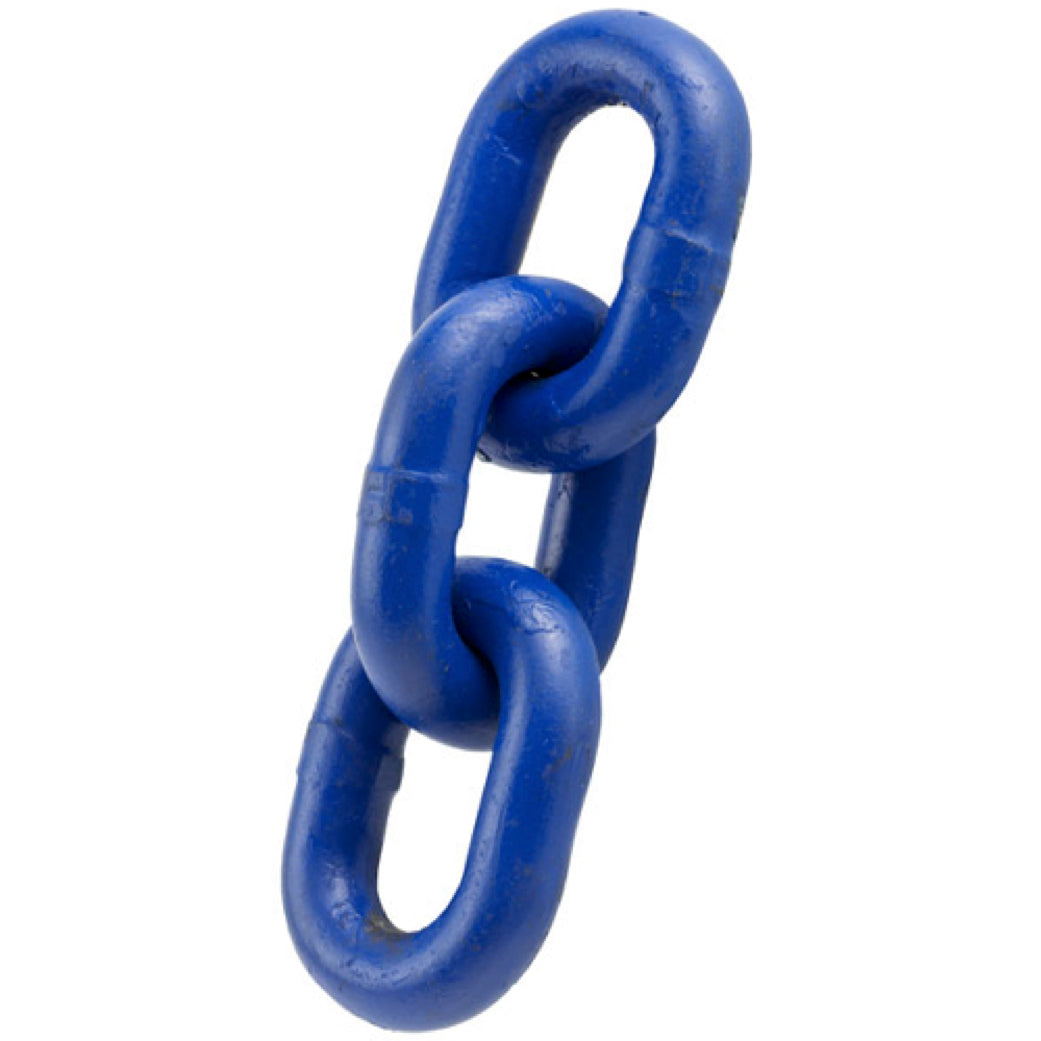

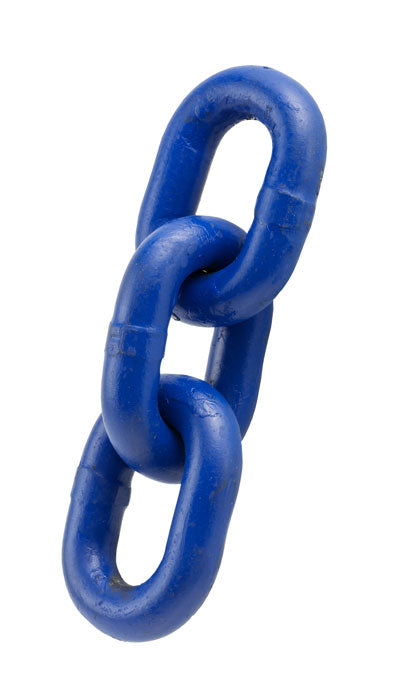

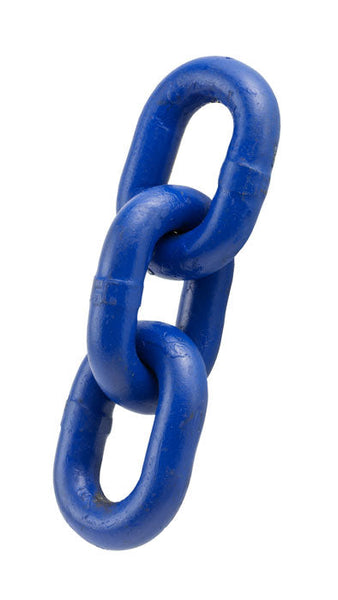

KITO WEISSENFELS Grade 10 Short Link Chain
- Grade 10 alloy steel, heat treated.
- Blue painted finish.
- Grade 10 vs Grade 8 increase in load capacity up to 25%. Reduction of slings weight up to 40%. Better wear resistance enabling longer performance.
- Meets the performance requirements of BS EN 818-2 +25% of loads.
- Temperature range: -29°C to +205°C.
- Marked with material grade and manufacturers ID.
- Certification - Declaration of Conformity

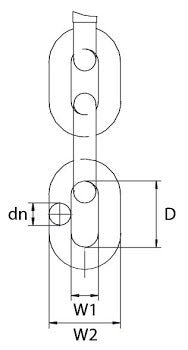

Spec
SKU |
dn |
D |
W1 (min) |
W2 (max) |
|
mm |
mm |
mm |
mm |
286-210-1 |
6 |
18 |
7.8 |
22.2 |
286-210-2 |
7 |
21 |
9.1 |
25.9 |
286-210-3 |
8 |
24 |
10.4 |
29.6 |
286-210-4 |
10 |
30 |
13.0 |
37.0 |
286-210-5 |
13 |
39 |
16.9 |
48.1 |
286-210-6 |
16 |
48 |
20.8 |
59.2 |
286-210-7 |
19 |
57 |
24.7 |
70.3 |
Technical Data
SKU |
dn |
W.L.L. |
M.P.F. |
M.B.F. |
Drum Length |
Weight |
|
mm |
t |
kN |
kN |
m |
kgs/m |
286-210-1 |
6 |
1.4 |
35.3 |
56.5 |
100 |
0.83 |
286-210-2 |
7 |
1.9 |
48.1 |
77 |
100 |
1.17 |
286-210-3 |
8 |
2.5 |
62.8 |
102 |
100 |
1.51 |
286-210-4 |
10 |
4 |
98.2 |
157 |
100 |
2.4 |
286-210-5 |
13 |
6.7 |
166 |
265 |
50 |
4 |
286-210-6 |
16 |
10 |
251 |
402 |
50 |
6 |
286-210-7 |
19 |
14 |
354 |
567 |
25 |
8.71 |
