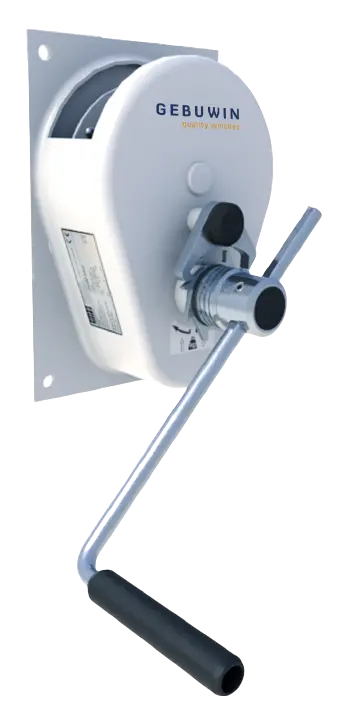

Gebuwin ATEX Spur Gear Hand Winch 300kg
This spur gear winch is very efficient and safe due to its spur gear transmission and developed design. The load-pressure brake with a double ratchet system makes it very reliable. Extra attention has also been paid to the semi-closed housing.
- winch suitable for lifting and pulling in compliance with EN13157
- static safety factor 4
- load pressure brake with double ratchet system for safe stable hold of the load
- cable outlet upwards
- adjustable crank
- suitable for wall mounting
- 1 layer of paint
Spec
Capacity 1st layer |
300 kg
|
Capacity 4th layer |
234 kg
|
Capacity top layer |
172 kg
|
Rope diameter-Ø |
4 mm
|
Rope storage 1st layer |
2,3 meter
|
Rope storage 4th layer |
12,5 meter
|
Rope storage top layer |
35,4 meter
|
Lift per crank rotation |
32 mm
|
Crank effort at full load |
5,5 daN
|
Weight (without rope) |
10 kg
|
