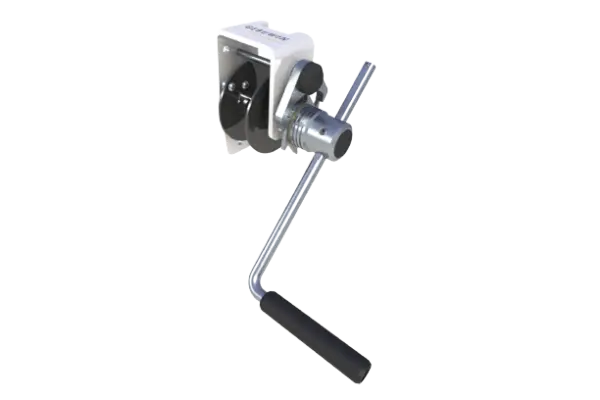

Gebuwin ATEX Spur Gear Hand Winch 150kg
This small spur gear winch is known for its high speed due to its direct drive. This fast and easy winch is a very compact lightweight of 4 kg and extremely suitable for smaller work.
- winch suitable for lifting and pulling in compliance with EN13157
- static safety factor 4
- load pressure brake with double ratchet system for safe stable hold of the load in any position
- cable outlet upwards
- adjustable crank
- suitable for wall mounting
- 1 layer of paint
Spec
Capacity 1st layer |
150 kg
|
Capacity 4th layer |
98 kg
|
Capacity top layer |
67 kg
|
Rope diameter-Ø |
4 mm
|
Rope storage 1st layer |
0,7 meter
|
Rope storage 4th layer |
4,9 meter
|
Rope storage top layer |
13,1 meter
|
Lift per crank rotation |
122 mm
|
Crank effort at full load |
10 daN
|
Weight (without rope) |
4 kg
|
