For a more compact choice, woodland owners and occasional loggers choose the kit forestry kit 3, which includes the all-position winch PCW4500 as well as a protective case and accessories adapted to extract logs.
The skidding cone (167-18-1) prevents logs from getting stuck in roots, stumps and other obstacles. Its shape allows it to slide along the residual trees, thus avoiding injuries during regeneration. The 10mm x 50m rope allows you to reach trees where they are. The single pulley (167-14-3) will be useful to deviate the load or to double the pulling force when the time comes. Combined with the 1200kg power offered by the winch PCW4500, you will get 2400kg of force!

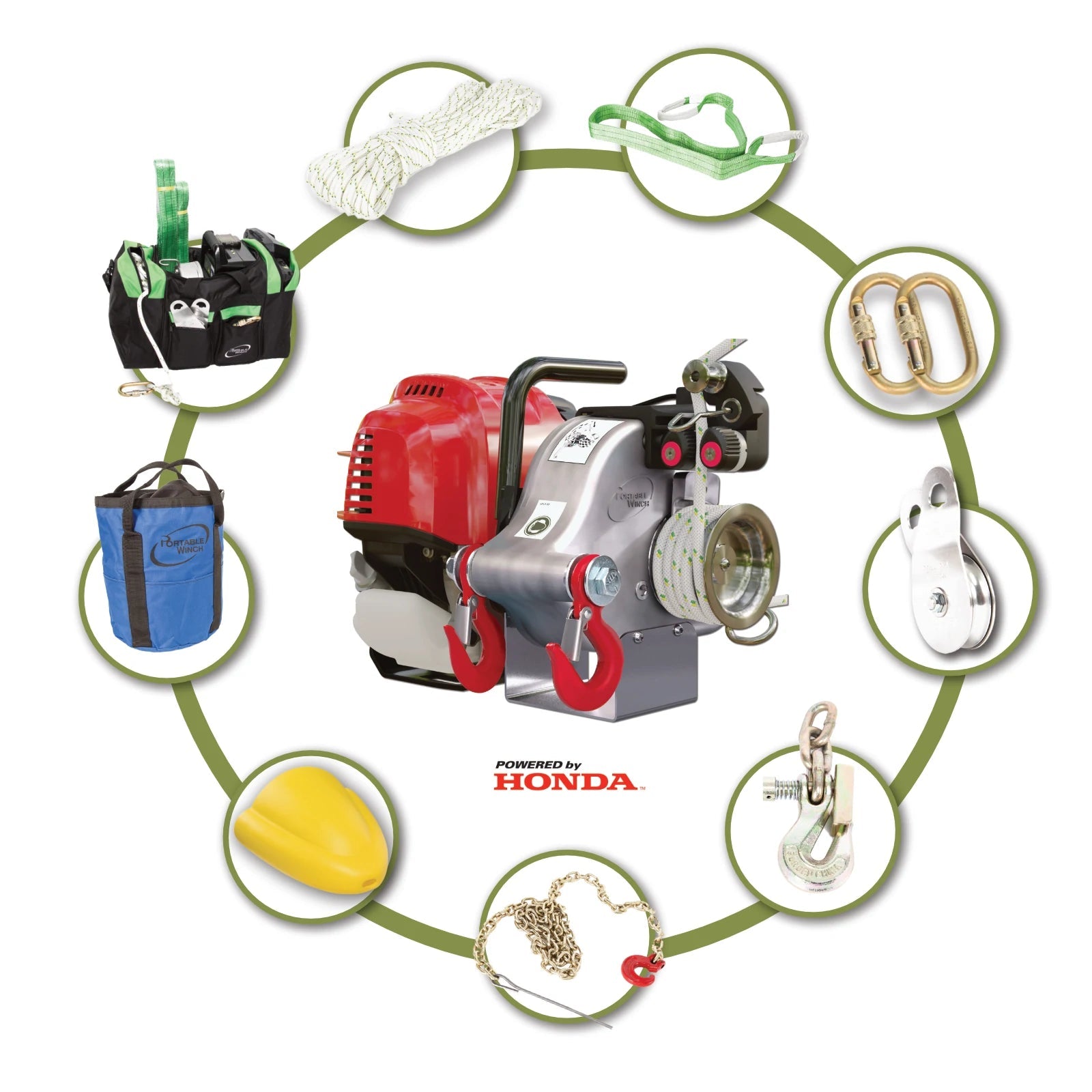

What you get in the kit
| SKU |
Description |
Quantity |
| 167-8-1
|
50m Length 10mm Dia Pulling Rope ABL=2900kg |
1.00
|
| 167-2-6 |
PCW4500 Petrol Pulling Winch 1200kg |
1.00 |
| 167-14-3 |
Single Pulley - Snatch Block - either a 76 or 100mm Stainless Steel |
1.00 |
| 167-13-6 |
Transport Case For PCW3000 Li, PCW3000, PCW4000 & PCW45000 (Portable Winch) |
1.00 |
| 167-18-1 |
Skidding Cone (Portable Winch) - Logs up to 50cm Diameter |
1.00 |
| 298-24-1 |
Oval Twistlock, EN362, 25kN, O:18mm |
2.00 |
| 167-15-5 |
Grab Hook - 7mm (5/16") |
1.00 |
| 283-2-2 |
2M 2T. 60mm. Duplex Green Flat WebSling. EN STD 1492-1:2000 |
1.00 |
| 167-12-1 |
VAULT 25 - 25 Litre Storage Bag - Draw String Top - Blue or Orange |
1.00 |
| 167-18-2 |
Choker Chain 7mm x 2.1mm (Portable Winch) |
1.00 |
The PCW4500: The Pinnacle of Pulling Power, now in stock for sale in the UK
The latest capstan winch designed by Portable Winch Co. The very first model featuring a 2-stroke engine in the product line. Its Maruyama engine makes it the most reliable on the market with its 5-year warranty.
Boast a staggering 1,200 kg (2,650 lb) of TRUE pulling power and reach up to 6,000 kg (13,250 lb) by using 2 double pulleys. Check the Downloads tab to get to the tutorial.
Featuring a unique stainless steel rope brake* (progressive capture system) to hold the load in place, a centrifugal clutch for better control, a protective plate to fit your foot at start up and tension rode on entry hook to prevent rope entanglement.
Built for professionals, experience the simplicity of use and peace-of-mind proposed by the PCW4500.
- 2-stroke commercial-grade engine by Maruyama Japan
- Centrifugal clutch & stainless steel rope brake
- Fuel: same petrol/oil mix as a chainsaw (See manual for all details)
- Drum size : 76 mm
QUICK RELEASE AUTOMATIC ANTI ROLL-BACK MECHANISM
The Portable Winch Co. engineering team strikes again by designing this simple and ingenious device!
As soon as you pull the rope that goes through the ARM, the centrifugal clutch activates, and the winch begins to pull. As soon as the rope is released, the drum stops rotating and the automatic mechanism does its job by holding the load in position! Disengage the rope in one simple movement! Nothing is easier.
*Accessories sold separately.
*Note: One (1) anchor polyester sling 60 mm x 2 m is always included with every winch
WARRANTY
Private use : 2 years
Commercial use : 1 year
Engine/Motor : 5-Year MARUYAMA Warranty
Additional information : Register your winch at www.portablewinch.com and get 1 EXTRA YEAR of warranty for FREE !
GTIN / EAN13: 690581022006
Specification for PCW4500 Petrol Pulling Winch 1200kg Ref: 167-2-6
| Manufacturer |
PORTABLE WINCH |
| Max Pulling Capacity - Single Line |
1200kg (2,650 lb) |
| Max Pulling Capacity - Double Line |
2400kg (5.300 lb) |
| Max Lifting Capacity |
Not Rated For Lifting |
| Progress Capture System |
Stainless steel plates and cleat |
| Installed Capstan Size |
76mm |
| Optional Drum |
No optional drum available for this model |
| Speed with Installed Capstan |
12.2 m/min (40' / min) |
| Rope |
Low stretch double braided polyester required for operation (extra cost) |
| Rope Length |
Unlimited |
| Minimum Rope Capacity |
2500kg (5,500 lb) |
| Rope Diameter Size |
Min 10mm | Max 13mm | Ideal 12mm |
| Engine/Motor |
MARUYAME 50cc Engine (2 Stoke) |
| Powered By |
Petrol (50:1 Petrol/oil - mix) |
| Drive/ Clutch |
Centrifugal |
| Gearbox |
Aluminium alloy. Heat treated 3-stage helical & spur gears. Mounted on ball bearings. Oil bath lubrication. |
| Gear Ratio |
200:1 |
| Brake |
Anti-reversing roller clutch bearing |
| Dry Weight |
13kg (28.5 lb) |
| Dimensions (overall) |
43 cm x 33 cm x 29 cm |
| GTIN / EAN13 |
690581022006 |
| Warranty Private Use |
5 Years |
| Warranty Commercial Use |
1 Year |
| Certification |
CE / UK CA |
