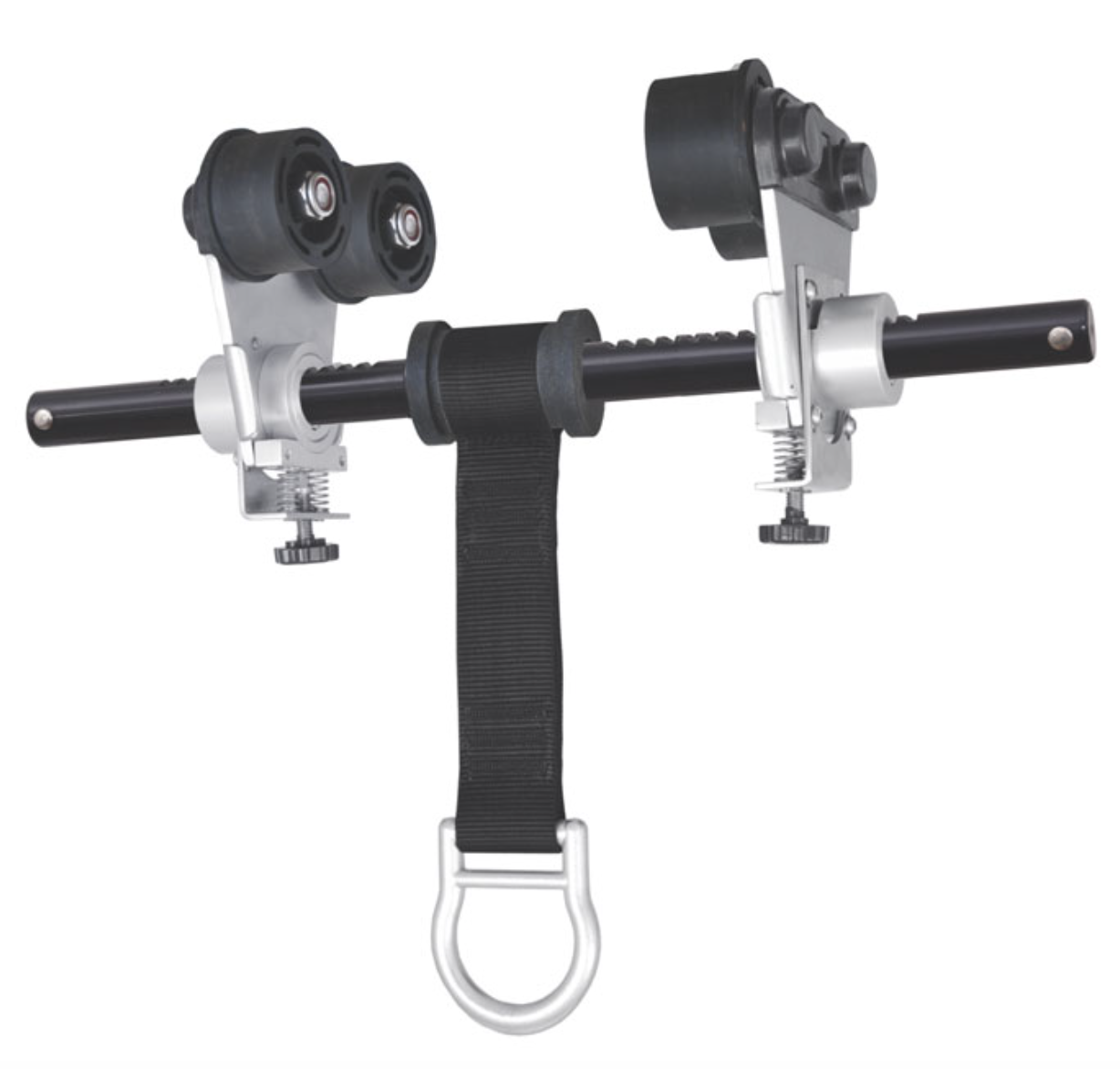

Dielectric Beam Anchor Trolley
- 1 person application.
-
Beam Range: 80mm to 250mm.
-
Resistance: 12 kN.
-
Breaking Strength: 23 kN.
-
Max Dielectric Resistance: 30 kV.
Conformity: BS EN 795 Type B.
Material: /
This product enables smooth gliding on beams with horizontal mobility. Dielectric materials are non-conductive, highly polarized electrical insulators.
The Dielectric range was designed to protect operators working in an environment with potential electric hazards. This range allows the wearer to be protected against an accidental contact with a current (in combination with appropriate equipment: gloves, helmet, shoes/boots, clothes). All the metal parts are electrically insulated thanks to a special polymer that can withstand a maximal voltage of 14 kV.
