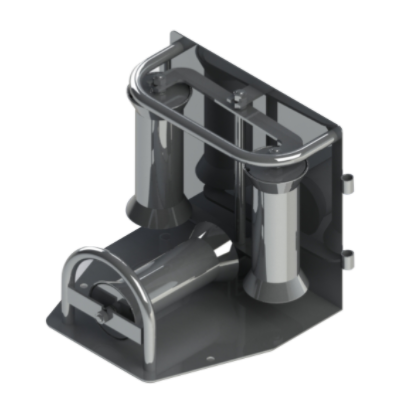

Corner Roller Ground Plate with design to suit up to 120mm diameter cables with a maximum load of 500kg
- Suitable for cables up to 120mm diameter.
- Maximum payload of 500kg.
- Manufactured in high strength steel construction with galvanised finish.
- Water proof ball bearings which are protected against dirt.
- Can be joined using pins.
- Movable freely depending on cable direction.
- The two vertical rollers can pivot by about 15 degrees, which provides the user with more angular convenience.
Spec
Production Code |
124-3-6 |
Payload (kg) |
500 |
Max. Diameter (mm) |
120 |
Weight (kg) |
13,00 |
Length (mm) |
370 |
Width (mm) |
325 |
Height (mm) |
270 |
