Description

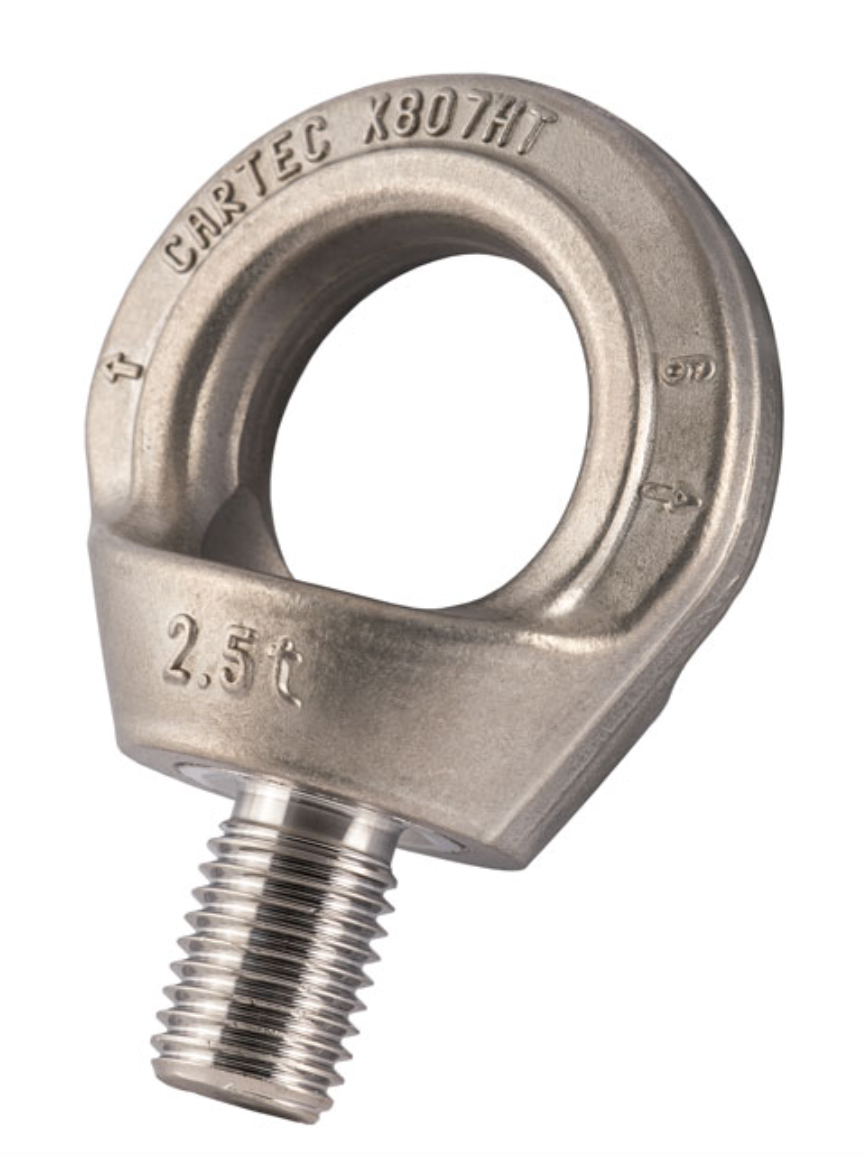

Cartec Grade 6 Stainless Steel Rotating Eyebolt

  • Material: Grade 6 stainless steel, AISI 316L
  • Finish: Surface blasted for a uniform, smooth finish
  • Orientation: Can be oriented 360º
  • Captive Screws: Ensures secure fastening
  • Axial Pull: Allows for a variation of +/- 5º with a 10% decrease in capacity
  • Markings: Clearly marked with CE, W.L.L, material grade, manufacturer's ID, product ID mark, and traceability code
  • Usage Note: Not suitable for rotation under load
  • Support: Full CAD support available upon request
  • Certification: Declaration of Conformity (DoC)

      Spec

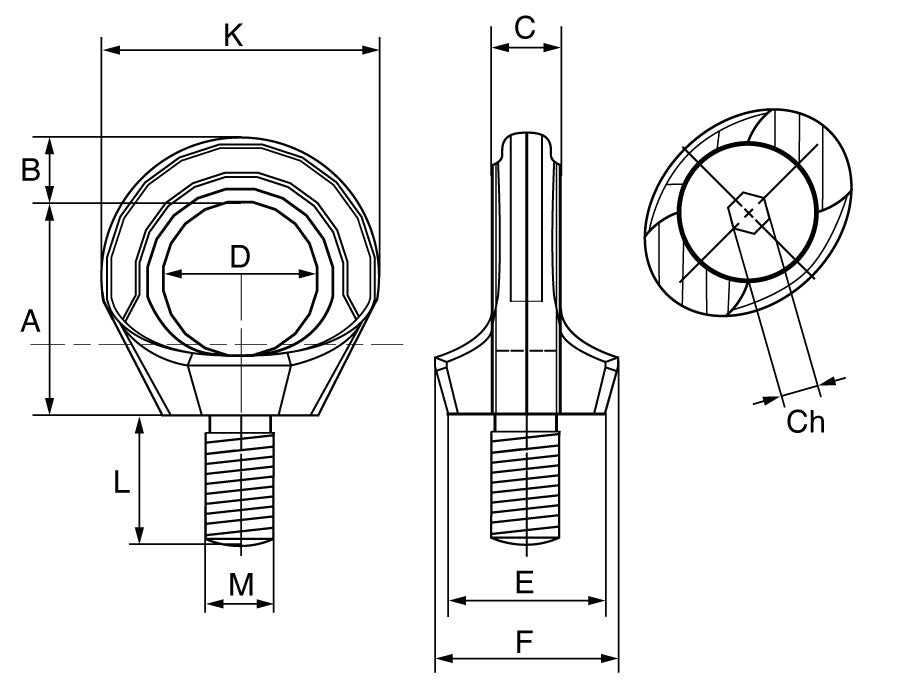

      SKU M L A B C D E F K Ch
      mm mm mm mm mm mm mm mm mm mm
      286-610-1 M12 18 43 12.5 11.5 30 30 36.5 55.5 8
      286-610-2 M16 24 49.5 14.5 15.7 35 35 41.8 64.5 10
      286-610-3 M20 30 58 16 18 40 42 51.5 74.5 12
      286-610-4 M24 36 69 20.5 22 49 50 58 90 12



      SKU Dia W.L.L. M.P.F. M.B.F. Weight
      mm t kN kN kgs
      286-610-1 M12 0.5 10 20 0.2
      286-610-2 M16 1 20 40 0.35
      286-610-3 M20 2 40 79 0.6
      286-610-4 M24 2.5 50 99 1
