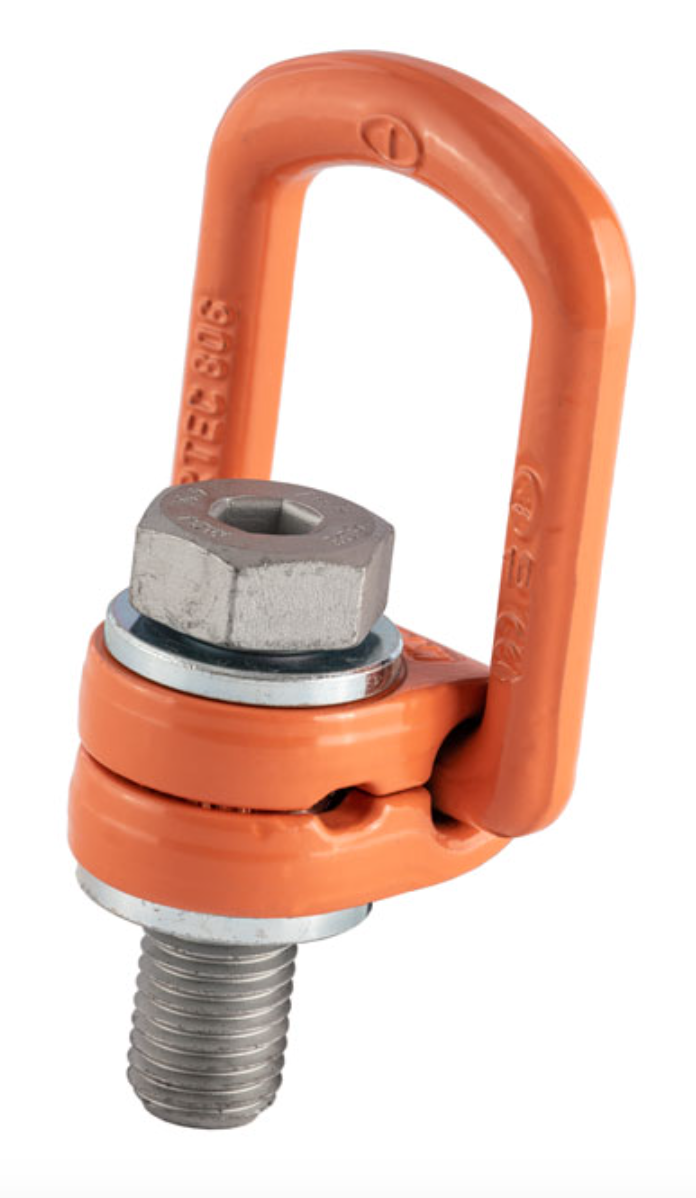

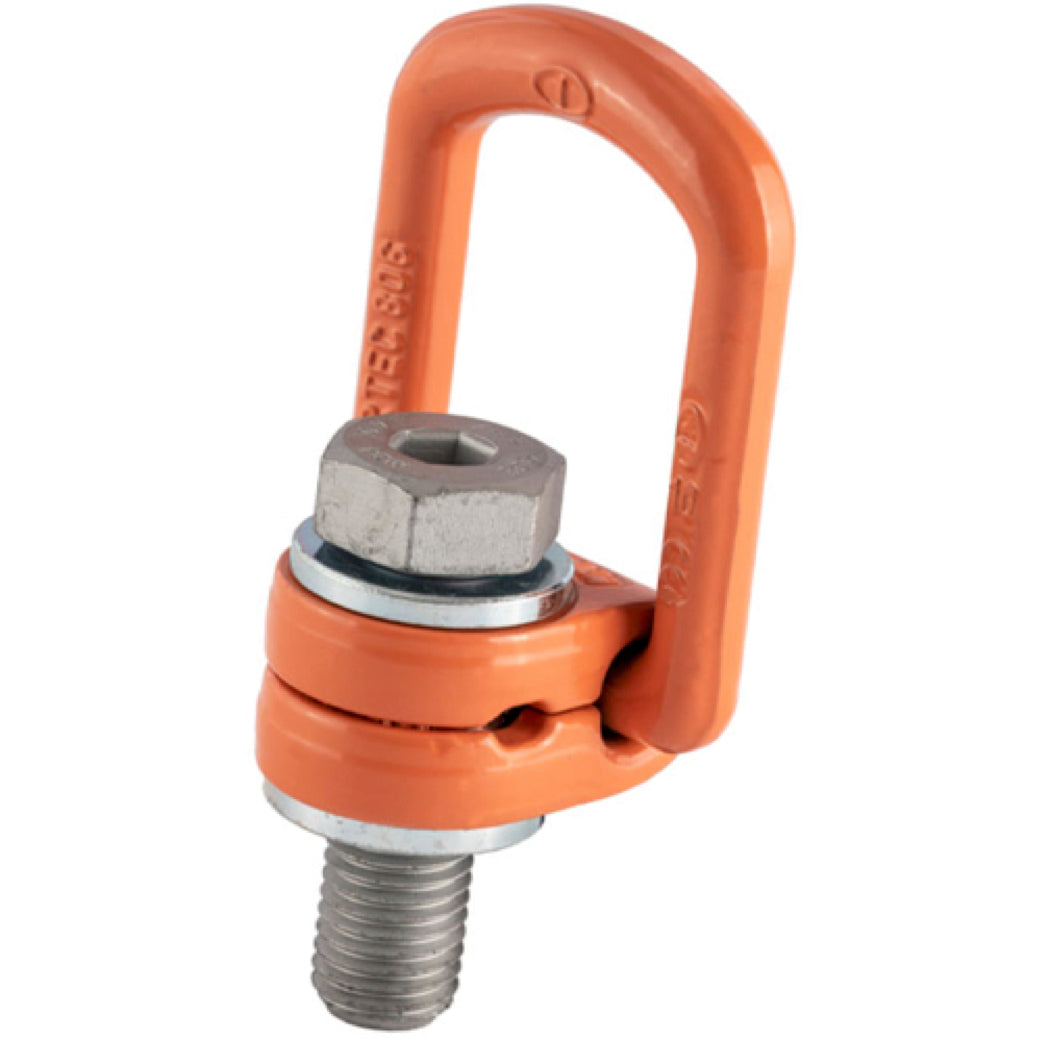

Cartec Grade 10 Rotating Eyebolt with Clamp - 806X

Cartec Grade 10 Rotating Eyebolt with Clamp - 806X

SKU: 286-612-1

Read More
Regular price £88.20
Regular price RRP Sale price TODAY'S PRICE £88.20

In stock

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

Cartec Grade 10 Rotating Eyebolt with Clamp - 806X
  • Grade 10 Alloy Steel.
  • Pink painted finish.
  • Designed, tested & certified in compliance with the technical directives GS-OA15-04 – EN 1677.
  • Minimum breaking load is 4 times the W.L.L.
  • Can be oriented at 360°.
  • The screw is protected with the GEOMET system which guarantees lasting protection in time.
  • Captive screws.
  • Eyebolts M36 and above are manufactured to allow use with universal hexagonal keys.
  • Not suitable for rotation under load.
  • Full CAD support available upon request.
  • Certification - Declaration Of Conformity
 Please note, delivery of Cartec Grade 10 Lifting & Lashing Points can take up to three weeks from order.

      Spec

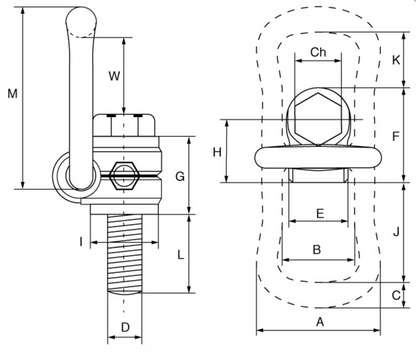

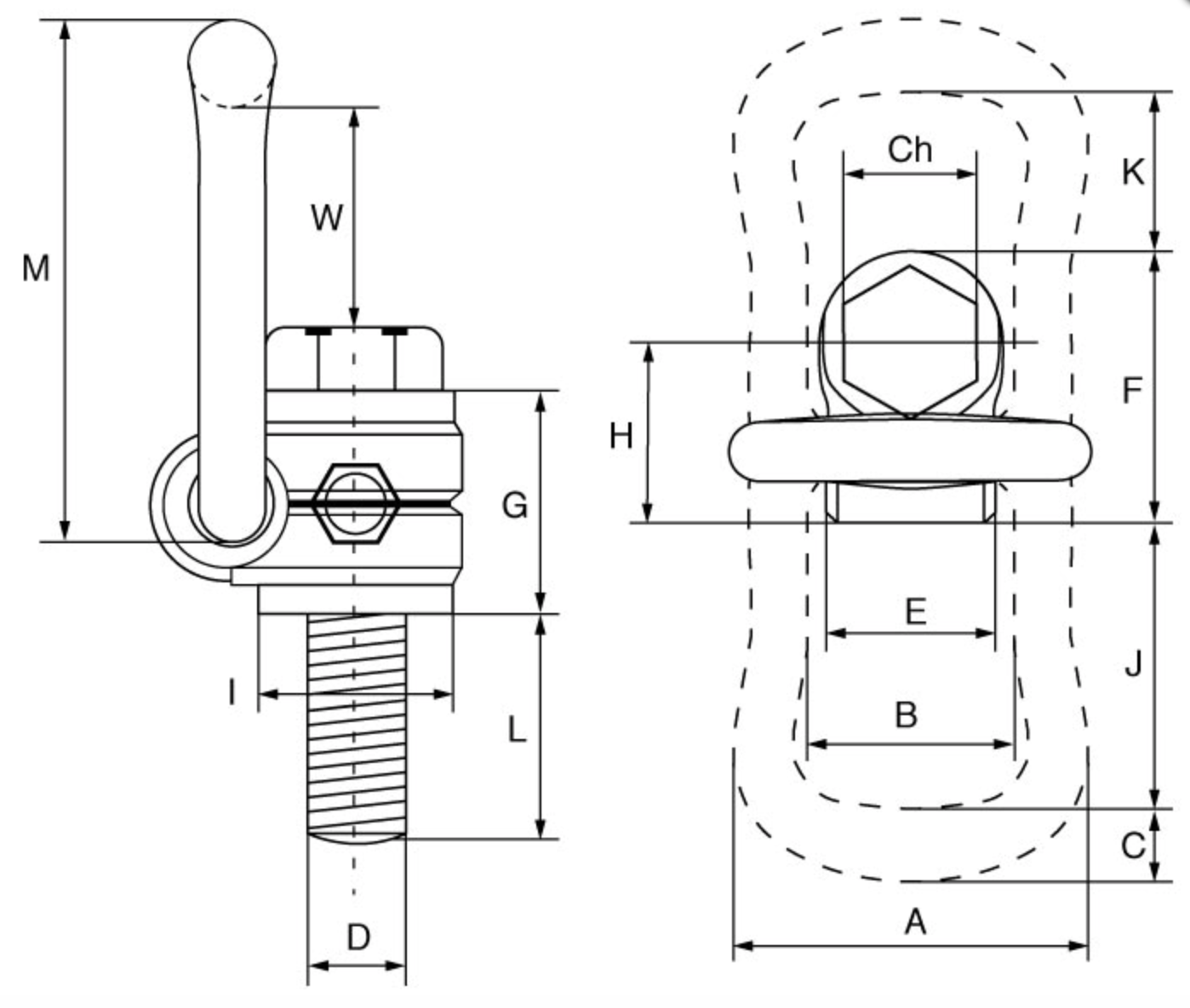

      SKU D L W.L.L. A B C M E F G
      mm mm t mm mm mm mm mm mm mm
      286-612-1 M8 15 0.3 57 34 10 78 24 41 30
      286-612-2 M10 15 0.63 57 34 10 78 24 41 30
      286-612-3 M12 23 1 66 38 13.5 85 30 50 36
      286-612-4 M16 24 1.5 66 38 13.5 85 30 50 36
      286-612-5 M20 31 2.5 87 55 16 111 48 68 44
      286-612-6 M24 37 4 87 55 16 111 48 68 44
      286-612-7 M30 45 5 109 66 22.5 145 54 91 65
      286-612-8 M36 50 7 109 66 22.5 145 54 91 55
      286-612-9 M36 59 8 109 78 28 190 62 108 81
      286-612-10 M42 75 10 136 78 28 190 62 108 75
      286-612-11 M42 62 15 169 97 36 242 68 131 89
      286-612-12 M48 71 20 169 97 36 242 68 131 89



      SKU H I J K W Ch Torque Weight
      mm mm mm mm mm mm mm kgs
      286-612-1 26.5 25 51 35 43 13 30 0.275
      286-612-2 26.5 25 51 35 42 17 60 0.29
      286-612-3 33 32 52 28 40 19 100 0.5
      286-612-4 33 32 52 28 38 24 150 0.51
      286-612-5 42.5 45 71 36 54 30 250 1.25
      286-612-6 42.5 45 71 36 51 36 400 1.3
      286-612-7 58.5 60 86 47 62 46 500 3.25
      286-612-8 58.5 60 86 43 60 55 700 3.3
      286-612-9 72.5 70 115 74 88 55 800 5.9
      286-612-10 72.5 70 115 70 86 65 925 6.5
      286-612-11 87.5 85 151 97 121 65 1500 11.2
      286-612-12 87.5 95 151 93 117 75 2000 11.6
