The Signal Injector is an accessory that allows the Signal Generator signal to be safely applied to an electrical system via a conventional 3-pin power socket.

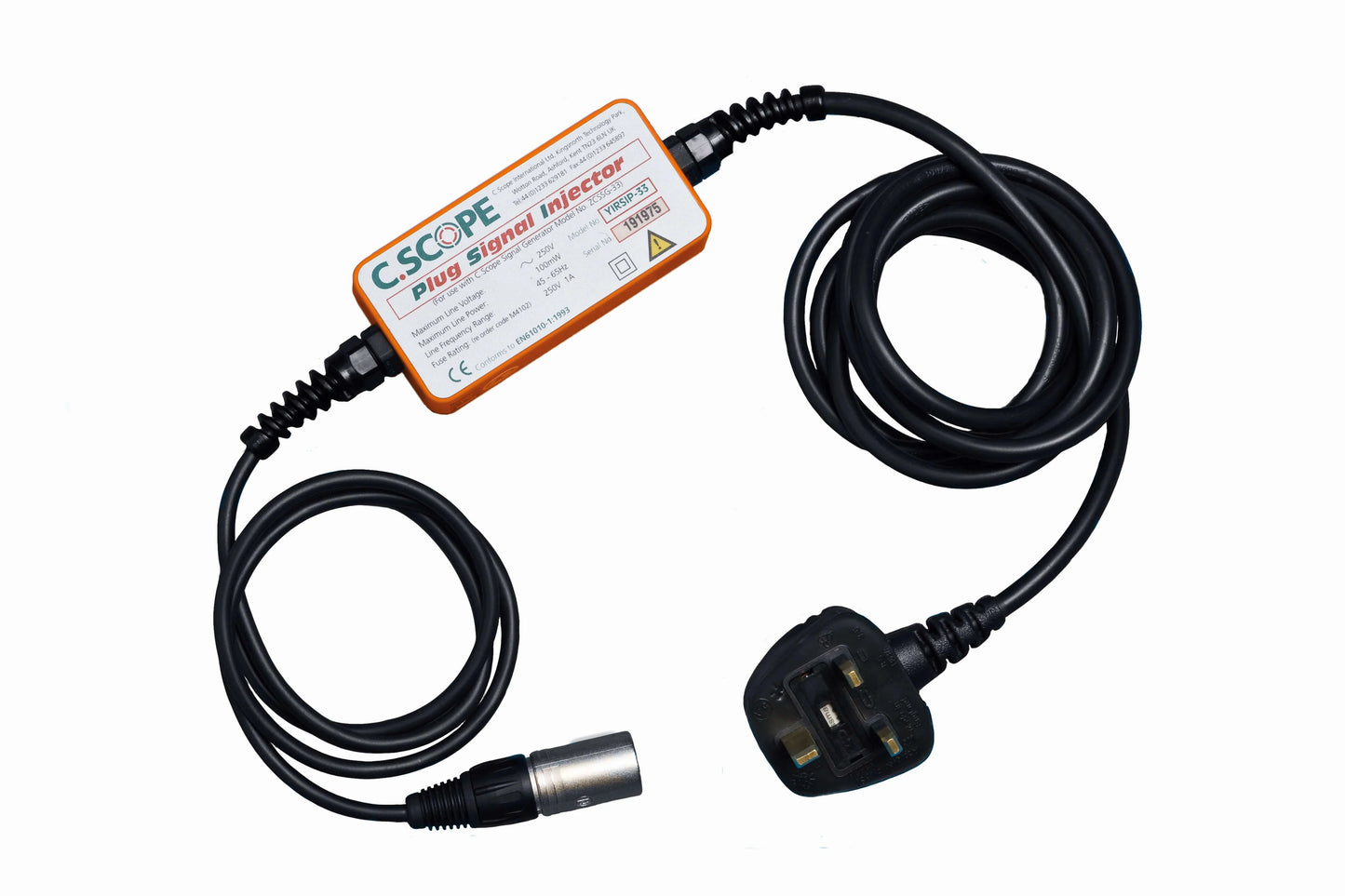

The C.Scope Signal Injector is an accessory which when connected to a C.Scope Signal Generator or Transmitter applies a signal safely to an electrical system via a conventional 3-pin power socket. This signal will then be detectable on the buried supply cable outside the building and any supply cables within the property.
To transmitted signal can then be detected by a C.Scope Cable Avoidance Tool or Precision Pipe and Cable Locator.
Product Name
Signal Injector
Part No.
YIRIP-33-8
Dimensions
Box: 100mm x 50mm x 25mm
Input Lead: 1m
Output Lead: 1.5m
Construction
Encapsulated, robust housing
Moisture / dust resistant to IP54
Electrical Output (Mains side)
Electrical Isolation: Class II (Double Insulated)
Mains Plug Connector: UK, 3 pin to BS1363, load between Live and Earth or 2 pin European Shuko style
Maximum Voltage: 250 V rms
Maximum Load: <10mA (predominantly capacitive)
Frequency range: 45-65 Hz
Electrical Input (Signal Generator side)
Connector: 3 pin XLR male (industry standard)
Maximum Voltage: 42 V rms
Maximum Power: <250mW when driven from SGA or SGV
Input Impedance: 2000 Ohms
Frequency: 33 kHz
