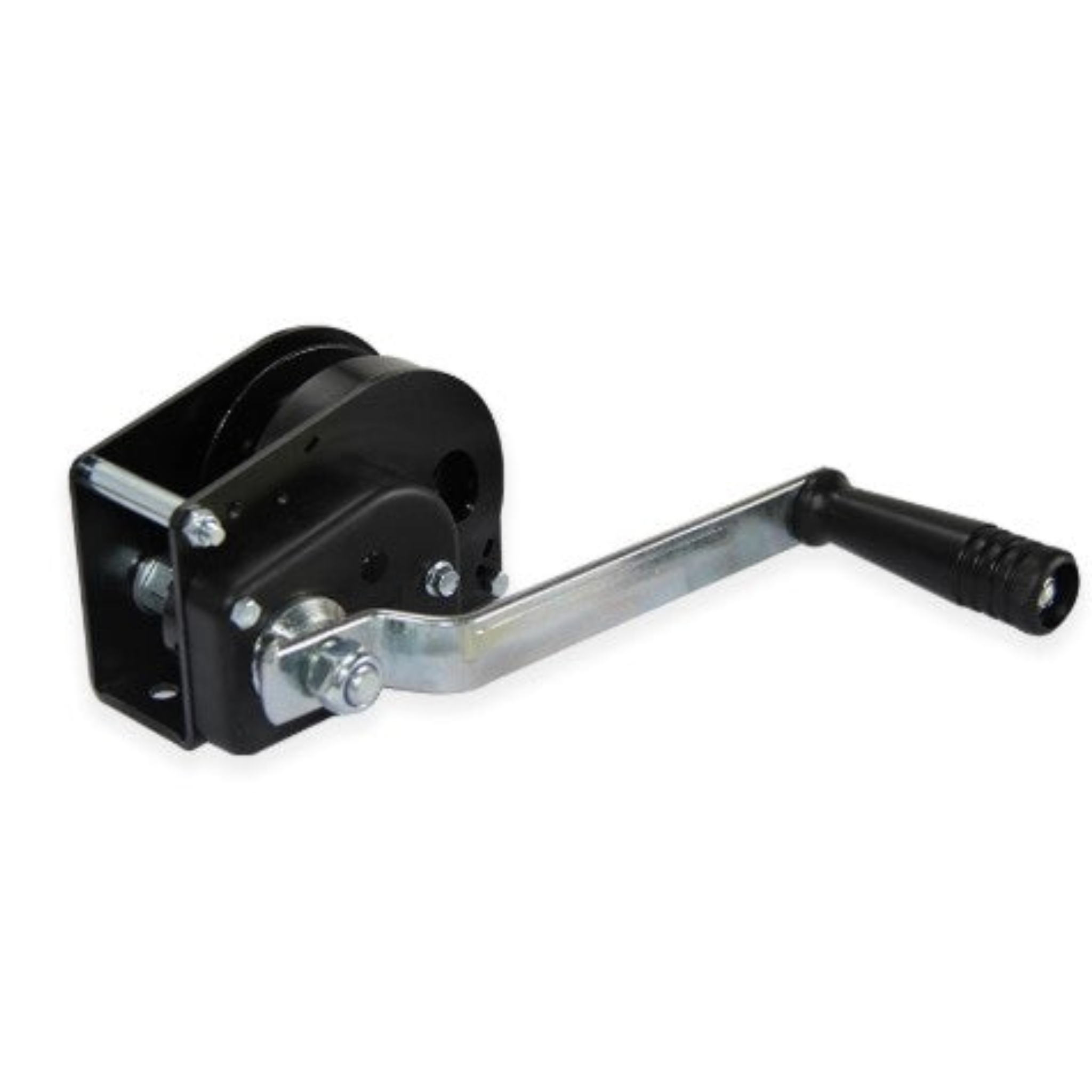

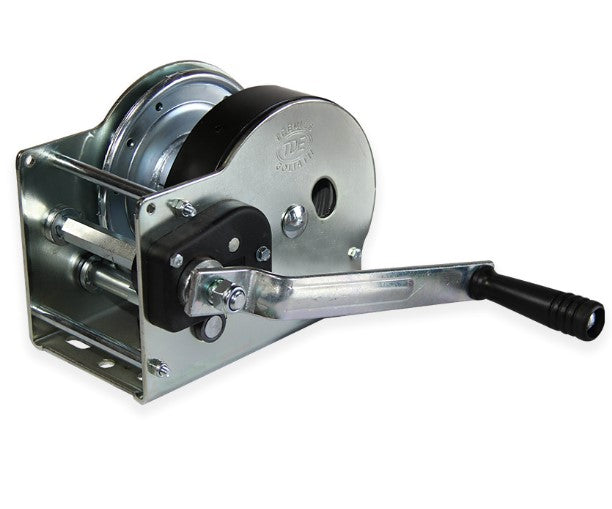

AFD, Goliath Zinc Plated Hand Winch
Goliath AFD winch
Self-braking hoist winches for cable:
- Lifting up to 1180 kg
- Hauling up to 2500 kg
- Quick cable fixing, cable clamp included.
- Enveloping frame

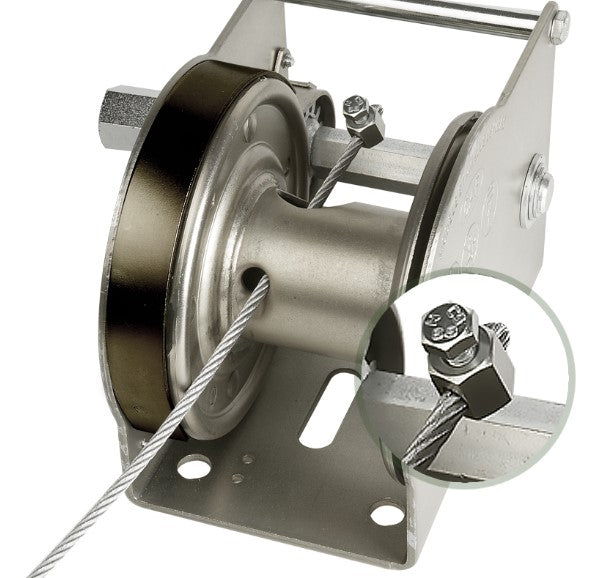

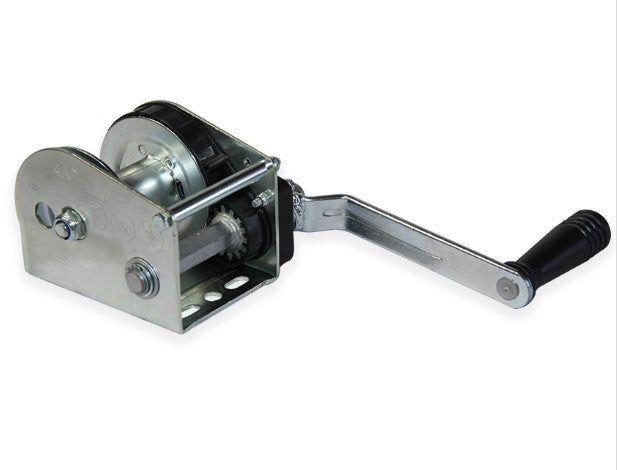

- Quick cable fixing

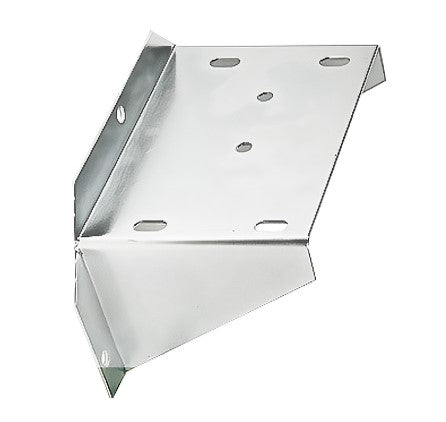

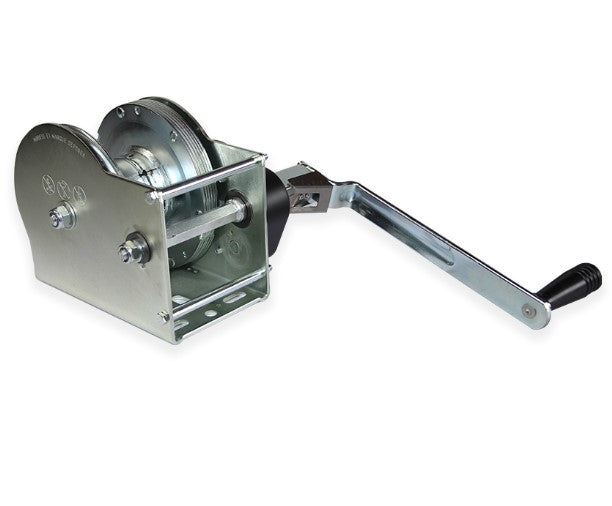

- Can be installed as a column or base mounted winch, or can wall mounted when purchased with optional wall mounting plate.
- Lightweight
- Inexpensive
- High efficiency through spur gearing
- Smooth running
- All components are zinc plated
- Automatic load pressure brake holds the load. The load can be held without any action from the handle
- Enclosed and protected stamped gears
- For use with wire rope, easy cable mounting without drum removal

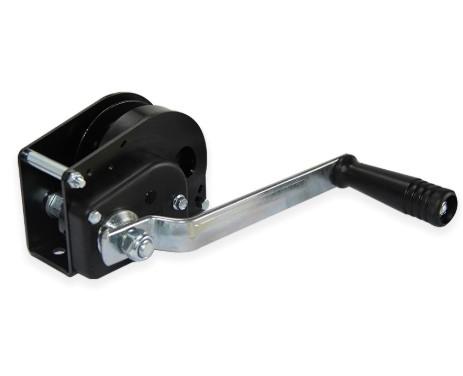

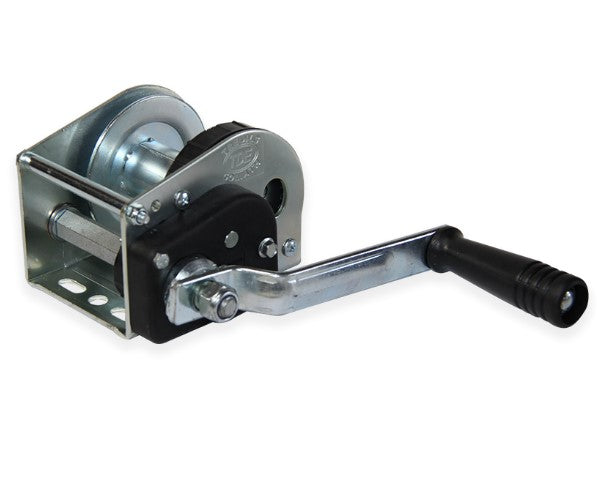

** 4AFMD is supplied in Black finish
Complies with BS EN 13157
CE and TUV Security Accreditation

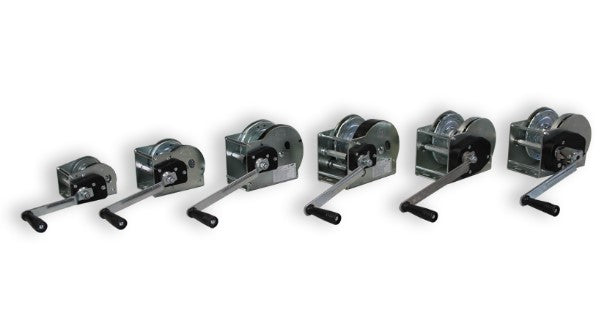

Models available 4AFMD, 4AFD, 6AFD, 8AFD, 12AFD, 20AFD
**As Standard supplied without Wire Rope - Prices available on request**

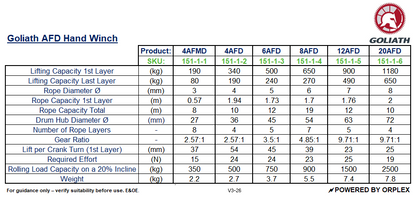

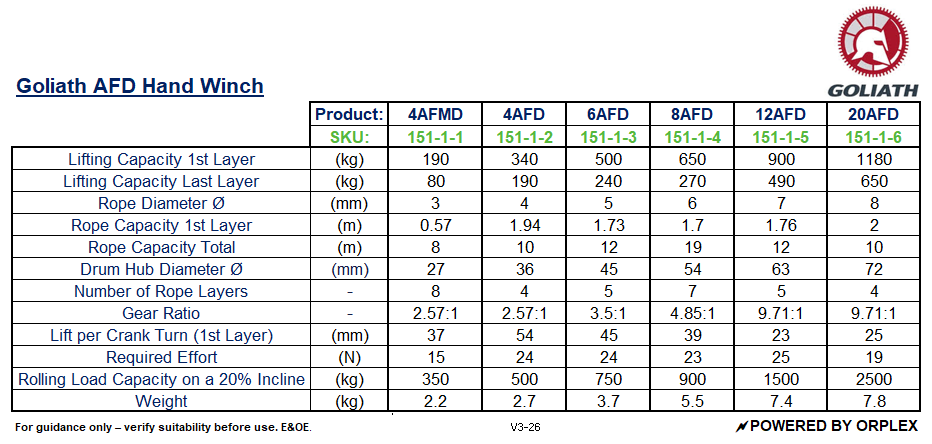

Spec
Haulage load capacity is based on a 20% incline
Minimum load for the brake to function = 10kg
Type |
4AFMD-190 |
4AFD-340 |
6AFD-500 |
8AFD-650 |
12AFD-900 |
20AFD-1180 |
Order Code |
151-1-1 |
151-1-2 |
151-1-3 |
151-1-4 |
151-1-5 |
151-1-6 |
Lifting Capacity 1st Layer: |
190 Kg |
340 Kg |
500 Kg |
650 Kg |
900 Kg |
1180 Kg |
Lifting Capacity Last Layer: |
80 Kg |
190 Kg |
240 Kg |
270 Kg |
490 Kg |
650 Kg |
Haulage Capacity: |
350 Kg |
500 Kg |
750 Kg |
900 Kg |
1500 Kg |
2500 Kg |
Rope Capacity 1st Layer: |
1 m |
2 m |
2 m |
2 m |
2 m |
2 m |
Rope Capacity Total: |
8 m |
10 m |
12 m |
19 m |
12 m |
10 m |
Rope Diameter: |
3 mm |
4 mm |
5 mm |
6 mm |
7 mm |
8 mm |
No. of Layers: |
8 |
4 |
5 |
7 |
5 |
4 |
Ratio: |
2.57:1 |
2.57:1 |
3.5:1 |
4.85:1 |
9.71:1 |
9.71:1 |
Required Effort: |
15 N |
24 N |
24 N |
23 N |
25 N |
19 N |
Weight: |
2.2 Kg |
2.7 Kg |
3.7 Kg |
5.5 Kg |
7.4 Kg |
7.8 Kg |
