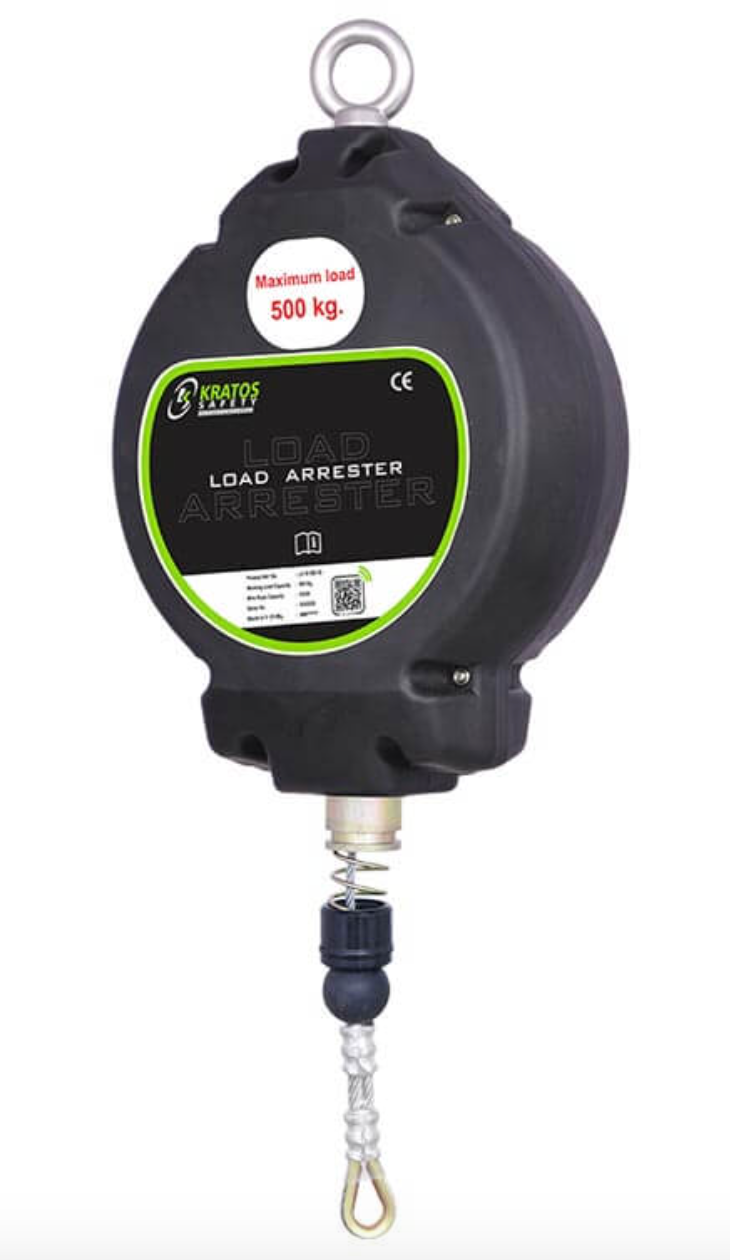

500kg Polyamide Alloy Steel Wire Rope Load Arrester
The cable load arresters are used to stop the failing of a load (basketball hoop, ramp lighting, industrial machines etc…) for a short distance in case of:
- A break of chain or cable for hoisting the load.
- A failure of the retaining elements of the load.
- Load arresters designed to stop the fall of a load with a maximum weight of 500kg.
- Length available: 10m & 15m.
- Casings made up of high impact strength polymer, nearly indestructible; to prevent breakage.
- Galvanised steel wire rope 6mm dia.
- Multi-ratchet quick fall arrest system.
- Integrated shock absorber, which reduces the efforts on the structure.
- Reduced fall arrest distance.
- Maximum 60 cycles per day.
Spec
SKU
|
Length |
Load Capacity |
Weight |
|
m |
kgs |
kgs |
286-1710-6 |
10 |
500 |
11.65 |
286-1710-7
|
15 |
500 |
12.20
|
286-1710-8 |
20 |
500 |
|
