115V Capstan Winch CW 800 E Including Steel Trolley Mounting Rail And Strap - Max Pulling Force 800kg

Runpotec

115V Capstan Winch CW 800 E Including Steel Trolley Mounting Rail And Strap - Max Pulling Force 800kg

115V Capstan Winch CW 800 E Including Steel Trolley Mounting Rail And Strap - Max Pulling Force 800kg

SKU: 123-1-49

Skip to product information
1 of 10

Runpotec

115V Capstan Winch CW 800 E Including Steel Trolley Mounting Rail And Strap - Max Pulling Force 800kg

115V Capstan Winch CW 800 E Including Steel Trolley Mounting Rail And Strap - Max Pulling Force 800kg

SKU: 123-1-49

Read More
Regular price £2,496.00
Regular price RRP Sale price TODAY'S PRICE £2,496.00

In stock (1)

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

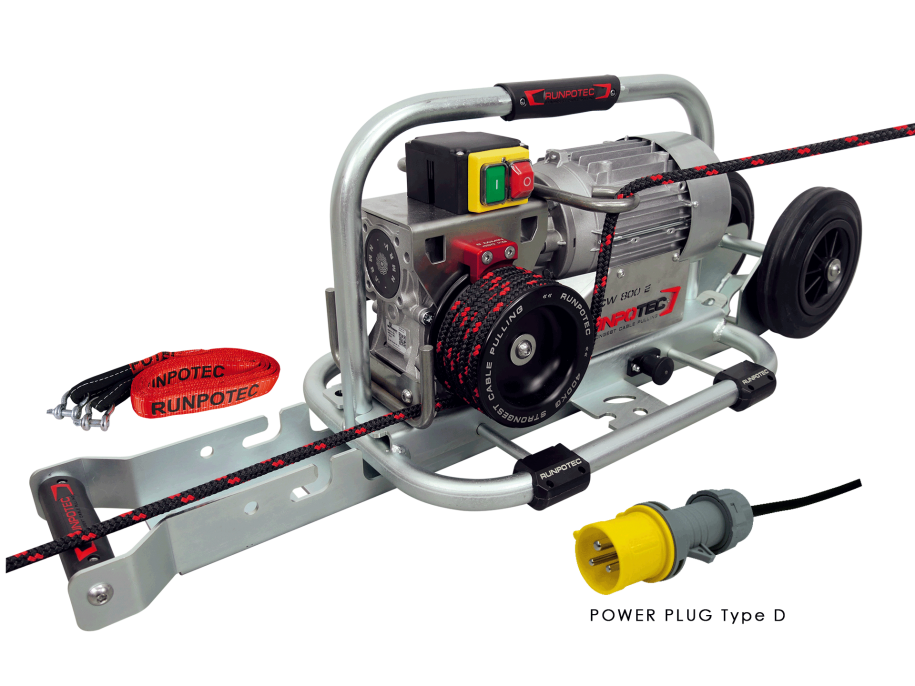

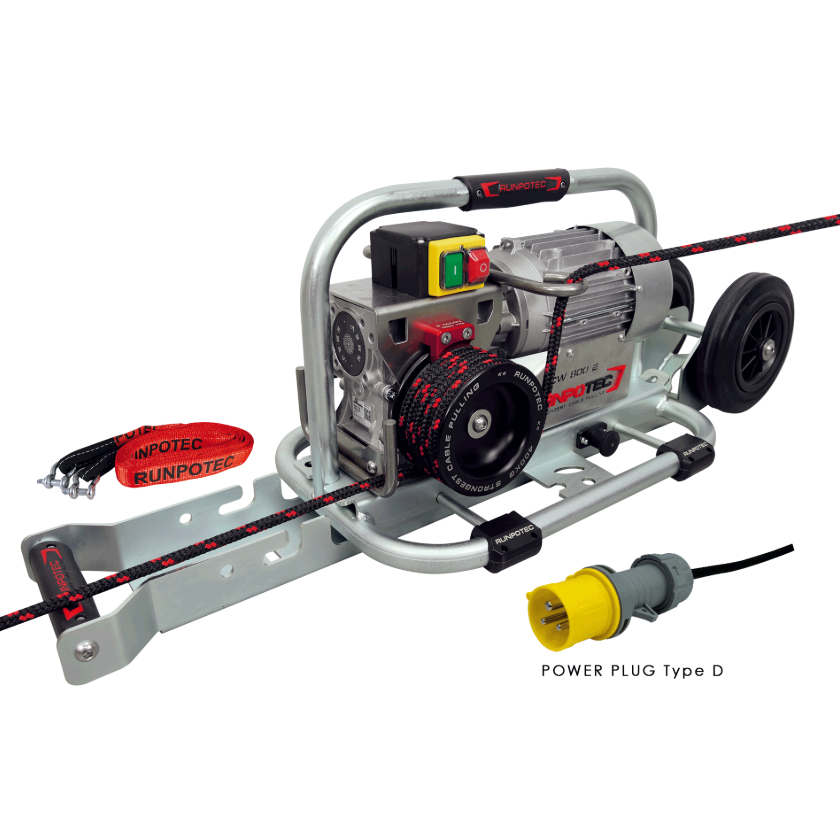

115V Powered Capstan Winch including Steel Trolley Mounting Rail And Strap

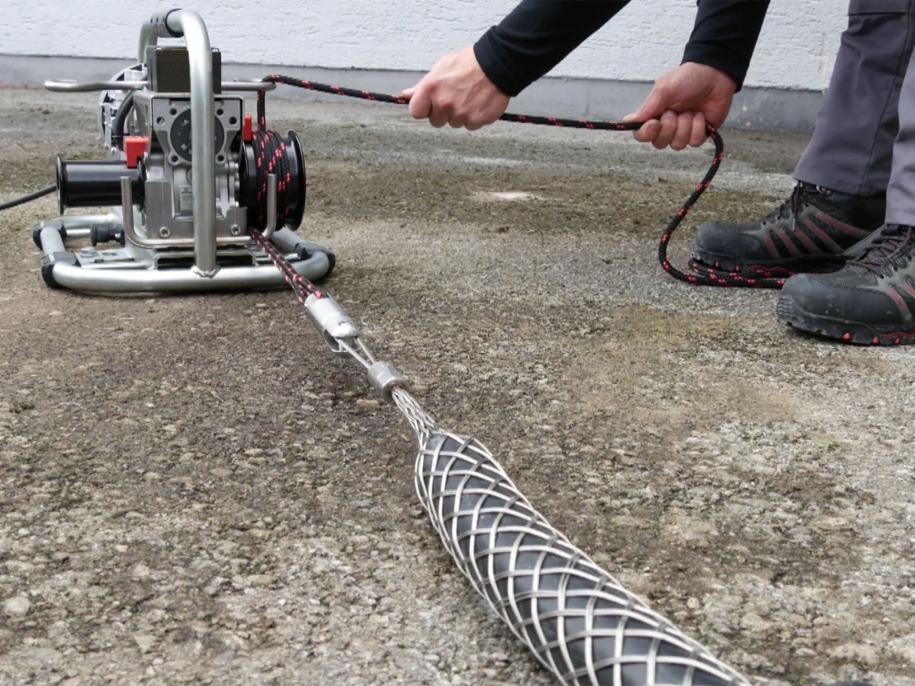

Ideally suited for horizontal pulling of one or more cables. Where several persons are needed for higher pulling loads on many sites, one person is sufficient to pull in the cables with the CW 800 E-115V capstan winch by RUNPOTEC with a choice of 800 kg or 400 kg.

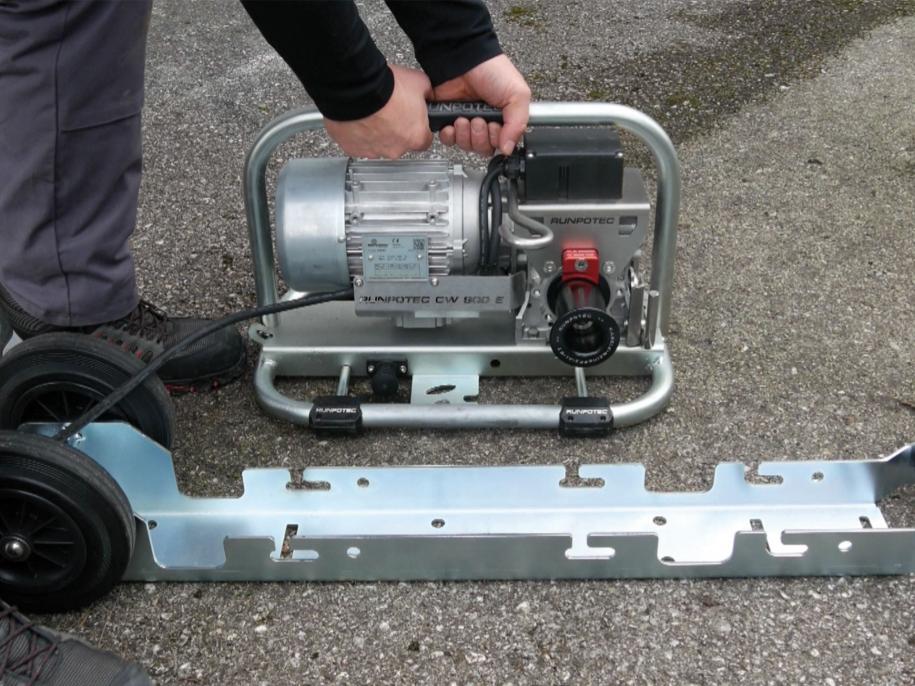

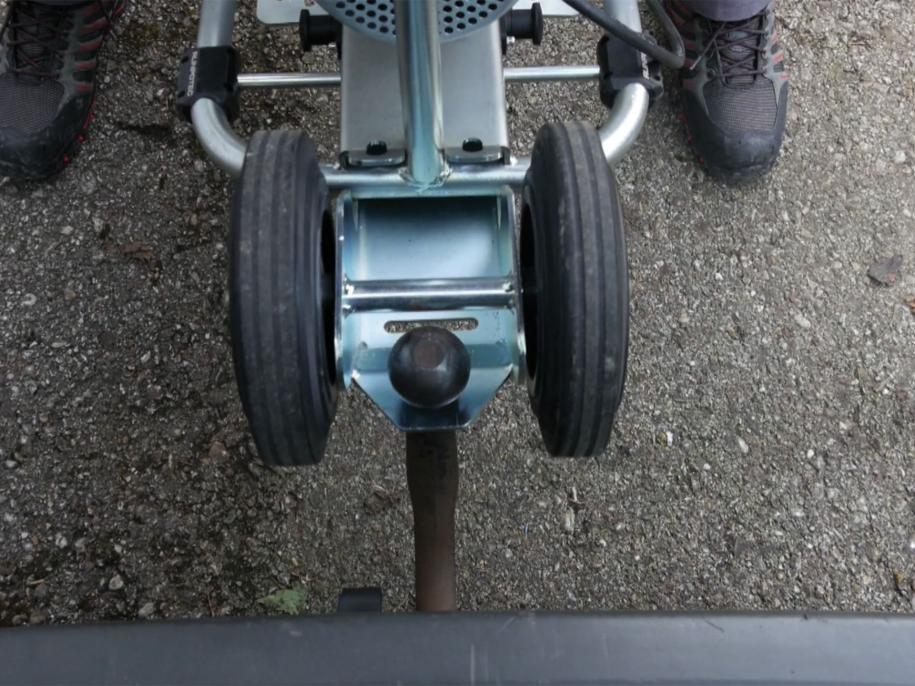

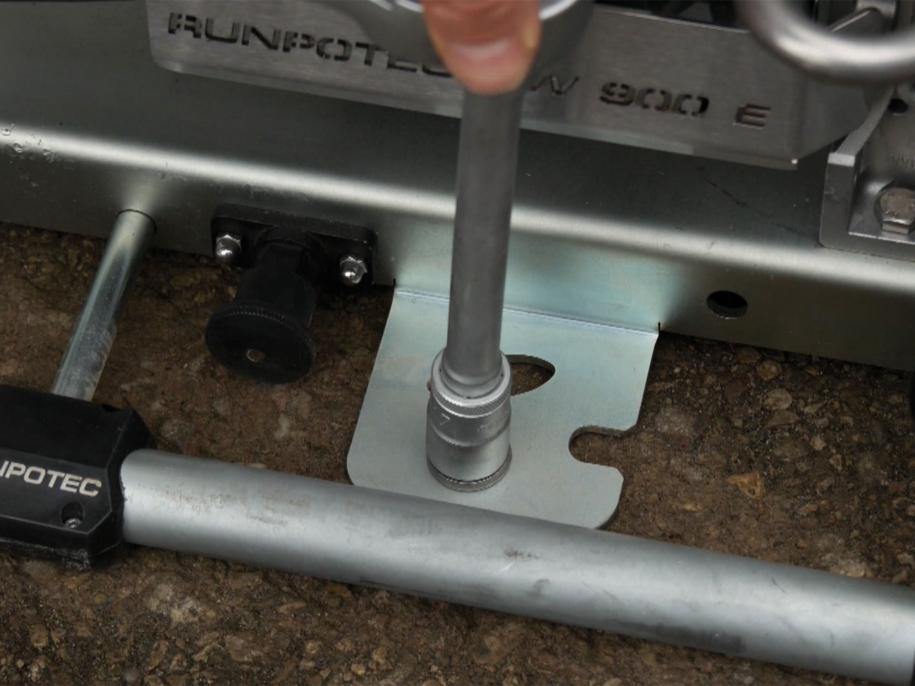

The capstan winch can be fixed via the mounting holes or attached to solid objects with the enclosed strap. The trolley mounting rail also offers a very practical fastening option. It can be attached to the trailer hitch of a vehicle through the special coupling opening. It is also possible to mount the rail horizontally or vertically, and then simply hook in the CW 800 E-115V capstan winch and fasten it using the two fixing bolts.

The whole unit only weighs around 41kgs, making it suitable to move around to different locations on site.

NOTE - THIS PRODUCT HAS A LEADTIME OF 4 TO 5 WEEKS FROM ORDER IF OUT OF STOCK, GENERAL LEAD-TIME IS 2-3 DAYS FROM ORDER

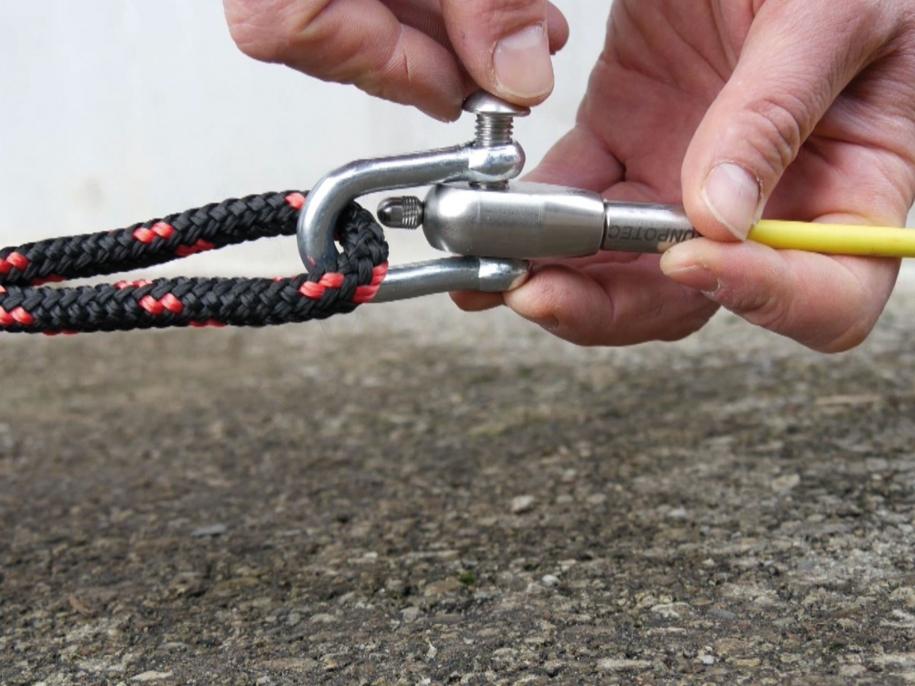

RUNPOTEC recommends the use of Ø 10 mm polyester for the
pulling rope as this has the ideal wrap factor

Safety instructions:
Not suitable for vertical cable pulling, must not be used to carry or lift loads or persons.

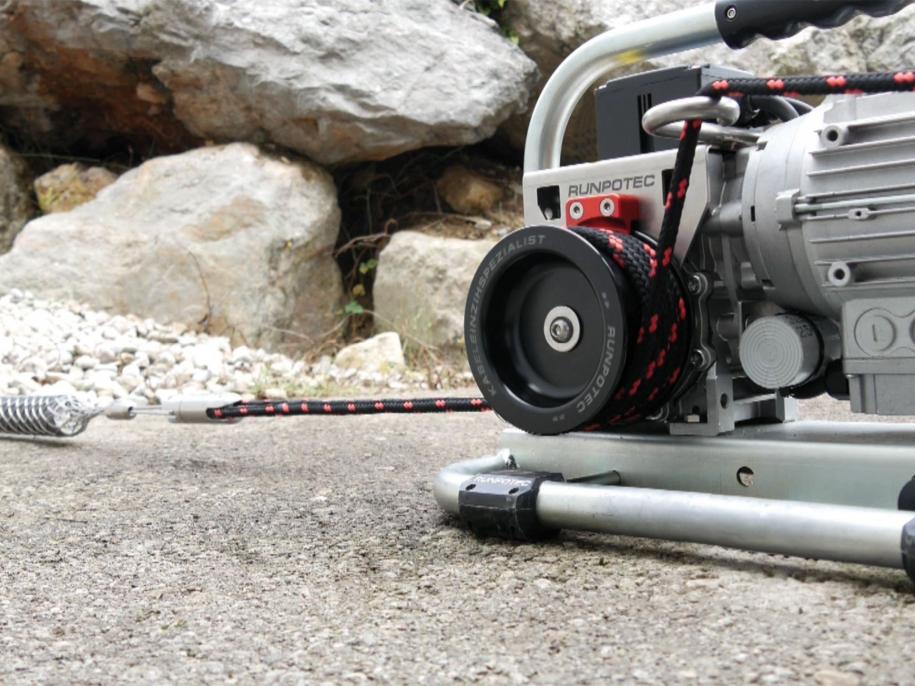

Optimal area of application: for horizontal cable pulling.
Application video: a short, very informative application video can be viewed by scanning the QR code or on www.runpotec.com.
Scope of delivery: capstan winch CW 800 115V with UK Power Plug  including 1x  trolley mounting rail and 1 x 3m strap

ADVANTAGES

    • One person can pull up to 800 kg with the
      CW 800 E capstan winch
    • Selectable traction force or traction speed
      800 kg | 400 kg
    • Small, compact, handy
    • Many mounting options

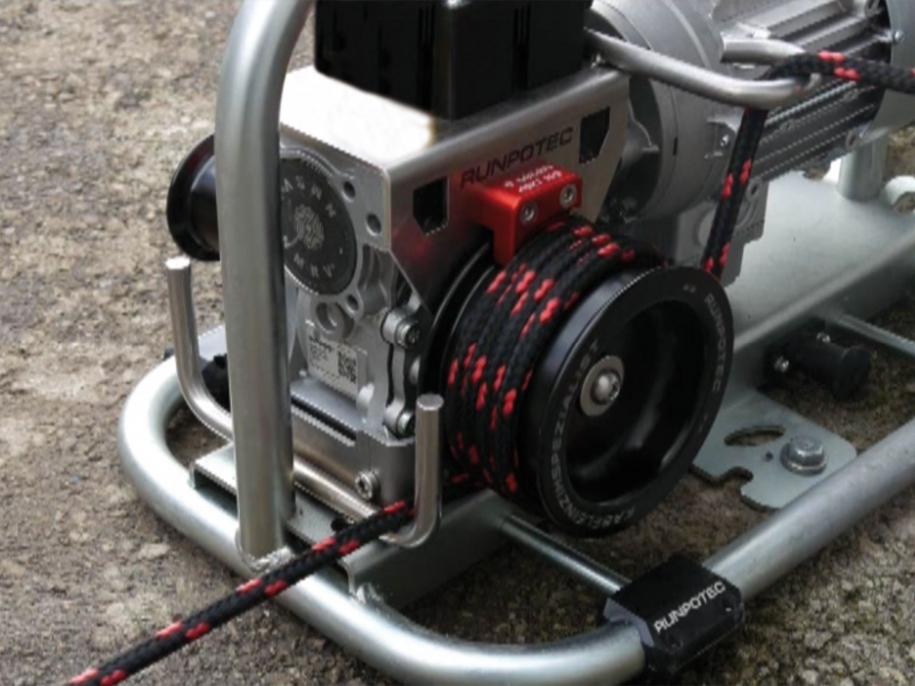

    • Safety rope guide
    • Overload protection

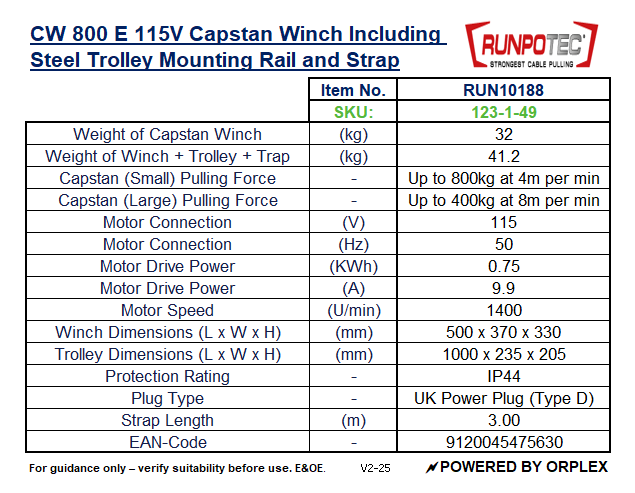

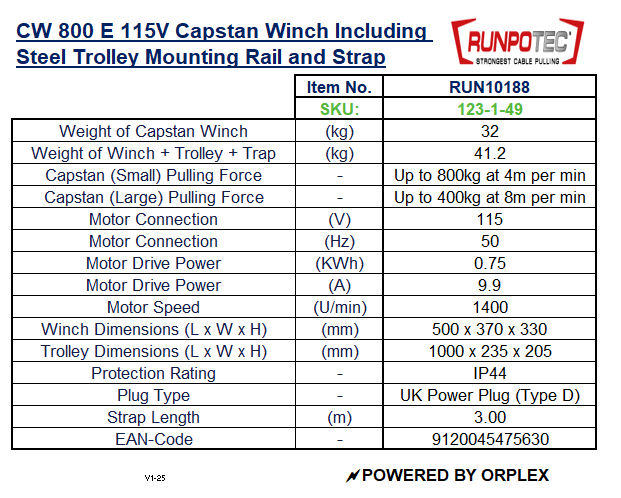

Spec

Dimensions: L 1050 x B 375 x H 360 mm
Weight: 41,20 kg / 90,83 lbs
Strap length: 3 Meter / 9.84 ft.
Motor connection: 115 V / 50 Hz
Motor drive power: 0,75 KW / 9.9 A
Motor speed: 1400 U / min
Capstan (Small) Pulling force: up to 800 kg at 4m per min.
Capstan (Large) Pulling force: up to 400 kg at 8m per min.
Protection rating: IP 44
Further characteristics: UK Power Plug (Type D)
EAN-Code: 9120045477030



Tech Area

Duct rod data sheetProduct Data Sheet


Product Questions & Answers

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Sam Rogers
Casptan Winch CW800E

This Winch is an absolute awesome piece of kit. I cant believe we have not purchased this a long time ago. We managed to Pull in 4x 60m length of 150mm 4 core SWA onto a high level ladder rack consisting of 7x 90 degree bends using Just 3 guys, 1 watching the drum, 1 one the winch and 1 guy watching the cable going in. Rollers were used but this made this task a really easy job.

Highly recommend to anyone looking to pull in cables.

M
Michael Halloran
Very good winch

Pulled in 40m of 150mm 4c HO7 through twin wall duct with ease.
