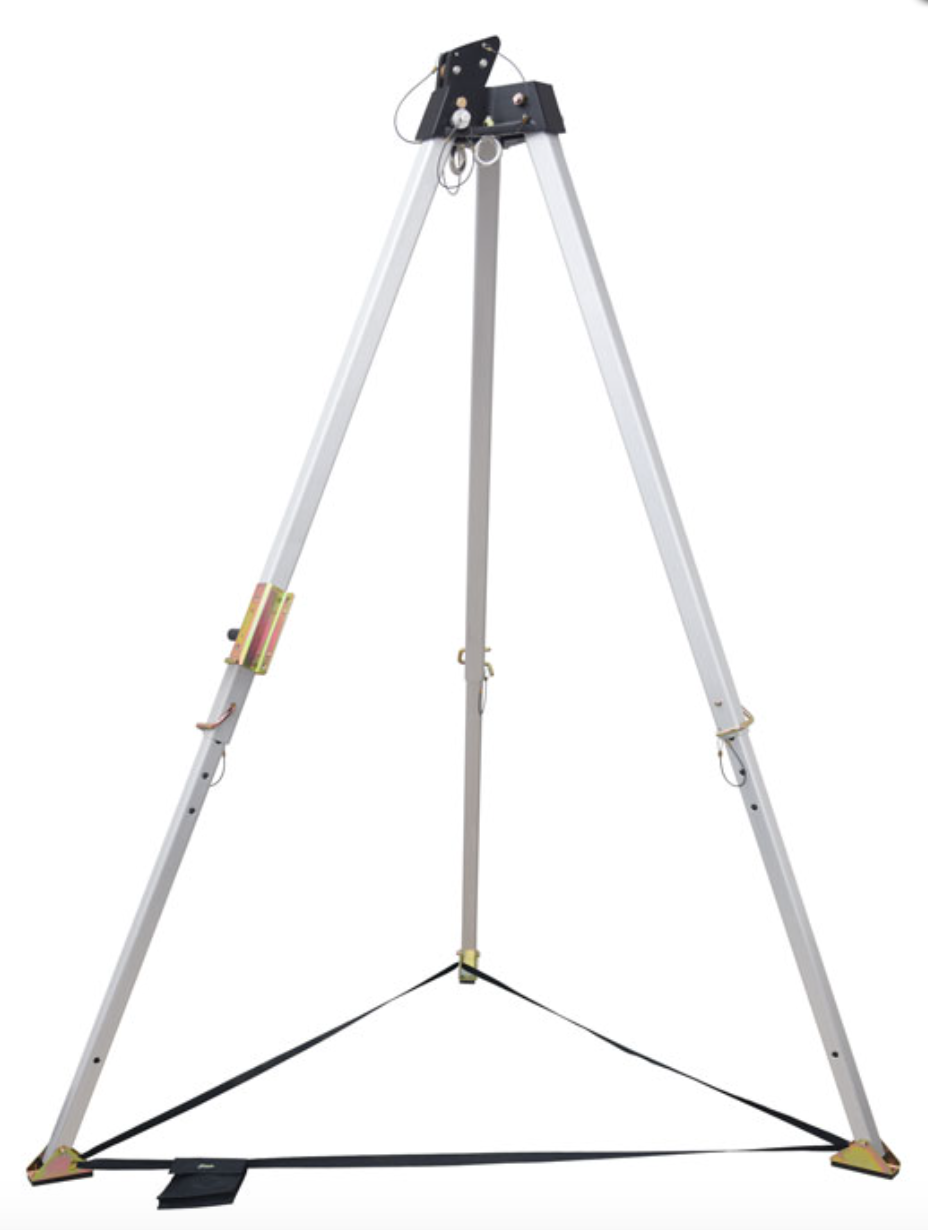

10ft Confined Space Tripod

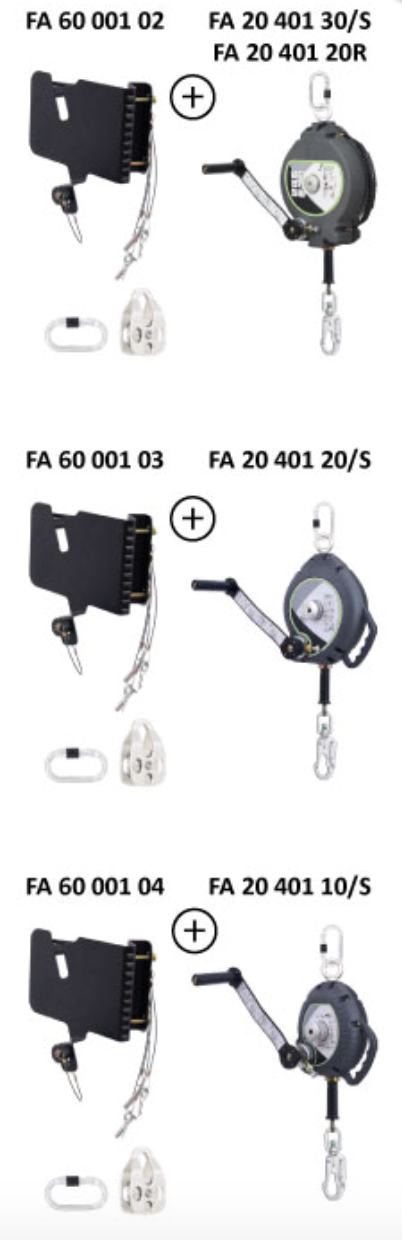

- With two mounted pulleys at the head of the Tripod in the extension of the main leg for passing a cable. Having two auxiliary eye bolts as attachment points. Steel support-shoes provided with rubber sole to increase friction and impart more stability. Every Tripod is provided with inbuilt fixture for attaching our winches 286-1610-7 / 286-1610-9 / 286-1610-52 / 286-1610-53. Every Tripod is provided with Tripod Bag.
-
Adjustable height: 1.9 mtr to 2.9 mtr.
-
Wheelbase: 1.52 mtr to 2.05 mtr.
-
Max Load Capacity: 500 KG under head / 250 KG on leg.
-
Breaking Strength: 20 kN.
-
Resistance: 12 kN.
-
Conformity: BS EN 795 Type B, ATEX Directive 2014/34/EU, Machinery Directive, EN 1808.
-
Material:
